Summary of Contents for F. CORRIVEAU INTERNATIONAL Fire Stove 13

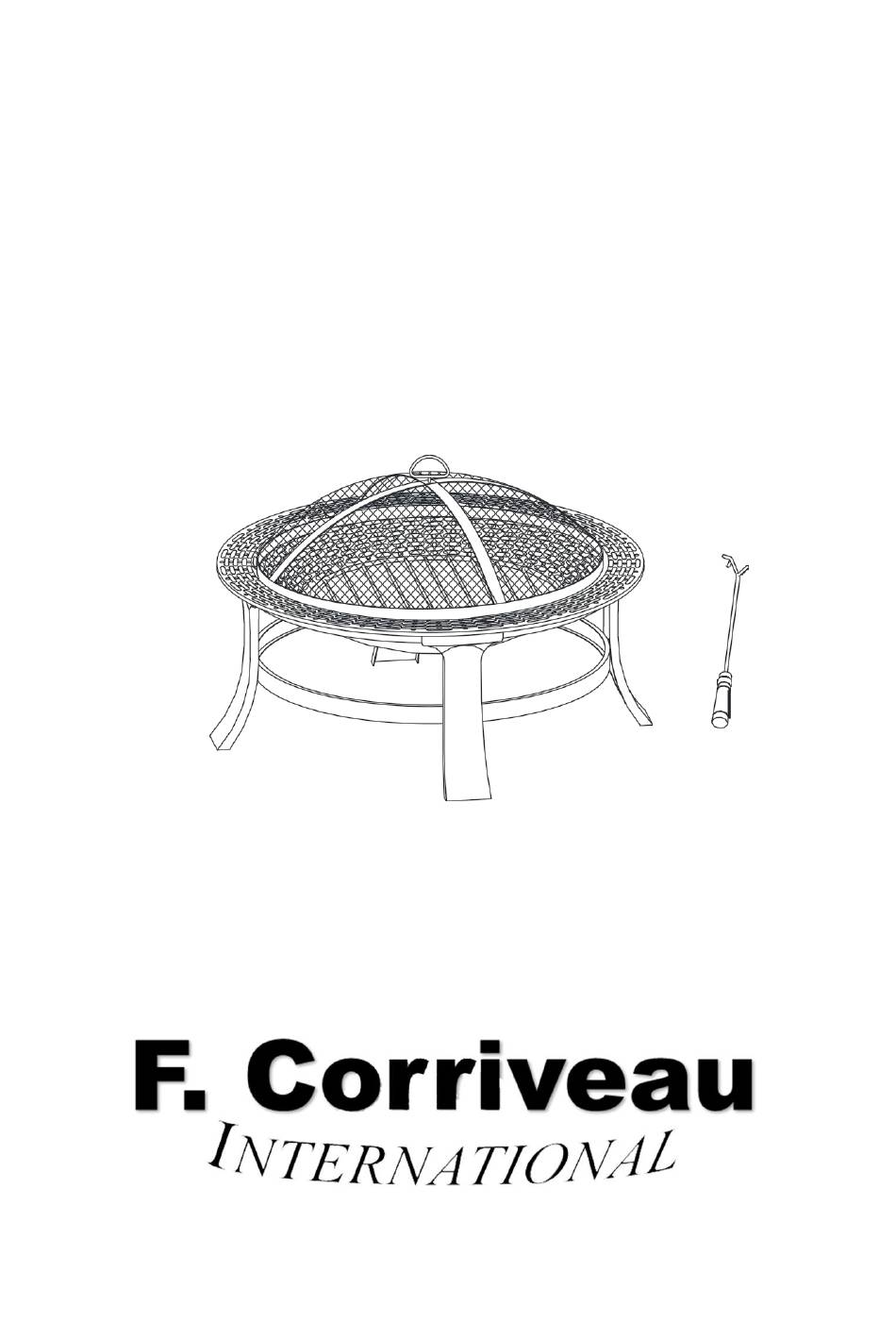

- Page 1 Fire Stove #13 MPS31RD- ( 2021) Assembly instructions...
- Page 2 Parts List Part# Description Handle Mesh wire cover Grill Grate Fire Bowl Ash catcher Up-coupling ring Down-coupling ring Poker Hardware Part# Description M6x15 Bolt M6x10 Bolt M5x10 Bolt M6 Nut M5 Nut Wrench Assembly Steps Fig.2 Fig.1 Step 1 ： Attach handle (A) to Mesh wire Step 2: Attach Ash catcher (F) to Fire bowl (E) and secure it with 3x M5x10 mm bolts (CC) and cover (B) and secure it with 1xM6 nut (DD),...
- Page 3 Fig.4 Fig.3 Step 3：Attach 4 Legs (H) to Up-coupling ring (G) with 8x M6x15 mm bolts (AA) and 8x M6 nut (DD) and tighten slightly. Connect Down-coupling ring (G) and (I) with 4x M6x10 mm bolts (BB), and then tighten all the connections. As shown in Fig.
