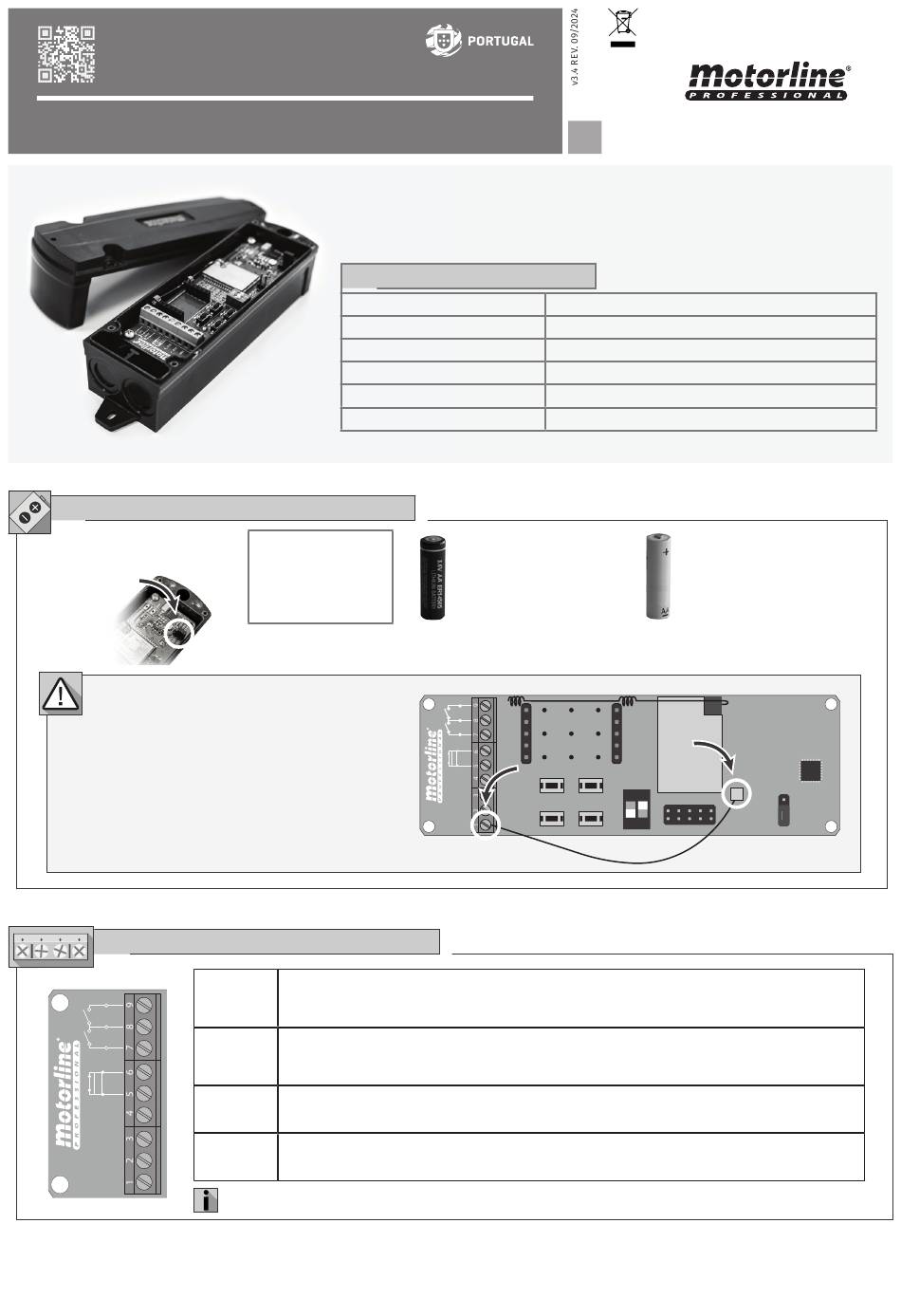

Motorline professional MX14 Operation And Programming Manual

MX14
OPERATION/PROGRAMMING MANUAL
ENERGY
Place the jumper in the position
indicated for the used battery
(BATT or SOLAR).
If it is not possible to have the sun shining directly
on the panel, place or keep the jumper in the
SOLAR position and make a shunt between the
battery's and solar panel positive like photo right
side to provide a Cold Start voltage (4V voltage) to
the MX14 electrical circuit.
As soon as the start is given, it will no longer
be necessary to maintain the Shunt and it can
be removed and keeping the panel connected
normally.
INPUTS / OUTPUTS
NO
INHI
NC
8K2
0_SIG
+ OSE
- GND
+ PV
The MX14 is a emitter that communicates wirelessly with the MR14 receiver, up to 50m in the
open field, powered by batteries or rechargeable batteries by solar panel.
Allows the connection of an 8k2 safety edge, optical sensor and dry contact safety device,
or the use of an accelerometer.
• Power supply
• Solar panel
• Working frequency
• Range in open field
• Dimension
• Protection class
BATTERY LIFE:
3 years with non-re-
chargeable batteries
upon use.
ATTENTION: ALWAYS CHECK THE CORRECT ORIENTATION WHEN APPLYING THE BATTERY TO THE DEVICE.
9 • NO
Input for dry contact safety devices
8 • COM
Common
7 • INHI
NO input for inhibit signal
Input for 8k2 resistive safety rubber.
6 • 8K2/NC
NOTE • To use 8k2 Dipper 1 and 2 must be OFF. To use NC, Dipper 1 must be ON and Dipper 2
5 • 8K2
must be OFF.
4 • O _ S I G
Optical sensor signal
3 • + OSE
Optical sensor power supply
2 •
GND Solar panel and optical sensor common
1 •
+ PV Solar panel positive (max. 4V)
It is possible to invert the polarity of the auto test channel inputs through the MR14 pin headers.
TECHNICAL CHARACTERISTICS
Battery Mode (BATT)
Lithium batteries with a
power of 3.6V and size AA.
NO
INHI
NC J1
8K2
0_SIG
+ OSE
- GND
+ PV
EN
3.6V AA batteries or 3.7V AA rechargeable batteries
4V 150mA monocrystalline
868.0MHz to 869.8MHz
50m
150 x 42 x 40 (mm)
IP65
Solar Mode (SOLAR)
Rechargeable lithium ion
batteries, powered by the solar
panel, with a power of 3.7V with
size AA.
ANT
J2
ON
1 2
• Cold Start Shunt
BATT
COM
SOLAR
