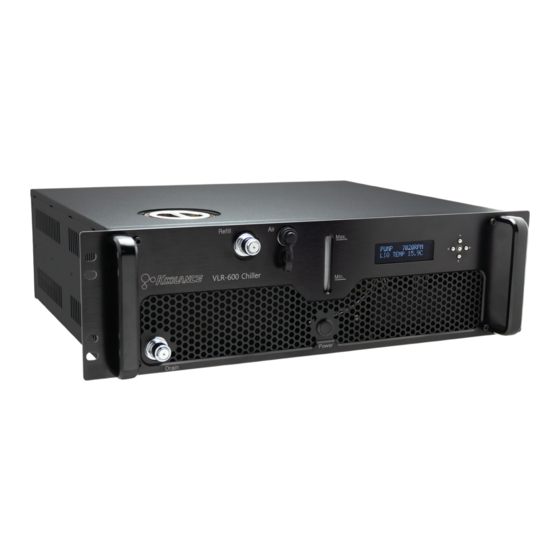

- Page 1 ® Superior Liquid Cooling Systems www.koolance.com VLR-600 VLR-600 User’s Manual User’s Manual English v1.0 9001 Printed in Korea...
-
Page 2: General Precaution
GENERAL PRECAUTION be harmful or fatal if swallowed. KEEP THIS AND ALL DANGEROUS Please read this manual carefully before beginning the installation of your Koolance system. CHEMICALS OUT OF THE REACH OF CHILDREN. Please refer to This manual assumes the user has basic experience in building and configuring computer the coolant MSDS available on our website: www.koolance.com... -
Page 3: Table Of Contents
- Dimensions: 480 x 390 x 135mm (approx.) - Operating Temperature Range: Ambient 0-40°C, Water 0-40°C - Cooling Capacity: 600W (2047BTU/hr) @ 25°C liquid/ambient - Refrigerant: R-134a Coolant - Pump: Koolance P/N PMP-500 Relay Out, Thermocouple Condenser Fans Inlet & Outlet - Power Input: 110-220VAC... -
Page 4: Positioning The System
Do not power-on the unit without sufficient liquid in Tube Fittings the reservoir. Dry-running (and thereby damaging the pump) is not covered under the Koolance product warranty. Tube fittings are purchased separately. Once all devices (cold plates, fittings, etc.) have been... -
Page 5: Draining
Display Panel The Koolance display panel allows control and monitoring of various aspects of the cooling unit. 5 buttons are used, with directional arrows to navigate or change settings, and a center button to select/exit. -
Page 6: Temp Set
The sensor currently displayed in this menu is what the chiller will follow. Main Menu ◙ Only one can be active. Press to adjust the target temperature value using ▼ ◙ To enter the main menu, briefly press . The selected option will begin flashing. and ▲. -
Page 7: Relay Set
Press to move to line 2, and similarly use ▼ or ▲ to choose what will be ◙ under the Koolance product warranty. displayed on the second line. Press again to exit. If “CYCLIC” is chosen from the DISPLAY SET menu, multiple values can be rotated The pump speed can be manually set from 0 (OFF) to 10 (highest): through the front display. -
Page 8: Troubleshooting
Troubleshooting Limited Warranty We hope your Koolance system will provide you with years of reliable cooling Koolance Incorporated (“Koolance”) warrants each new Koolance liquid-cooled performance. To help avoid unnecessary RMA issues, we have prepared this list system (“the system”), against defects in materials or workmanship for a period of of possible operational problems, and their most common solutions.
