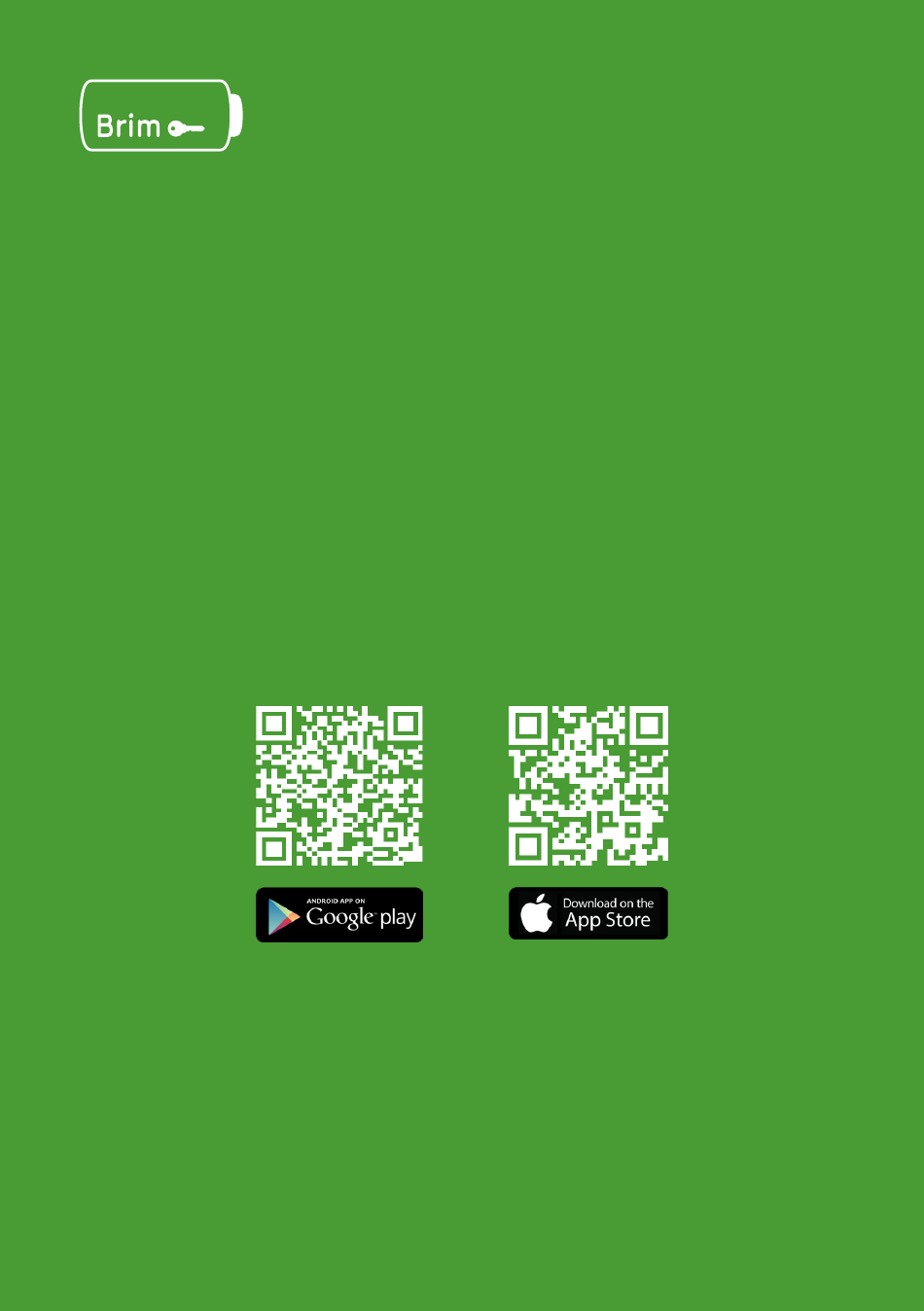

- Page 1 Product Manual Brim Chargers Download Our App A step by step user guide for your Brim Charger.
- Page 2 CONTENTS 01 ) Safety and Warning Safety Instructions Page 1 Warning Instructions Page 1 02) Introduction Page 2 Product Technical Specifications Page 3 External Structure Page 3 Package Contents 03 ) Installation and Preparation Installation Preparation Page 4 Installation Process Page 4 Installation Steps Page 5...
- Page 3 01) Safety Instructions SAVE THIS BOOKLET. READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING THE CHARGER. 1) Keep the charger away from flammable or explosive materials, chemicals, and hazardous substances. 2) Keep the charger socket clean and dry. Use a dry cloth for cleaning if necessary. 3) Do not touch the socket core while the power is on.
- Page 4 02) Introduction 2.1 Product Technical Specifications Model BR-AC7000-01 Power Supply Single - Phase Rated Voltage 230V AC Input Rated Current Frequency 50/60Hz Output Voltage 230V AC Output Maximum Current Output Power 7.4kW Charging Outlet Type 2 Cable Cable Length Housing Material...
- Page 5 1) Inspect the charger for any visible damage. If found, contact the seller immediately. 2) Verify the following contents: M4*32 Screw φ6 Expansion Pipe Installation Board User Manual (x1) (x8) (x8) (x1) Brim Charger M4 Hex Key Seal Cap Insulated Terminal Coupler Holder (x1) (x1) (x2) (x3) for Single - Phase...
- Page 6 03) Installation and Preparation 3.1 Installation Preparation 1) Tools Required Tool Name Photo Function Check electrical connection and Multimeter electrical parameter Cross Screwdriver Tighten the screws (PH2 x 150mm, PH3 x 250mm) Insulated Torque Wrench Tighten the bolts Electric Drill Hole on the wall Diagonal Pliers Cut cables...
- Page 7 3.3 Installation Steps Using the installation board as a guide, drill 4 x Φ6mm x 35mm holes in the wall and insert the expansion pipes. Partially insert the top 2 M4*32mm screws (these are used for hanging) Remove the charger’s upper cover, hang it on the 2 screws, and secure it with 2 additional M4*32mm screws at the bottom.
- Page 8 04) Electrical Connection 4.1 Charger Appearance Reminder - Light Cable entry point 4.2 Overview of Internal Structure 2-M4x32 Screw 2-φ6 Expansion Pipe Sealed Cap 2-M4x32 Screw 4.3 AC Wiring NOTE: Ensure the silicone seal is properly cut to maintain the IP65 rating. Cut along this line Strip 40mm of the outer jacket and 8-15mm of the wire insulation.
- Page 9 Connect the charger to the vehicle. The LED indicator will flash yellow, signalling the charger is ready. Download the ‘Brim EV’ app from the Play Store or App Store and follow the on-screen instructions to initiate charging. - If the app fails to work, use the RFID card provided to start charging, or contact customer support for assistance.
- Page 10 06) Troubleshooting 6.1 Indicator Status LED Colour State LED Status Flashing green, 1S on, 3S off, Green Standby Cycle Flashing green, 200ms on, Green Suspended EV (Waiting) 1000ms off, x2, 3S off, Cycle Flashing green, 200ms on, Green Plug in Connector 1000ms off, x5, 3S off, Cycle Flashing green, 1S on, 1S off, Green...
- Page 11 Solid yellow light for 2S and Over / Under Frequency Fault flashing red, 500ms on 500ms off, x2, 3S off, Cycle Solid yellow light for 2S and Meter Comm Abnormal flashing red, 500ms on 500ms off, x3, 3S off, Cycle Solid yellow light for 2S and Smart Meter Comm Abnormal flashing red, 500ms on 500ms...
- Page 12 1) Check the input voltage frequency from the backend. Input Over AC input frequency may Over Frequency 2) If the frequency exceeds 63Hz for Frequency be too low a short time, wait till the power grid recovers to a normal voltage range. 1) Check the input voltage frequency from the backend.
- Page 13 07) App Setup Download the ‘Brim EV’ app from the Appstore or Google Playstore, which you can access by scanning one of the QR codes below. Set up your account to start charging. 7.1 Access Portal (AP) Mode If you were unable to setup and configure your charger on your Wi-Fi network, follow the...
- Page 14 Step 2: Login AP Page Open a browser on your Phone, such as Chrome or Safari, etc. In the address bar, input the address 192.168.4.1 Input the pin code of the charger to login the AP page, this can be found together with your WiFi Password Step 3: Setup After logging into the AP Mode page, click on Network Settings where you can set up the...
- Page 15 3. After changing the URL, you will be forced to log out. Please re-login and check the server status and network status. If they show Connected and Online, leave it for a minimum of 10 minutes, and the certificate will be updated automatically. After that, please click on Network settings and change the URL back to: wss://backend.prod.mybrim.io:80 Page 13...
- Page 16 plugmein@fulltothebrim.com +44 020 7097 5911 www.fulltothebrim.com...
