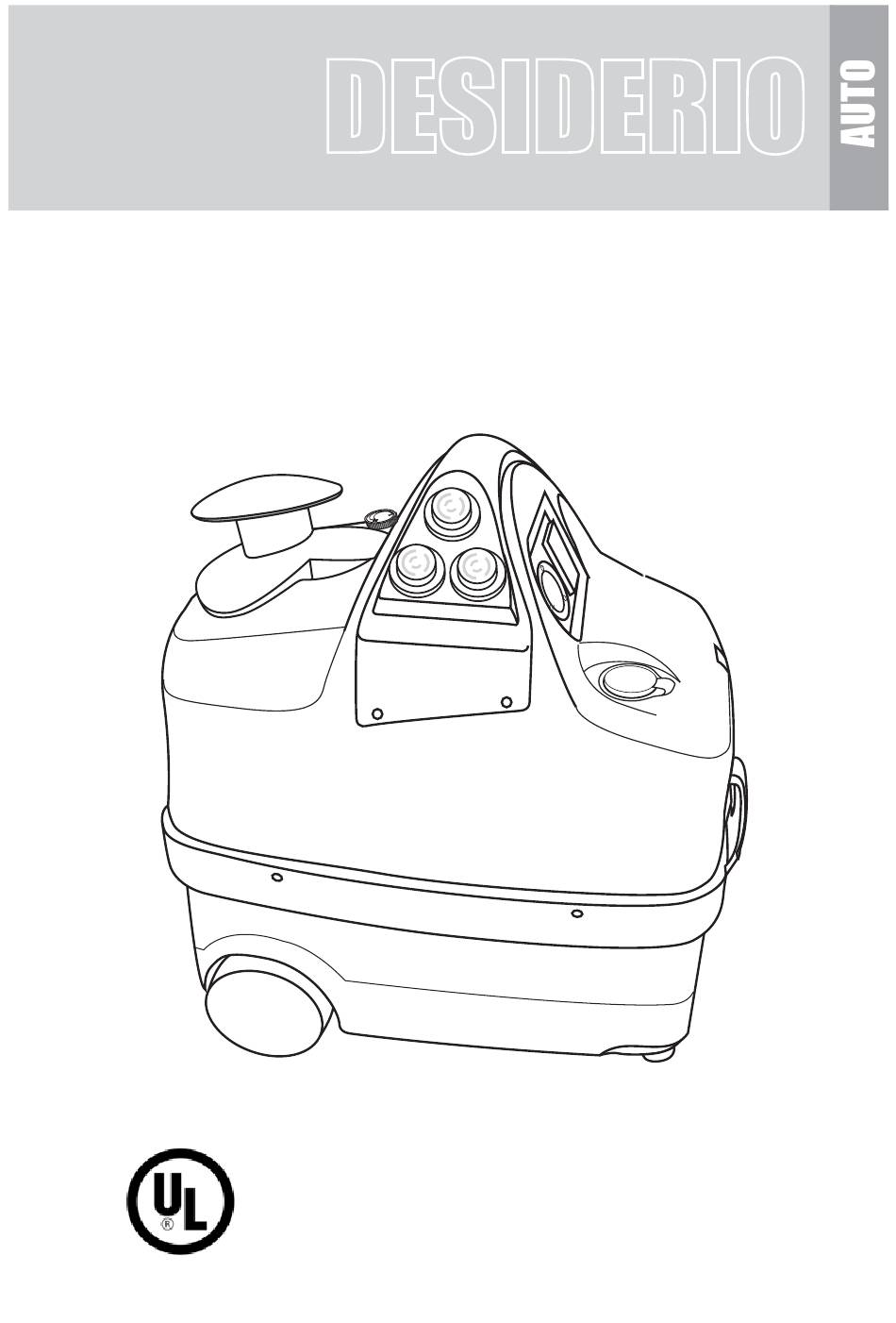

- Page 1 STEAM/SUCTION ¥ AUTOMATIC FILLING ¥ 120V-60Hz INSTRUCTIONS MANUAL...
- Page 3 TECHNICAL FEATURES Automatic boiler filling No Water buzzer Low voltage controls 120V - 60 Hz Power supply 1750 W Max power 1000 W + 700 W Boiler element Operative pressure max 75 psi Vacuum power 1000 W 2-stage tangential 21 kPa Max vacuum 46 litres/second Air-flow...
- Page 4 Boiler limiting device...
- Page 6 SAVE THESE INSTRUCTIONS...
- Page 7 OPERATING THE STEAM/VACUUM APPLIANCE KEY TO MACHINE COMPONENTS 1. Body of the machine 11. Boiler switch super power 1000 W 2. Recovery tank 12. Boiler switch 700 W 13. Overfilling probes in recovery tank. When the 3. Transfer handle recovery tank is overfilled, the probes (13) will 4.
- Page 8 ACCESSORIES 19. Dual control handle, hose and 26. Window-wiping brush multipurpose socket 27. Nozzle 20. Boiler fill bottle 28. Curved end for nozzle 21. 2 extension tubes 29. 3 half crevice brushes for nozzle 22. Textiles tool 30. 1 crevice brush for curved nozzle 23.
- Page 9 GENERAL OPERATING INSTRUCTION FILLING THE BOILER Fill the bottle (20) with filtered tap or bottled water. Do not use distilled / demineralized water (Fig. 5). Fig. 5 Open the water fill cap (9) by hand; turn the bottle upside down with the top over the tank hole and empty the contents of the bottle into the tank.
- Page 10 CONNECTING THE SUCTION/INJECTION HOSE (19) Pull the accessories socket door (15) wide open and plug the quick connection for the hose (19) into the socket on the front of the appliance; push the quick connection in as far as it will go. Close the accessories socket door (15) against the body of the quick connection and ensure that the two parts latch onto each other.
- Page 11 HOW TO OPERATE THE APPLIANCE: Before using the appliance, fit the desired tool to the hose handle (19). Once the tool is installed, use the controls on the handle to operate the appliance as fit. Using the controls on the handle, you can: - deliver steam, by pressing the red button (17);...
- Page 12 HOW TO USE ACCESSORIES USING THE ACCESSORIES The appliance is provided with a number of accessories to fulfil different needs. To connect or disconnect the different components, simply install or remove the male end to or from the female part. (Fig.10). Choose among the set of standard accessories the ones that are most fit for the job.
- Page 13 FITTING THE MULTIPURPOSE BRUSH (23) To install the bristled frame for fitted and non-fitted carpets (24), introduce the stiff brushes into the appropriate guides with the tabs facing inwards (Fig. 12). To fit the desired insert to the brush body simply place the insert against the brush body and press one against the other until the little lever on the outside of the brush body is fully engaged in the slot provided (Fig 13).
- Page 14 WORK HOSE (19) Press the vacuum control button (18) on the work hose to activate or deactivate the blowing function. Holding down the button will increase or decrease suction power (Fig. 16). Only use original accessories, as these provide better quality and safety characteristics.
- Page 15 STOPPIN G THE STEAM/VACUUM APPLIANCE To stop the appliance, turn the steam and suction control switches on the handle (19) to the off position; move the switches on the appliance to the of f position (Fig. 19) and disconnect the plug from the socket. Switch on and off the appliance only by using the switches, never by plugging and unplugging.
- Page 16 MAINTENANCE BOILER MAINTENANCE The boiler should be serviced on average every 300 hours of operation. If the appliance is used with particularly hard water (> 30 Fr), service the boiler at shorter intervals. Wash the boiler using a boiler de-scaling product (available from the manufacturer), carrying out the steps set out below.
- Page 17 C L E A N I N G T H E R E C OV E RY TA N K A N D AC C E S S O R I E S Check the state of picked up matter on a regular basis. Empty and clean the recovery tank and the accessories after each use.
- Page 18 STOWAGE When stowing the appliance away for long periods of time, you should first disconnect the steam/vacuum appliance from the mains supply by removing the plug from the socket. Then, empty and wash the waste recovery tank and clean the boiler. Also, take adequate precautions to protect any parts that may be damaged because of dust build-ups.
- Page 19 TROUBLES AND REMEDIES CAUSES REMEDIES TROUBLES Ensure there is power. The appliance is not Power failure. Contact the Service Centre. functioning. Faulty cable or switches Empty the recovery tank and Recovery tank is too full. Water is coming out from the check the float;...
- Page 20 TROUBLES CAUSES REMEDIES Little drops of water dripping This condition is normal during The inconvenience is normally from the accessories. the first minutes of operation; eliminated after a few minutes condensate will form because of operation; If the trouble is of a difference in temperature still there, clean the boiler.
- Page 21 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/UE At the end of its working life the product must not be disposed of with urban waste.It may be delivered to special centres for separate waste collection organised by the municipality, or to dealers who supply this service.Separate disposal of an electric household appliance allows the avoidance of possible negative consequences for the environment and for health resulting from inadequate disposal and allows the recovery of the materials of which it is composed in order to...
