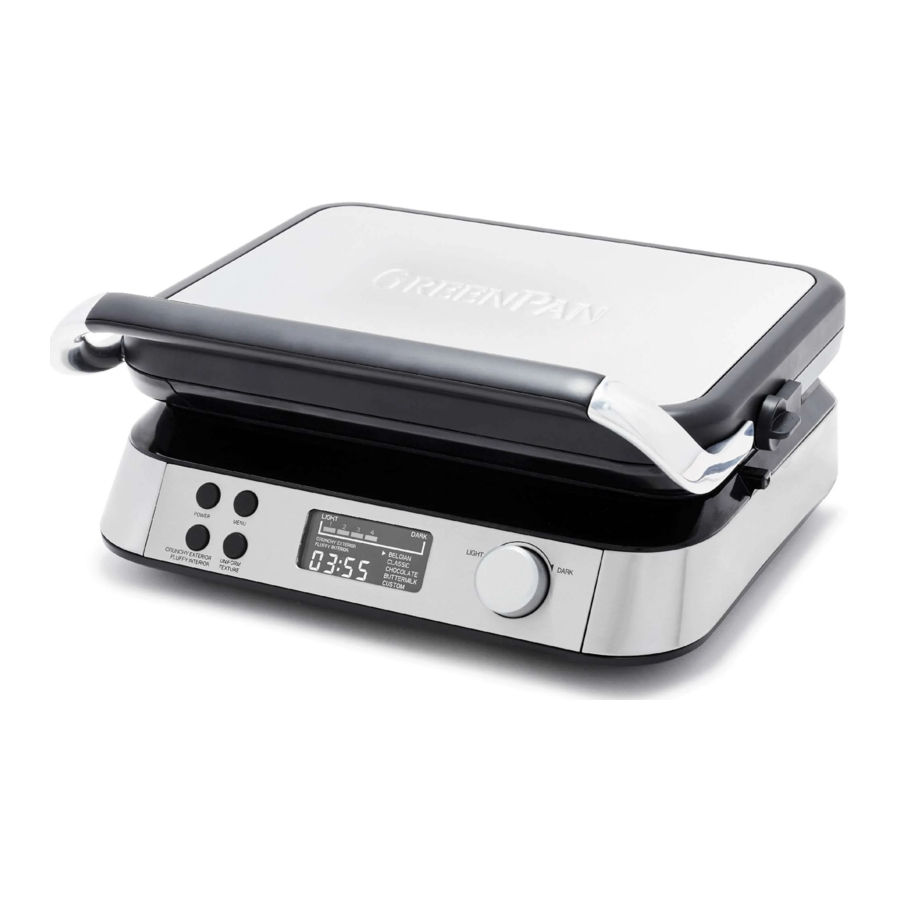

PARTS

1. Upper Body
2. Handle
3. LCD Display
4. Lower Body
5. Release Knob
6. Control Knob

KNOW YOUR CONTROL PANEL

LCD DISPLAY

BEFORE FIRST USE

Before using this electrical appliance, carefully read the instructions below and keep the instructions for use for future use:

1. Before plugging the appliance into the wall socket, check that the local electric current corresponds to the current specified on the appliance's rating plate. Always plug your appliance into a grounded wall socket.
2. Unplug the power cable as soon as you stop using the appliance and prior to any cleaning, maintenance or accessory assembly work.
3. Never place the appliance, the power cord or the plug in water or any other liquids.
4. The exterior temperature may be higher when the appliance is running.
5. This appliance is not intended to be operated using an exterior timer or by a separate remote control system.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

OPERATION

Wipe plates with damp cloth before first use

1. Prepare waffle mix
2. Unlock unit as indicated in image.
3. Plug unit in outlet
4. Press "Power" button – LCD Display will illuminate
5. Press "Menu" button to select (BELGIAN, CLASSIC, CHOCOLATE, BUTTERMILK, or CUSTOM)
6. Press Crunchy Exterior Fluffy Interior button or Uniform Texture button
7. Turn the knob to select waffle shade from 1 to 7; (7 is the darkest)
8. Once shade has been chosen, appliance will start preheating and the shade indicator light will blink
9. Once the blinking stops, preheating is complete
10. Pour waffle mixture onto waffle plate and cover unit
11. Once the unit cover is closed, the timer begins to countdown and the shade indicator light blinks
12. Cooking times will range between 2-10 minutes depending on chosen function and shade
13. Once time has been reached, unit will beep 6 times and unit will go into preheating mode
14. Open cover and remove waffle with nylon or wooden tool
15. Unplug and let cool before cleaning

The "CUSTOM" FUNCTION

1. When selecting the "CUSTOM" function, the unit will enter into the preheating mode
2. Once the selected temperature is reached, pour waffle mixture onto waffle plate and cover unit
3. Unit display timer will start from 00:00 to desired baking time
4. Press "power" button once desired time is reached

FEATURES AND BENEFITS

• PFAS-free ceramic nonstick
• Extra deep plates
• Mess-free overflow moat prevents batter from spilling over
• Fast and even heating
• 5 presets: choose between classic, Belgian, Buttermilk, chocolate, and custom
• 2 selectable textures: From light and fluffy to dark and crunchy
• 7 shade settings
• Fast & even heating
• Easy cleanup

RECIPE SUGGESTION

QUICK AND EASY WAFFLE BATTER

2 cups all-purpose flour
2 tablespoons sugar
1 tablespoon baking powder
½ teaspoon salt
1¾ cups reduced fat milk
⅓ cup vegetable oil
2 eggs

Makes 4-6 Belgian and 6-8 Classic waffles

QUICK TIPS

FOR BEST RESULTS

Keep Waffle Maker closed while preheating and wait until preheat mode is complete.
Allow Waffle Batter to rest for a few minutes before pouring onto hot Waffle Plates.
Add a light coating of cooking oil to the plates prior to the fist waffle. Do not use cooking spray or low smoke point oil.
Waffles are best when make fresh, but can also be frozen for later use (wrap separately) and reheated in toaster or oven.
For evenly sized waffles, pour batter into the center of the waffle plate and spread out to the edges of the plate
Be careful not to overfill the waffle plates.
Always clean your waffle plates after each use.

CLEANING AND MAINTENANCE

1. Unplug unit when not in use and allow to cool
2. Plates are fixed and cannot be removed
3. Do not immerse unit in water
4. Clean plates with damp cloth – do not use abrasive cleaners or metal tools

It is recommended to clean the waffle plates after every use to maintain optimal nonstick performance.

STORAGE

1. Lock release knob to vertical position as shown below
2. When not in use, wrap the cord under base of unit
3. Unit can be stored in an upright position

Release Knob:

BEFORE RETURNING YOUR GREENPAN PRODUCT

If you are experiencing problems with your GreenPan Waffle Maker, we suggest that you call GreenPan customer service at 914372-7777 before returning the product. A representative can confirm whether the product is under warranty and advise on next steps.

If the defective product is to be serviced by someone other than GreenPan's authorized service, please tell the servicer to call our consumer service at 914-372-7777 to ensure that the problem is properly diagnosed, the product is serviced with the correct parts, and the product is still under warranty.

TROUBLESHOOTING

Other Issues: Contact Customer Service

IMPORTANT SAFEGUARDS

When using an electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles and knobs.
3. To protect against fire, electrical shock, and injury to persons, DO NOT IMMERSE CORD, PLUG, OR UNIT in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest GreenPan Authorized Service Facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by GreenPan may result in fire, electrical shock, or injury to persons.
8. Do not use outdoors.
9. Do not let power cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Unplug the unit when finished cooking.
12. Do not use appliance for other than intended use.
13. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
14. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, remove plug from wall outlet.
15.
    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIR SHOULD BE DONE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO USER SERVICEABLE PARTS ARE INSIDE.

SAVE THESE INSTRUCTIONS FOR
HOUSEHOLD USE ONLY

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Longer extension cords may be used if care is exercised. If a long extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or animals, or tripped over.

NOTICE:
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
Do not modify the plug in any way.
