Zenty QuickShare ZT-QS200 User Manual

Wireless presentation system

Hide thumbs

page of 92

/ 92
Bookmarks

Quick Links

Download this manual

Zenty | Professional A/V Solution Provider

ZENTY

9807 EMILY LANE

STAFFORD, TX 77477

(844) 200-1945

(844) 200-1945 |

sales@zenty.com

Page 1 of 92

SALES@ZENTY.COM

Need help?

Do you have a question about the QuickShare ZT-QS200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zenty QuickShare ZT-QS200

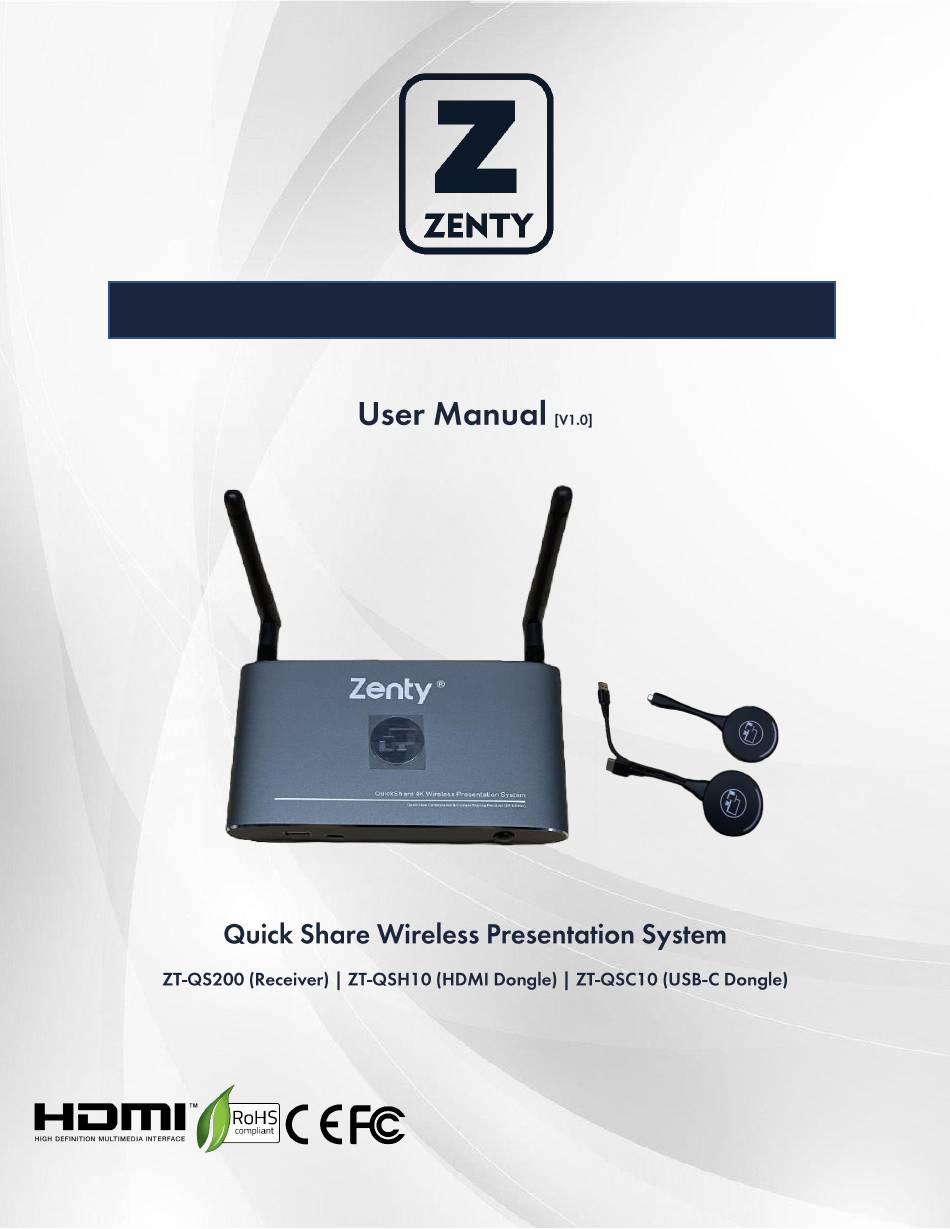

Page 1 Zenty | Professional A/V Solution Provider ® ZENTY 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 (844) 200-1945 | sales@zenty.com Page 1 of 92 Copyright © Zenty AV SALES@ZENTY.COM...
Page 2 3. Hardware Components ................. 7 4. Accessories List ..................8 5. Specifications ..................8 6. Panel Layout ................... 9 7. Installation .................... 17 8. Connection Methods ................24 (844) 200-1945 | sales@zenty.com Page 2 of 92 Copyright © Zenty AV...
Page 3 9. Web Setting Management Configuration ......... 49 (844) 200-1945 | sales@zenty.com Page 3 of 92 Copyright © Zenty AV...
Page 5 10. Updating Zenty QuickShare ............. 77 11. WiFi Recommendation Setting ............85 12. Troubleshooting .................. 86 13. Maintenance ..................91 14. Warranty ..................... 91 15. Mail-In Service ................... 91 16. Limited Warranty Limits and Exclusions ........... 91 (844) 200-1945 | sales@zenty.com...
Page 6 "Show-me" button can independently step in/out the PC source • Dual color LED, green indicates active source signal, red indicates power/link. (Hardware support on HDMI dongle and Type C dongle) (844) 200-1945 | sales@zenty.com Page 6 of 92 Copyright © Zenty AV...
Page 7 It also allows the other to join in the meeting more actively. The result is to make the meeting more efficient and productive. A typical Zenty QuickShare system contains one Base Unit ZT-QS200 and (optional) two Transmitters e.g., ZT-QSH10 / ZT-QSC10.
Page 8 1920x1080@60Hz Format Compliance HDMI 1.4 / HDMI 2.0 Video Capacity 1080P @ <60Hz Airplay for IOS devices 1080P @ <60Hz "Zenty QuickShare" app 1080P @ <60Hz for all show-me button HDCP HDCP 1.4 / HDCP 2.2 Analog Audio Output 1x 3.5mm PC audio female connector LAN Port RJ45 x2：1000Mbps x1，100Mbps x1...
Page 9 Weight 0.4lbs Temperature -4° ~ +140° F (-20° ~ +60° C) Humidity (Storage / Operating) 20%-90%（non-condensing） DC Power 12V / PoE PoE Standard IEEE802.3af Power Consumption 10W (Max) (844) 200-1945 | sales@zenty.com Page 9 of 92 Copyright © Zenty AV...
Page 10 The Type-C port is used for pairing USB Type C dongle with base unit. Mechanical Fixture Points The mechanical fixture points are located at the bottom of the base unit. (844) 200-1945 | sales@zenty.com Page 10 of 92 Copyright © Zenty AV...
Page 11 Connect an RS-232 cable from this port to an RS-232 RS-232 device. LAN Ethernet 100Mbps. Connect an Ethernet cable between this jack port 1 and a LAN to connect ZT-QS200 to LAN. (844) 200-1945 | sales@zenty.com Page 11 of 92 Copyright © Zenty AV...
Page 12 If you do not have a picture, press and hold the reset button until the red LED in the top panel will be lit to execute the reset. All previous settings will be lost and you will need to do the set-up once more. (844) 200-1945 | sales@zenty.com Page 12 of 92 Copyright © Zenty AV...
Page 13 Add a sub-window bar to enable previewing the connected devices: ON o Real time preview: ON • System settings: o Date & time: Automatic date & time: use network-provided time (844) 200-1945 | sales@zenty.com Page 13 of 92 Copyright © Zenty AV...
Page 14 When LED indicator is blinking Green, it indicates 1) the dongle is plugged in the laptop and initializing or waiting for user to start the Zenty QuickShare application, 2) pairing/software upgrading of the button in the Base Unit is in progress.
Page 15 Note: ZT-QSC10 is full function Type-C interface with DP Alt mode inside which supports Audio and Video transmission. Thus, PC’s type C connector also requires full function type C connector for mirroring screen. (844) 200-1945 | sales@zenty.com Page 15 of 92 Copyright © Zenty AV...
Page 16 Wi-Fi name or device name of the base unit access point 3. Pass Wi-Fi password of base unit 4. Password timer Only displayed when timer is active; time until the password is changed automatically. (844) 200-1945 | sales@zenty.com Page 16 of 92 Copyright © Zenty AV...
Page 17 White Board & Annotation function White board and Annotation function. icon Overview: • Installation methods for the Base unit • Table mounting (844) 200-1945 | sales@zenty.com Page 17 of 92 Copyright © Zenty AV...
Page 18 Horizontal distance: 177 mm ± 0.15 2. At the bottom of Base Unit, turn in 2 flat screws into 2 holes of its smallest diameter to be fasten enough. (844) 200-1945 | sales@zenty.com Page 18 of 92 Copyright © Zenty AV...
Page 19 Due to the particular radio pattern of the dipole antennas, the antennas should not be placed just above potential positions of Quick Share System users. As a result, the advised position for the antennas is at the side of the meeting room. (844) 200-1945 | sales@zenty.com Page 19 of 92 Copyright © Zenty AV...
Page 20 2. Connect the power adapter to the base unit DC power socket and connect the other side plug to an available electrical outlet and switch the base unit on. 3. After started, the system shows the home page. (844) 200-1945 | sales@zenty.com Page 20 of 92 Copyright © Zenty AV...
Page 21 2. Check Setting configuration, to adjust the Volume set in Zenty QuickShare setting tab. PC/Laptop Sound As default set, Zenty QuickShare will mute the internal speaker of PC/Laptop and route the audio to the base unit, after PC/Laptop is successfully mirroring desktop to the main screen, in order to avoid the repeated audio.
Page 22 The LAN connection can be used for: • Network integration of Base Unit in company network. • Telnet control the Base Unit. • Maintenance purpose. • Over-The-Air -Update (OTA) of firmware of Base-unit. (844) 200-1945 | sales@zenty.com Page 22 of 92 Copyright © Zenty AV...
Page 23 2. To control the sharing PC/Lap-top. 3. To activate system upgrading. 4. For white board or annotation during a presentation, Zenty QuickShare transmits Video, Audio and the USB-HID function for mouse-control and click-function of a touchscreen. Connect touch-interface of your screen to the USB-port on your laptop or PC.
Page 24 1. Download the application namely “Zenty QuickShare” in Android Google Play market for Android mobile device. 2. For IOS devices, use Airplay to mirror the desktop. 3. Zenty QuickShare provides two ways to discover the ZT-QS200 for mobile devices. a) Portable hotspot, to connect the hotspot to connect the ZT-QS200.
Page 25 1. Connect ZT-QSH10 (HDMI dongle) to USB port, ZT-QSC10 (Type C dongle) to type C port, to pair all the transmitters with base unit. The home page displays as shown below: (844) 200-1945 | sales@zenty.com Page 25 of 92 Copyright © Zenty AV...
Page 26 If error-message “Configuration fail” is shown, please check the connection of USB/type C to keep stable after plug-in, and try again. Note: After each changing the SSID/Wi-Fi channel in menu, all the transmitters must be paired again! (844) 200-1945 | sales@zenty.com Page 26 of 92 Copyright © Zenty AV...
Page 27 A transmitter can only be paired to one Base-unit at a time. The transmitter will always make connection to the Base-unit it was last paired to. You can operate Zenty QuickShare for Windows optionally with Dongle or PC Application. If there are several participants in a meeting, mixed operation is also possible.
Page 28 USB stick to base unit and click the DOWNLOAD icon on the homepage to download “ZentyQuickShare -windows.exe” for windows PC/Lap-top, “ZentyQuickShare -macOS.app” for Macbook, “user manual” and “ZentyQuickShare.apk”. (844) 200-1945 | sales@zenty.com Page 28 of 92 Copyright © Zenty AV...
Page 29 3. Double-click the " ZentyQuickShare-windows.exe" Launcher program . A list of all available “Zenty QuickShare” in the same network will be displayed, select which device you want to connect to. The connections are password protected (lock icon (844) 200-1945 | sales@zenty.com...
Page 30 'OK', the system is “Ready to share”. 5. Click “Ready to share” in PC, when window color is static red, the screen is mirroring to the main screen. (844) 200-1945 | sales@zenty.com Page 30 of 92 Copyright © Zenty AV...
Page 31 6. Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in Windows taskbar you can see if screen is mirroring or not Right click the Zenty QuickShare status icon in Windows taskbar to open up the context- menu.
Page 32 If you select the “Extended Screen” feature, Windows automatically switches to “Extended Mode”. If you stop the transfer with “Zenty QuickShare” (Pause), Windows remains in " Extended Mode" until you press "Windows key + P" on the laptop to select the "PC screen only" mode. “Remote control” is available for “Extended screen”...
Page 33 Volume Slider: • Adjust the playback volume of the main screen when presentation laptops is active. At least operation system macOS 10.9 is required. (844) 200-1945 | sales@zenty.com Page 33 of 92 Copyright © Zenty AV...
Page 34 2. Plug the Type C port of ZT-QSC10 to PC/Laptop/MacBook. 3. Touch to mirror when the LED indicates is static green. 4. When LED is static red, the desktop is mirroring to the main screen. (844) 200-1945 | sales@zenty.com Page 34 of 92 Copyright © Zenty AV...
Page 35 3. Double-click the " ZentyQuickShare for Mac" Launcher program a list of all available “Zenty QuickShare” in the same network will be displayed, select which device you want to connect to. The connections are password protected (lock icon (844) 200-1945 | sales@zenty.com...
Page 36 6. Click the visual button again, to stop mirroring, window color shows green again. You can minimize the APP-window, in Windows taskbar you can see if screen is mirroring or not Right click the Zenty QuickShare status icon in Windows taskbar to open up the context- menu.
Page 37 Click the icon in App to open/close “options”. Extended Screen: Transmits the Extended desktop (“Use a Separate Display”) only via AirPlay, when activated for Display on Zenty QuickShare. (844) 200-1945 | sales@zenty.com Page 37 of 92 Copyright © Zenty AV...
Page 38 ZT-QS200 base unit can mirror 4 sources onto main display simultaneously, which supports PC/Laptop and mobile device. (844) 200-1945 | sales@zenty.com Page 38 of 92 Copyright © Zenty AV...
Page 39 Apple device and select the IOS devices, activate the control center. Click the Airplay icon on your Apple device and select target ZT-QS200 to start mirroring through the ZT-QS200 to the main screen. It will show OSD on home screen after cc (844) 200-1945 | sales@zenty.com Page 39 of 92 Copyright © Zenty AV...
Page 40 1. Make sure the Wi-Fi or WLAN is enabled. 2. Swipe down from the top of phone’s screen and click the wireless projection icon in the popup page. (844) 200-1945 | sales@zenty.com Page 40 of 92 Copyright © Zenty AV...
Page 41 2 and Security level 3 mode, it will need to enter password on ZT-QS200 home screen to connect and mirror. 4. After entering password, it will show your mobile content on display. 5. Click the “wireless projection” icon again, disconnect to stop mirroring. (844) 200-1945 | sales@zenty.com Page 41 of 92 Copyright © Zenty AV...
Page 42 Note: under Security Level 1 mode, there is no need to enter password to connect. Under Security level 2 and Security level 3 mode, it will need to enter password on ZT-QS200 home screen to connect and mirror. (844) 200-1945 | sales@zenty.com Page 42 of 92 Copyright © Zenty AV...
Page 43 PC and ZT-QS200 base unit need to be in the same LAN network to start cast content onto screen via Chromecast. 1. Open Chromecast browser, connect your PC with same network of ZT-QS200 as below picture: 2. Click “cast” to start Chromecast function. (844) 200-1945 | sales@zenty.com Page 43 of 92 Copyright © Zenty AV...
Page 44 Once the preview windows are activated, you see live-pictures (1) of all connected transmitters and ZentyQuickShare android devices via “ ” APK at the right edge of the screen. Just scroll UP or DOWN (844) 200-1945 | sales@zenty.com Page 44 of 92 Copyright © Zenty AV...
Page 45 The button indicates volume, click to adjust the volume of connected signal. The button indicates the location of connected devices on main screen. (844) 200-1945 | sales@zenty.com Page 45 of 92 Copyright © Zenty AV...
Page 46 20s then will disappear automatically. In order to let other attendees join into meetings as well. The toolbar for Whiteboard or Annotation appears in the bottom of your screen. If another user is (844) 200-1945 | sales@zenty.com Page 46 of 92 Copyright © Zenty AV...
Page 47 Whiteboard page. You can create free drawings with your finger at touch screen, mouse (multitouch capability). Use the toolbar to select one of the following functions. (844) 200-1945 | sales@zenty.com Page 47 of 92 Copyright © Zenty AV...
Page 48 Click on icon to enter the Annotation function Use the toolbar to select one of the following functions. (844) 200-1945 | sales@zenty.com Page 48 of 92 Copyright © Zenty AV...
Page 49 ” for Android can be downloaded here. Note: after setting, user need to wait for at least 1 min to restart the unit. Otherwise, the modification on the setting will not be saved. (844) 200-1945 | sales@zenty.com Page 49 of 92 Copyright © Zenty AV...
Page 50 The default password after reset is ”admin”. You can change the password in menu “Security setting”. Note: If user has forgotten his password, you need to make a Factory Reset to restore “admin” as password. (844) 200-1945 | sales@zenty.com Page 50 of 92 Copyright © Zenty AV...
Page 51 WI-FI network and wired LAN network (normally connected to the corporate/trusted network). A typical Segmented Dual Network topology is shown as below. (844) 200-1945 | sales@zenty.com Page 51 of 92 Copyright © Zenty AV...
Page 52 Enter a device name for the Base-unit. We recommend to take a descriptive name, if you have more Zenty QuickShare than one installed. The default name is “ZT-QS200-XXXX”. Only "a-z","A-Z","0-9","-_" and space are legal characters. Click “Next step”. The following three connection methods are available. (844) 200-1945 | sales@zenty.com Page 52 of 92 Copyright © Zenty AV...
Page 53 Under this mode, dongle will be automatically paired to the base unit Wi-Fi hotspot when plugging dongle to the base unit USB port for pairing. (844) 200-1945 | sales@zenty.com Page 53 of 92 Copyright © Zenty AV...
Page 54 Default channel (China): 149,153,157,161. • Password: Click in the input filed to fill out the appropriate password with length of 8 characters. Click “Submit settings” to finish configuration. (844) 200-1945 | sales@zenty.com Page 54 of 92 Copyright © Zenty AV...
Page 55 Allow Internet access (bridging) via LAN2: able to connect to Internet if LAN2 port is available. • Disable Internet access: cannot be on Internet if choose this mode. (For safety concerns). (844) 200-1945 | sales@zenty.com Page 55 of 92 Copyright © Zenty AV...
Page 56: Quick Share
Choose a wireless network which is separate from the company LAN network for guest users. Select SSID: Choose a wireless network to connect to base unit for guest. Password: enter password to connect the base unit to the guest network. (844) 200-1945 | sales@zenty.com Page 56 of 92 Copyright © Zenty AV...
Page 57 Password: enter password to connect the base unit to the guest network. Select dongle SSID: choose the same LAN network which base unit connects, to pair the dongle. Password: enter password of the LAN network. See picture as below: (844) 200-1945 | sales@zenty.com Page 57 of 92 Copyright © Zenty AV...
Page 58 Zenty QuickShare In this configuration the built-in Wi-Fi access point of is disabled: The dongle and/or the mobile devices can connect to the secured wireless access point of the (844) 200-1945 | sales@zenty.com Page 58 of 92 Copyright © Zenty AV...
Page 59 After submitting successfully, please re-pair dongle with base unit. Configure the Ethernet settings. ZT-QS200 has 2 Lan port, if the base unit is connected with 2 LAN cable, you can configure from below tab. (844) 200-1945 | sales@zenty.com Page 59 of 92 Copyright © Zenty AV...
Page 60 SSID and password to connect to the Base-unit access point, in order to access all functionality. Configure to automatically change Wi-Fi password to a random number every period of time. (844) 200-1945 | sales@zenty.com Page 60 of 92 Copyright © Zenty AV...
Page 61 Select the resolution at HDMI output of Base-unit. Existing HDMI output resolution as below: • Auto • 3840x2160 @30Hz • 3840x2160 @60Hz • 3840x2160 @50Hz • 1920x1080 @60Hz • 1920x1080 @50Hz • 1920x1080 @30Hz (844) 200-1945 | sales@zenty.com Page 61 of 92 Copyright © Zenty AV...
Page 62 On: Base unit will be auto turned off also when display is turned off. • Off (Default): Base unit will not be auto turned off also when display is turned off. (844) 200-1945 | sales@zenty.com Page 62 of 92 Copyright © Zenty AV...
Page 63 Jack: output only 3.5mm mini-jack audio. HDMI: output only HDMI audio. Jack & HDMI (Default): output Jack & HDMI audio Volume User can select volume of display from 0 to 100. (844) 200-1945 | sales@zenty.com Page 63 of 92 Copyright © Zenty AV...
Page 64 Show device name and password when mirroring: Name (ID) and Wi-Fi-password can be shown or hided at top status-line of main screen. • Show PCs user name when mirroring. Show user name (844) 200-1945 | sales@zenty.com Page 64 of 92 Copyright © Zenty AV...
Page 65 You can return to Standard Home screen every time. • Activate / deactivate the moderator control. Tick the icon, it will show the sub window as below once devices are connected to base unit. (844) 200-1945 | sales@zenty.com Page 65 of 92 Copyright © Zenty AV...
Page 66 Real time preview If you check the icon, the preview window will show real time preview, if not checked, the preview window will only show a static picture as below: (844) 200-1945 | sales@zenty.com Page 66 of 92 Copyright © Zenty AV...
Page 67 DONGLE or click the full screen button on the preview window, other display sources or presenter will be kicked away, only one presenter left and show on the full screen. (844) 200-1945 | sales@zenty.com Page 67 of 92 Copyright © Zenty AV...
Page 68 Show Device name, MAC Address, Serial Number, Device Version, Device Status, Last Action, Item Operate. Paired: Show properties of connected dongles and can be managed from this page. (844) 200-1945 | sales@zenty.com Page 68 of 92 Copyright © Zenty AV...
Page 69 Set time: Click in the input filed to fill out the appropriate time manually. The setting is not saved, when power is off. • Select time zone: Click in the input filed to fill out the appropriate time zone. (844) 200-1945 | sales@zenty.com Page 69 of 92 Copyright © Zenty AV...
Page 70 When a dongle is plugged in and connected, or a mobile unit is connected, standby is deactivated. Movement of mouse at USB-input at Base-unit deactivates Standby mode also. Select an installed display language. (844) 200-1945 | sales@zenty.com Page 70 of 92 Copyright © Zenty AV...
Page 71 Configuration File is a packaged file which contains all the configuration parameter of the ZT-QS200, which could be downloaded and copied to multiple device which needs to use the same configuration. (844) 200-1945 | sales@zenty.com Page 71 of 92 Copyright © Zenty AV...
Page 72 To configure telnet command and RS-232 command. (844) 200-1945 | sales@zenty.com Page 72 of 92 Copyright © Zenty AV...
Page 73: Quick Share
Zenty Based on user requirements, three different security levels can be set in the menu of QuickShare , to satisfy different security requirements, according to different security sensitive (844) 200-1945 | sales@zenty.com Page 73 of 92 Copyright © Zenty AV...
Page 74 Change admin password for entering setting menu on webserver. Default password, or after a RESET, is “admin”. You can change the password as you like. You can also deactivate the password entry, set the appropriate checkmark and “Confirm settings”. (844) 200-1945 | sales@zenty.com Page 74 of 92 Copyright © Zenty AV...
Page 75 4-digits password, beginning with 0000 • 8-digits password To upload local updating files to upgrade base unit. Check to choose upgrading from OTA via Internet or from local files. (844) 200-1945 | sales@zenty.com Page 75 of 92 Copyright © Zenty AV...
Page 76 Pictures, videos, music of mobile units will be stored in memory of Base-unit. This memory can optionally be erased, at the end of a meeting, when the dongle is pulled from the Laptop / PC. Settings are: (844) 200-1945 | sales@zenty.com Page 76 of 92 Copyright © Zenty AV...
Page 77 An update of the firmware can be useful to take the advantage of new features of QuickShare Zenty QuickShare or to fix known issues and bugs. includes two methods of updating. Updating by USB stick and webserver. (844) 200-1945 | sales@zenty.com Page 77 of 92 Copyright © Zenty AV...
Page 78 Dongle/Launcher: firmware version can be visual in the ““ ”.exe” program icon in Zenty QuickShare windows status bar by right-clicking the ““ ”” icon and select “About”, as shown below: (844) 200-1945 | sales@zenty.com Page 78 of 92 Copyright © Zenty AV...
Page 79 “Launcher” firmware doesn’t match with the base unit version, it shows up ““ ” ATTENTION” alert message box in the window OS or MAC OSX, as below: (844) 200-1945 | sales@zenty.com Page 79 of 92 Copyright © Zenty AV...
Page 80 When mismatching occurs, please do the following steps to update the firmwares, as indicates in the message box. There are two ways to upgrade base unit as below. First method to upgrade base unit as below: (844) 200-1945 | sales@zenty.com Page 80 of 92 Copyright © Zenty AV...
Page 81 The display device shows the Home Screen after normal boot of the device, you can disconnect USB- drive. 4. Perform “Factory Reset” when the firmware update is complete? (844) 200-1945 | sales@zenty.com Page 81 of 92 Copyright © Zenty AV...
Page 82 Note: Type C dongle needs to plug into Type-C port of front base unit to upgrade. The upgrading progress starts automatically with the progress bar, as shown below: (844) 200-1945 | sales@zenty.com Page 82 of 92 Copyright © Zenty AV...
Page 83 Windows, MAC and Apps for mobile-units. There are 2 methods to update the USB stick/launcher, including: Method 1: Via USB stick 1. Connect the USB drive to either USB port of base unit. (844) 200-1945 | sales@zenty.com Page 83 of 92 Copyright © Zenty AV...
Page 84 6. Run the program to start sharing. Two methods to execute the launcher for first time user • Copy the program to PC, and click to execute it to share PC screen. (844) 200-1945 | sales@zenty.com Page 84 of 92 Copyright © Zenty AV...
Page 85 And check again to be sure there is no more any ZentyQuickShare ZentyQuickShare “ ” in the C:\Users\***(userame)\AppData\Local\” ”. 5. Execute the actual version of Launcher program. Upgrading progress is completed. (844) 200-1945 | sales@zenty.com Page 85 of 92 Copyright © Zenty AV...
Page 86 Here you can find some fundamental problems and possible causes, which can be happen during Zenty QuickShare the use of “ ”. Find out the problem you’ve encountered in the table below and apply the solution. (844) 200-1945 | sales@zenty.com Page 86 of 92 Copyright © Zenty AV...
Page 91 The items listed are not exclusive, but are for illustration only.) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. (844) 200-1945 | sales@zenty.com Page 91 of 92 Copyright © Zenty AV...
Page 92 WWW.ZENTY.COM 9807 EMILY LANE STAFFORD, TX 77477 (844) 200-1945 SALES@ZENTY.COM (844) 200-1945 | sales@zenty.com Page 92 of 92 Copyright © Zenty AV...
