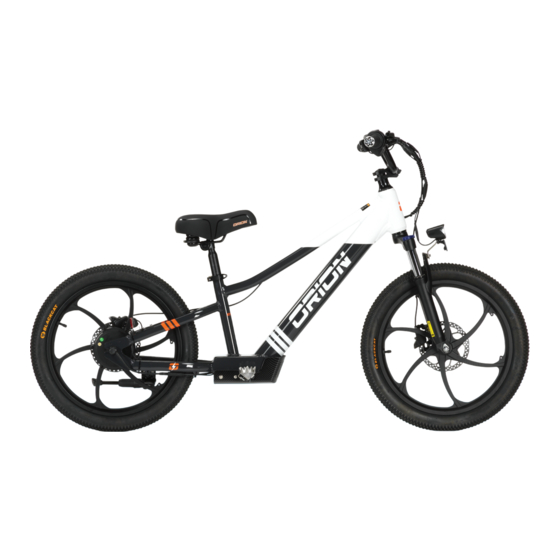

- Page 1 OPERATING INSTRUCTION MANUAL eSeries Electric Balance Bikes 2024 e12x | e16x| e20x SETUP AND SUPPORT https://orionmoto.com/support/ VER.2.1/2023-2024...
- Page 2 We take pride in offering exceptional customer service and support to ensure that every riding experience on your child's Orion balance bike is nothing short of the best. We believe that this investment in your child's happiness will be one of the most rewarding decisions you make.
- Page 3 Please read it thoroughly before embarking on the initial ride with your new bike, and keep it for future reference. If you encounter any uncertainties or have questions, prioritize your safety and contact Orion Moto customer service at 817-350-4520 or info@orionmoto.com. IMPORTANT: YOUR INSURANCE POLICIES MAY NOT EXTEND COVERAGE TO ACCIDENTS INVOLVING THE UTILIZATION OF THIS BICYCLE.
- Page 4 TABLE OF CONTENTS INTRODUCTION ............................. 1 A FEW WORDS ABOUT SAFETY ......................2 Before Riding ............................3 PRE-RIDE SAFETY ........................... 3 Safety Equipment ..........................5 MESSAGE TO RIDERS ..........................6 Things to Consider ..........................6 COMPONENT LOCATION ........................8 BIKE ASSEMBLY ............................. 9 Tool Kit ..............................
- Page 5 This information will alert you to some potential hazards that could harm you or others. Orion cannot foresee every potential situation that may result in harm or fatality during operation or maintenance. Hence, it is crucial for the consumer and end user...
- Page 6 A FEW WORDS ABOUT SAFETY Your safety, and the safety of others, is very important and operating this electric balance bike safely is an important responsibility. DANGER!: You could be SERIOUSLY HURT if you don’t follow instructions. CAUTION!: You could be HURT if you don’t follow instructions. Always use an Never use on Never carry...
- Page 7 Any major service or adjustments on your bike not covered in this manual should be carried out by an authorized Orion dealer. If you wish to make adjustments yourself, this manual contains important tips on how to do it.
- Page 8 9. If any components become loose while riding, and tighten, or bring to a Authorized Orion Dealer for repair. TO PREVENT INJURY, IT IS IMPERATIVE THAT THIS PRODUCT BE THOROUGHLY ASSEMBLED BEFORE USE. WE STRONGLY ADVISE REVIEWING THE COMPLETE ASSEMBLY GUIDE AND CONDUCTING THE CHECKS OUTLINED IN THE OWNER'S MANUAL BEFORE RIDING.
- Page 9 SAFETY EQUIPMENT Orion Moto promotes the use of safety equipment during the use of your electric balance bike; the following list is an advisory guideline of the equipment that should be obtained before using your electric balance bike for the first time, and to be used for every ride regardless of experience and skill level.
- Page 10 MESSAGE TO RIDERS Your safety is of utmost importance to Orion Moto. Therefore, we strongly encourage you to read this message before using this electric balance bike. Making informed decisions regarding if, when, and how you ride this electric balance bike can significantly contribute to accident prevention.
- Page 11 MESSAGE TO RIDERS Make sure the accessory: • Does not reduce ground clearance and lean angle • Limit steering travel • Alter your riding position • Interfere with operating any controls • Does not alter, interfere, or connect to any electrical components or battery MODIFICATIONS We strongly advise you not to remove any original equipment or modify your electric balance bike in any way that would change its design or operation.
- Page 12 COMPONENT LOCATION 1. Frame 7. Front Forks 12. Head light 17. Kickstand 2. Handlebars 8. Front Axle 13. Seat clamp 18. Control Panel 3. Brake levers 9. Rear Axle 14. Charging port 19. Seat 4. Throttle 10. Hub motor 15. Brake Caliper 20.
- Page 13 2. Allow the bike to cool down for a sufficient period (up to 30 minutes) 3. Secure the bike for repair or maintenance In case of uncertainty about any repair or maintenance, please contact Orion Moto Customer Service at (817) 350-4520.
- Page 14 BIKE ASSEMBLY FRONT WHEEL INSTALLATION The front axle is located in the TOOL KIT. The washers and spacers are already arranged in the correct order. Visual references are provided below. E12X Nut | Washer | Fork | Washer | Spacer (both sides). E16X Nut | Washer | Fork | Spacer (both sides).
- Page 15 BIKE ASSEMBLY HANDLEBAR INSTALLATION STEERING STEM 1. Loosen the M4 SCREWS that secure the lower handlebar clamp onto the steering stem. 2. Rotate the lower clamp approximately 180 degrees, ensuring it faces forward and is evenly balanced between the fork. 3.
- Page 16 BIKE ASSEMBLY HANDLEBARS 1. Use the 4MM HEX WRENCH provided to remove the bolts from the handlebar clamp. 2. Once the clamp is open, place the lower crossbar of the handlebar in the groove of the top crown. 3. Loosely tighten the handlebar clamp with 4mm hex wrench and adjust the handlebar to a 90 degree angle aligning with the forks.
- Page 17 BIKE ASSEMBLY INSTRUCTIONS FOR ASSEMBLING FOLDABLE METAL FOOT PEGS: CAUTION: USE APPROVED SAFETY GLASSES The folding metal foot pegs are side specific. The mounting position for the return spring is in the down position for each foot peg. See picture. 1.
- Page 18 BIKE ASSEMBLY SEAT ADJUSTMENT 1. Pull quick-release lever to loosen the clamp. 2. Raise/Lower saddle to desired height. 3. Tighten quick-release, adjust nut as needed. HEADLIGHT INSTALLATION 1. Connect the headlight quick connect to the main wire harness. 2. Put the washer on the long M5 screw, insert it into the headlight mounting bracket and push it through the hole in the fork above the front tire.
- Page 19 BIKE ASSEMBLY BRAKE LIGHT INSTALLATION 1. Connect the tail light quick connect found near the rear of the bike on the right side near the motor. 2. Align the M4 SCREWS and washers with the holes on the rear right side of the frame. 3.
- Page 20 • Check the condition of both tires and ensure the tread is in good condition, and free from punctures, cracks, and deformations. • Maintain proper tire pressure. Orion Moto recommends a range of 25-35 PSI dependent on the weight of the rider and the type of terrain.
- Page 21 OPERATING BIKE WALK MODE - E12 Parents can help teach kids how the motor feels by using WALK MODE (e12 only). 1. Set gear position to 0 in order to prevent accidental acceleration. The parent can walk alongside the bike and press and hold (-) MINUS. 2.
- Page 22 OPERATING BIKE RACE MODE INSTANT THROTTLE RESPONSE Race Mode has instant throttle response, and all selectable gears allow the bike to reach its maximum speed. Therefore, it’s crucial to ensure that your child has ample open space in front of them to ride safely and avoid any potential collisions. To enable/disable RACE MODE complete the following: 1.
- Page 23 OPERATING BIKE PROPER CLEANING PROCEDURES Follow these guidelines when cleaning your electric balance bike: 1. Turn off the power to the balance bike and unplug it from the charger. 2. Begin by rinsing your electric balance bike thoroughly with cool water to remove loose dirt. 3.
- Page 24 BATTERY CHARGING THE BATTERY It is important that you fully charge your battery before the first ride. Every balance bike is accompanied by a charger designed exclusively for its model. USING AN INCORRECT CHARGER FOR YOUR BIKE MAY RESULT IN THE BATTERY FAILING TO CHARGE AND COULD POTENTIALLY HARM THE BATTERY.
- Page 25 BATTERY BATTERY INFORMATION Lithium iron phosphate (LiFePO4) batteries are often considered superior among lithium batteries for several key reasons. First and foremost is their inherent safety; LiFePO4 chemistry is known for its thermal stability and reduced risk of thermal runaway, making these batteries less prone to overheating or combustion.
- Page 26 • Check the battery with a meter to verify power output or low voltage. • Battery has no voltage: Replace or Repair battery, Contact Orion Customer Service • Battery has voltage: Check for loose connections or replace the digital display and/...
- Page 27 • Check battery connections for any loose or broken wires • The battery may need to be replaced or have the battery repaired. Problem is not listed in this chart • Visit orionmoto.com/support for technical videos or contact your dealer or Orion customer support.
- Page 28 SPECIFICATIONS E12X E16X E20X 250W BRUSHLESS HUB 350W BRUSHLESS HUB 500W BRUSHLESS HUB POWER MOTOR MOTOR MOTOR REMOVABLE 24V 8AH REMOVABLE 36V 8AH REMOVABLE 48V 8AH BATTERY LIFEPO4 BATTERY LIFEPO4 BATTERY LIFEPO4 BATTERY (UL TESTED/APPROVED) (UL TESTED/APPROVED) (UL TESTED/APPROVED) 4 HOURS (RUN TIMES 4 HOURS (RUN TIMES 4 HOURS (RUN TIMES RUN TIME...
- Page 29 What Will Be Repaired or Replaced Under Warranty Orion Moto through its Dealers will repair or replace, at its option, any part that is proven to be defective in material or workmanship under normal use during the applicable warranty period. Warranty repairs and replacements will be made without charge for parts for the specified warranty period.
- Page 30 The consumer absolves our company, its agents, and affiliates from any liability arising from or related to the use or ownership of any product. The consumer fully accepts responsibility and releases the Orion Moto from any personal injuries, fatal injuries, losses, costs, or damages incurred as a result of operating this item.
- Page 32 Q: Do I have to put the bike in race mode every time? A: No, once you've determined the rider is ready for race mode, the bike will stay in that mode until you deactivate it by repeating the process. ORION MOTO 5029 Martin Luther King Freeway Fort Worth, TX 76119 817.350.4520...
