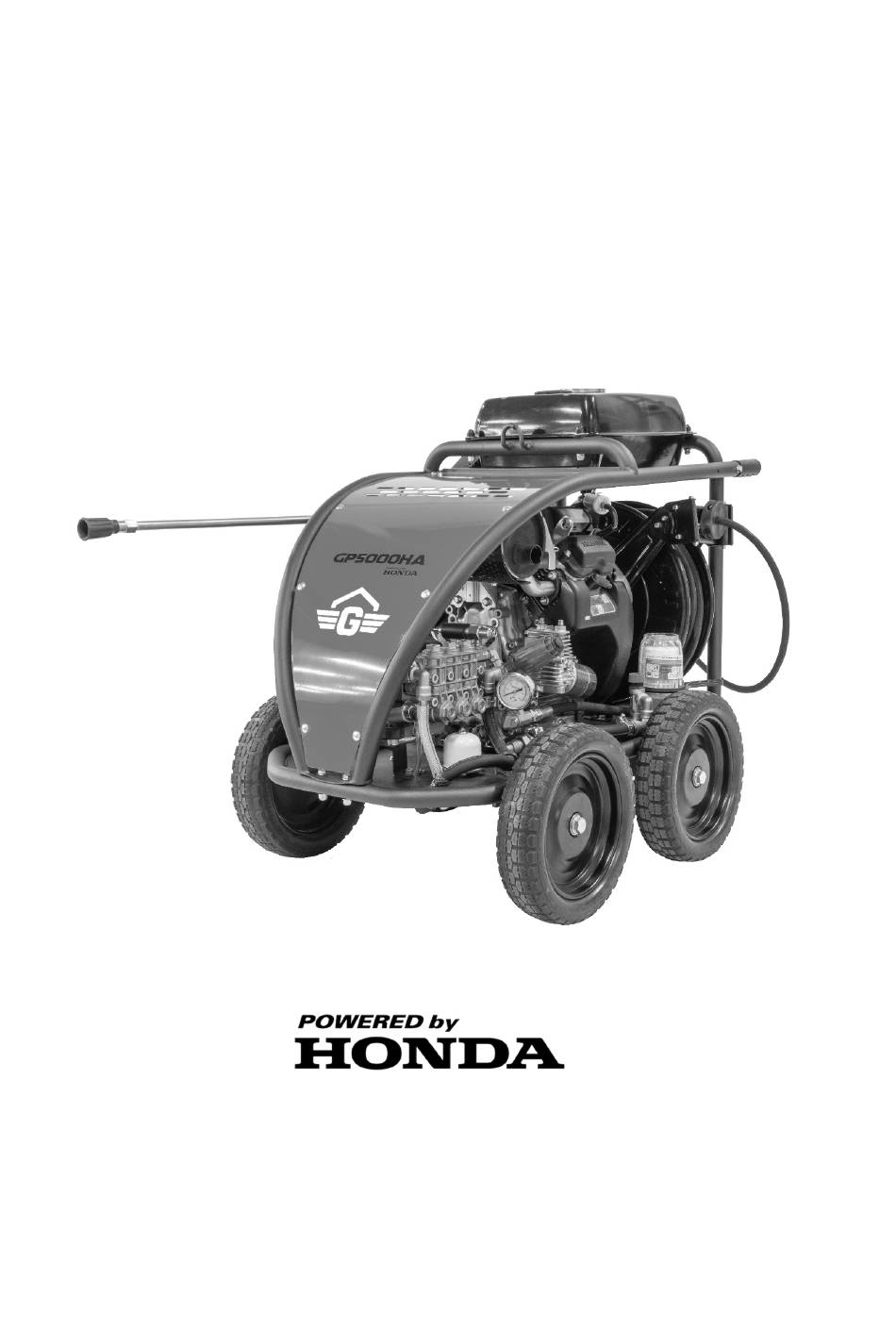

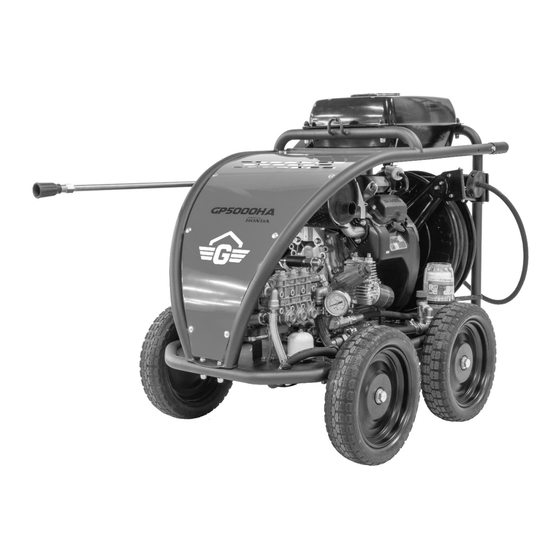

- Page 1 Operation manual GP5000HA Motor-driven Original Manual of Use *The picture of the device is illustrative and it doesn`t have to comply with the actual view of the device...
- Page 2 CONTENTS Product use in compliance with its determination pg. 2 Environment protection ... . ……………..pg. 2 Safety ......…………….. pg. 2 Scope of the supply .
- Page 3 Levels of danger DANGER - Warning before imminent danger, which may cause serious injuries or death. WARNING - Warning before a possible dangerous situation, which could result in minor injuries. WARNING - Warning before a possible dangerous situation, which could result in material injuries. Safety elements WARNING - Safety elements serve for the user protection against injuries and they mustn`t be altered or withdrawn from their operation...
- Page 4 Put the extension into the red gun ending and tighten the ending. Place the hose into bottom part of the gun by pulling out the black ending in the direction toward the gun. After attaching the hose , press the black ending in the direction away from the gun. Check if the hose is fixed to the gun firmly.
- Page 5 DANGER Running engine produces the carbon monoxide, colourless and poisonous without odour. Inhalation of carbon monoxide may cause nausea, headache, dizziness, vomiting and death! The device can be used only in the outer environment where the proper ventilation is ensured. It is also necessary to ensure that the exhausted gases wouldn`t get to the closed rooms through unsealed hatchways.
- Page 6 Turn the ignition switch key to the right and hold it until the engine starts to run - for 5 seconds longest. After starting the engine move the choke control lever SLOWLY back to the switch box cover. If engine does not start to run, check the oil level in the engine, fuel valve position, fuel level in the tank and the water pressure.
- Page 7 Change of engine oil We advise to change the engine oil after use of the device (according to the maintenance plan) Switch off the engine. Let the device cool a little bit, so the temperature is lower than 50°C. You will avoid The warm oil leaks out from potential burn injuries.
- Page 8 Engine Hour meter The device contains an engine hour meter. The total engine hours A ( time cannot be deleted), partial engine hours B ( time can be deleted by button, applicable when the engine is switched off) and immediate engine revolutions C (revolutions measurement is activated automatically during engine run) are recorded.
- Page 9 Safety elements The check valve serves for draining of a small volume of hot water from the pump without any intervention by its operator in order to protect the pump from overheating. There is no overheating hazard during regular operation, since the pump is fed with a constant supply of cold water to ensure its cooling at the same time.
- Page 10 Vacuum sensor in the supply tube The sensor is placed on the armature under the pump Its task is to switch off the engine if the vacuum occurs in the inlet tube which could cause the damage on the pump. Such a situation can occur if water resource sufficiency is low and if water filter is partially or completely dirty.
- Page 11 Pump preparation for the operation The pump is filled up with the industrial oil. Because of the oil temperature change and thermal expansion during the operation, there is an AIR VALVE (C). -The operation of the pump with the low oil level or without oil causes the permanent damage on the pump and ceases the guarantee.
- Page 12 Regulation of the water pressure in the outlet This pump enables to regulate the water pressure in the outlet in the scope of 100 Bar- 350Bar. If you want to change the pressure, turn the controller located on the pump (picture F). Rule: when viewed from the top, the pressure increases if you turn TO THE RIGHT (direction of the watch rotation) and decreases if you turn TO THE LEFT.
- Page 13 Before every use Check the oil level in pump and gearbox ! After first 50 hours Oil exchange in pump Oil exchange in gearbox Every 200 hours Oil exchange in pump Oil exchange in gearbox Battery The device comes with a battery charger. Do not use any other charger. The battery is hermetically sealed and charging with an improper charger will irreparably damage it.
- Page 14 Problems solution Problem Cause Solution 1.The nozzle with a big hole is used 1. Change for the right dimension of the The pump is not able to create the necessary water nozzle 2.The water supply is blocked. pressure, low water flow 3.
- Page 15 Technical data Device type GP5000HA Engine type Honda GX690 688cm3/ 16,5kw Maximal speed 3600 rpm Engine type Four-stroke OHV Torque 48,3 2500 ot./min Sparking plug NGK: ZFR5F 0,7-0,8mm Tank capacity Capacity of the oil filler 1,5L / 5w30 w/o oil...
- Page 16 Product name: High pressure washer Type Serial number ES inspection report Noise level Guaranteed measured noise level GP5000HA xx0001001-xx9999999 1689/3/2021-02 104 dB 106 dB xx0001001-xx9999999 Protokol o skúške 3.5.2021 GF5000HA zo dňa 3.5.2021 TECHNICKÁ INŠPEKCIA a.s., pracovisko KOŠICE, as an accredited inspection body in...
- Page 17 Warranty Certificate Stamp and signature: Product type: Serial number: Date of purchase: In pursuit of service enhancement and simplification of communication with customers, the company Waspper s.r.o. recommends its customers, who purchase this product, to register their product via the manufacturer's website: www.waspper.com. This registration will provide inevitable data for faster processing of your complaints or consulting relevant to purchasing of spare parts and accessories.
