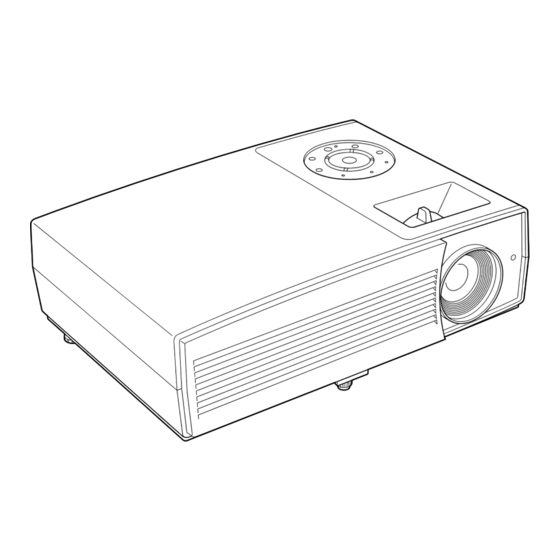

Toshiba TDP-T95E Service Manual

Dlp data projector

Hide thumbs

page of 67

/ 67
Bookmarks

Quick Links

Download this manual

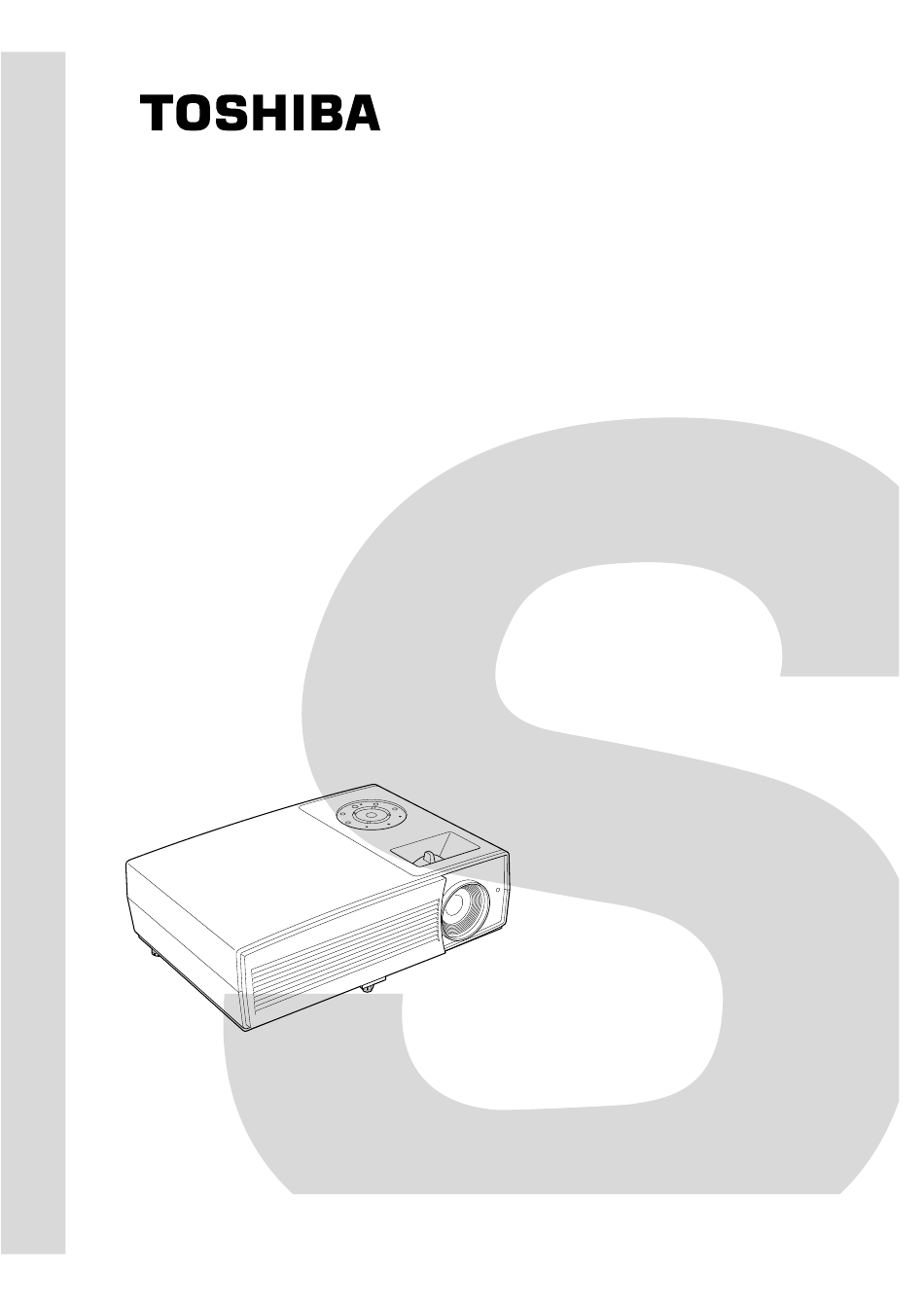

SERVICE MANUAL

DLP DATA PROJECTOR

TDP-T95E,TDP-T95B

TDP-T95U,TDP-T95C

TDP-T100E,TDP-T100B

TDP-T100U,TDP-T100C

The above models are classified as green product (s) (*1), as indicated by the underlined serial number (s).

This Service Manual describes replacement parts for green product (s). When repairing any green product (s), use

the parts described in this manual and lead-free solder (*2).

For (*1) and (*2) , see the next page.

FILE NO. 330-200602GR

Rev.02

Published in Japan, Februry 2006 GREEN

Need help?

Do you have a question about the TDP-T95E and is the answer not in the manual?

Questions and answers

Summary of Contents for Toshiba TDP-T95E

Page 1 This Service Manual describes replacement parts for green product (s). When repairing any green product (s), use the parts described in this manual and lead-free solder (*2). For (*1) and (*2) , see the next page. © TOSHIBA CORPORATION Published in Japan, Februry 2006 GREEN...
Page 2 Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any marketing of new products containing the restricted substances. Increasing attention is given to issues related to the global environmental. Toshiba Corporation recognizes environmental protection as a key management tasks, and is doing its utmost to enhance and improve the quality and scope of its environmental activities.
Page 3 Contents Table of Contents Chapter 1 Specifications Using the Menus Names of the Terminals on the Rear Panel List of Supported Signals Chapter 2 Replaceable Part Hierarchy Required Tools Parts Replacement Chapter 3 SINGOWS 2000 Chapter 4 Firmware Upgrade Chapter 5 Wiring Diagram Block Diagram Chapter 6...
Page 4 Chapter 1 Chapter 1 Specifications List of general specifications Item Specification TDP-T95: 310 W Consumption Power TDP-T100: 380 W TDP-T95: 2.9 kg Weight TDP-T100: 3.0 kg External Dimensions 300 × 99 × 218 mm (W × H × D) (including protruding parts) Cabinet material PC+ABS resin and ABS resin Conditions for usage environment...
Page 5 Chapter 1 CONTROL terminal Pin assignment Signal Description Name Receiving data Consent to send Data set ready Signal ground Request to send Mini DIN 8 Pin Connector No connection Sending data Signal ground lnterface format 1 Communication method RS-232C,9600bps,No Parity,Data Length: 8 bits; Stop Bit Length: 1 bit 2 Communication format STX(02h)
Page 6 Chapter 1 Using the Menus You can call up on-screen menus, and conduct a number of adjustments and settings using the operation buttons on the control panel (main unit side) and remote control. How to use the menus The menu shown below is for operation instructions purposes and might differ from the actual display. 1.
Page 7 Chapter 1 Names of the Terminals on the Rear Panel Name :Main Function (1) CONTROL terminal : When operating the projector via a computer, connect this to the controlling computer’s RS-232C port. (2) MONITOR terminal : Connect to a computer display, etc. (3) AUDIO IN terminal : Input audio signals from a computer, or from video equipment with a component video signal output terminal.
Page 8 Chapter 1 List of Supported Signals List of Supported Signals(RGB signals) This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show flicker or streaking. Please adjust the projector if this happens. Clock (MHz) Resolution Mode...
Page 9 Chapter 1 List of supported signals (Y/PB/PR signals) Signal format fh(kHz) fv(Hz) 480i(525i)@60Hz 15.73 59.94 480p(525p)@60Hz 31.47 59.94 576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00 1080i(1125i)@60Hz 33.75 60.00 1080i(1125i)@50Hz 28.13 50.00 List of supported signals (Video, S-Video signals) Video mode fh(kHz) fv(Hz)
Page 10 Chapter 2 Chapter 2 Replaceable Part Hierarchy The flow chart below shows what parts must be removed to access each replaceable part in the projector. The parts on the first level (Ex. Lamp cover) are accessible without removing any other parts. The move levels down that a part is, the more parts you need to remove in order to access it.
Page 11 Chapter 2 Required Tools Item Photo Driver bit (+) No 2 Box driver M3 Driver bit (+) No 0 Torque driver bit (+) No 1 Nippers Cutting pliers...
Page 12 Chapter 2 Parts Replacement...
Page 13 Chapter 2...
Page 14 Chapter 2...
Page 15 Chapter 2...
Page 16 Chapter 2...
Page 17 Chapter 2...
Page 18 Chapter 3 Chapter 3 SINGOWS 2000 Install the Software on the Computer The software you download is bundled into one .MSI file. Double-click the file to install the signal generating software. The Install Wizard appears,ready to begin the install process. Click the next button.
Page 19 Chapter 3 The Select Installation Folder dialog box appears. Navigate to the location where you stored the software files. Click the next button. The confirm Installation dialog box appears. Click the next button.
Page 20 Chapter 3 The Installing software dialog box appears. The Installation Complete dialog box appears. Click the close button.
Page 21 Chapter 3 Startup the Software Open Windows Exploler, navigate to the location where you stored the files, Then double click the SINGOWS2000.EXE. Moreover, even if it chooses the shortcut of the All programs of start, it can startup .
Page 22 Chapter 4 Chapter 4 Firmware Upgrade Upgrade the software Connect the control cable to the control terminal on the projector. Then plug the RS232C connector on the other end of the cable into a RS232C port on the computer. Open Windows Explorer navigate to the location where you stored the upgrade files, and then double click the Firmware Upgrader.exe.
Page 23 Chapter 4 The upgrade file appears in the Select File box. Select the COM port. Click Flash button.
Page 24 Chapter 4 Press and hold the projector’s [Input] and [Keystone] keys, and then plug in the power cord. The projector starts the Firmware upgrade, [LAMP], [TEMP] and [FAN] LED’s are Green blinking after Orange blinking. The computer begins downloading the upgrade files to the projector. The process may take several minutes.
Page 25 Chapter 4 When the upgrade finishes normally, the following dialog box appears. Click the Close button. The upgrade is complete.
Page 26 Chapter 4 Confirm the software upgrade 1. Power up the projector. 2. On the projector keypad, press the MENU key to display the menus. 3. Press button Right or Left arrow to highlight Setting display. 4. The Setting display dialog box display the software version. These should match the upgrade version you downloaded.
Page 27 Chapter 5 Chapter 5 Wiring Diagram...
Page 28 Chapter 5 Block Diagram Block Diagram 1/2...
Page 29 Chapter 5 Block Diagram 2/2...
Page 30 Chapter 6 Chapter 6 LED Display LED Display (Problems Shown on LED Indicator Combination) Notes When each error occurs,after approx.one minute of abnormal display, the projector turns to the standby state waiting for internal cool down. [ L ] : LAMP, [ T ] : TEMP, [ F ] : FAN, [ O ] : ON...
Page 31 Chapter 6 Troubleshooting Y ou use this section to diagnose problems with the projector. Choose the problem you are trying to diagnose from the list below. The Power, Image and Audio sections provide a variety of symptoms, while the other includes only one page. 1.
Page 32 Chapter 6 No lamp Check the error code log at service mode When there is the error code, refer to the LED error List. When the error code is Lamp error (No.1), remove the lamp to see if it looks good. There should be no ruptures, no bulges, and no cracks in the reflector.
Page 33 Chapter 6 Troubleshooting Image Problems The image is not correct. The projector starts and runs normally. The menus are accessible. The lamp is lit. Upgrade the software to the latest version or reinstall the projector software. Confirm that all image adjustments are set to factory defaults Confirm that the cable and source signal Are good.
Page 34 Chapter 6 Dim image Substitute known good lamp. Replace the lamp. Image brighter? Substitute known good Main board. Image brighter? Replace the Main Board Replace the optical engine Bad or missing tint or color. Distorted image, excess noise, rolling, torn, frozen,” Plaid” image, repeated single image or shifted image. Make sure cables are good.
Page 35 Chapter 6 Troubleshooting Audio Problems No audio or distored audio from the speaker. Make sure cables are good. Problem resolved Is audio OK? What is the problem? No audio from the speaker Audio is distoyed No audio from the speaker. Check the speaker resistance.
Page 36 Chapter 6 Troubleshooting Remote Controller Problems Infrared Remote Problem Install known good batteries in the remote controller. Does the remote work? Problem resolved Use a known good remote with the projector Does the remote work? Problem resolved Replace the Main board Troubleshooting Keypad Problems Keypad does not respond to key presses.
Page 37 Chapter 6 Troubleshooting Menu Problems Menu does not appear on screen. Startup screen and other images appear normal. Try pressing the Menu button on both the remote and keypad. Does the menu appear? If the keypad works and If the remote works and the remote doesn’t, go to Troubleshooting the keypad doesn’t, go to remote control problems...
Page 38 Chapter 6 Operation of Power Supply (APS-M602) The APS-M602 power supply circuit shown as (Fig.1) Output Secondary Input CD/DC (InrushCurrent Rectifier Line Filter Swintching AC Inout Suppression circuit) Circuit Converter Power factor 6.5V Control Circuit 3.4V Lamp Output Feedback Time Sharing Control Multi-output Control Circuit...
Page 39 Chpater 6 B) Reduce input harmonic current Normally switching power supply circuit is capacitor input type. Input current of this power supply has many harmonics, because of the conduction angle of input current is narrow. Therefore, an input current is distorted and this is a cause of low power factor. Main purpose of Power Factor Correction Control Circuit is reducing input harmonic current.
Page 40 Chpater 6 d) Over Voltage Limit Output voltage is detected by winding voltage of Bl-82 (T101).This voltage is same as Vcc of IC101 (pin6).If output voltage becomes over voltage condition, pin 8 of IC101 to be pulled up through zener diode ZD102,then power supply is shut down. e) Over Heat Protection Over heat protection is detected Soldering parts temperature of Ql,Q2(MC102) by TH102 and temperature of winding of T101 by thermo-fuse.
Page 41 Chapter 6 6-12...
Page 42 Chapter 6 6-13...
Page 43 Chapter 6 APS-M602 (ETXTS602MDA/MDE) Troubleshooting Faults 6-14...
Page 44 Chapter 7 Chapter 7 Electrical Adjustment Preparation < Test equipment > 1) Personal computer (Windows PC, OS: Windows 98SE, ME, 2000, XP) 2) Signal generating software SINGOWS2000.MSI(Installer) and V_Ramp.bmp 3) Cables RGB Cable 4) A protractor for Vertical Auto Keystone Calibration <For connection and setting of Personal computer>...
Page 45 Chapter 7 Adjustment Points vs Part Replaced The table below shows you the items to be adjusted according to the type of part you replaced. Adjustment Lighting Keystone Altitude Parts Delay Contrast Position Main Board × Optical Engine × × ×...
Page 46 Chapter 7 Projector Setup Plug in the power cord; turn on main power switch and the power of the projector. How to enter to the Factory Mode (TDP-T95/T100) 1) While the Volume adjustment bar is displayed on the screen, set value to [1], and press the buttons, [Input], [On/Standby] and [Keystone] simultaneously.
Page 47 Chapter 7 C/W Index Delay Adjustment Press [Return] and [Left] buttons simultaneously. For it initialize the value, Press [Keystone] button. Start the signal generating software (SINGOWS2000.exe), the following signal pattern appears and click [PIC] button.
Page 48 Chapter 7 The following Picture dialog box appears. Select the downloaded file of V_Ramp.bmp. Click [ENTRY] button. Double click the V_Ramp window, the following V-Ramp signal appears.
Page 49 Chapter 7 Adjust the C/W index delay by pressing [Left] or [Right] button <STEP 1> Check on blue. Read the value when the horizontal stripes (EX. Fig.2) is minimized and the value is referred to "A." Fig.2 <STEP 2> Check on red. Read the value when the horizontal stripes (EX.
Page 50 Chapter 7 <Keystone Calibration> Press [Input] and [Up] buttons simultaneously. For it initialize the value, Press [Keystone] button. Set the projector on a level surface. Press [Enter] button of the projector. When the adjustment is successfully completed, values changes from default [0]. (Example: The following menu) If it fails, values don’t change from default [0].
Page 51 Chapter 7 Select the KC1 item by pressing [Down] button. Keep projector on 30 degree. Press [Enter] button of the projector. When the adjustment is successfully completed, values changes from default [0]. (Example: The following menu) If it fails, values don’t change from default [0].
Page 52 Chapter 7 Select the KC2 item by pressing [Down] button. Keep projector on -30 degree Press [Enter] button of the projector. When the adjustment is successfully completed, values changes from default [0]. (Example: The following menu) If it fails, values don’t change from default [0]. <Note>...
Page 53 Chapter 7 Select the KC3 item by pressing [Down] button. Set the projector on a level surface and perform heat-run for 30 minutes or more. Press [Enter] button of the projector. When the adjustment is successfully completed, values changes from default [0]. (Example: The following menu) 7-10...
Page 54 Chapter 7 <Sub Contrast> Right - click to display the following color pallets. Click [White] button. Note: Move the mouse cursor out of a screen to avoid the error. Select the Sub contrast item by pressing [Down] button. Press [Enter] button of the projector. When the adjustment is successfully completed, values changes from default [85].
Page 55 Chapter 7 <Altitude> Press [On/Standby] and [Up] buttons simultaneously. For it initialize the value, Press [Keystone] button. Select proper value by pressing the [Left] or [Right] button. Factory setting is 0. The value 1 is more than 500m (1,640ft) and under 1,000m (3,281ft). The value 2 is more than 1,000m (3,281ft) and under 1,500m (4,921ft).
Page 56 Chapter 7 Lighting Position Adjustment When replacing the DMD chip, DMD Board and DMD socket, check the shading error by using the following method. Use White 100% signal from SINGOWS 2000. Check the projected image if shading error is observed or not. It is “Okay”...
Page 57 Chapter 7 Fig.4 Removal of hidden lid (push with a finger) 2) Use 100% White signal. 3) Three adjustment screws are used, and it adjusts so that a lighting position may become in the center of a screen. Finally all screws are fastened, and if shading is lost, it will OK. Three screws (A, B, C) have stopped the mirror.
Page 58 Make sure the video player has an S-video Out port and cables. The player should also have a Composite video port (RCA). Toshiba strongly suggests you use a DVD player to test the Video quality. DVD players reproduce colors better and project Sharper images. The least preferable is a VCR.If you must use a VCR, make sure you use a commercially produces recoding not one recorded from a broadcast source.
Page 59 Chapter 8 Perform the following tests Test Verification Power Up Verify that the proper splash (logo) screen Appears. Connect AC power, and turn the unit on. Verify image quality. Cosmetics and mechanicals Verify that the elevator and leveling foot Are functional. Adjust the projector so that the image is Square.
Page 60 Chapter 8 Test Verification Focus Verify that the image synchronizes properly through the computer 1 input. SINGOWS2000 Cross Hatch image. Verify that image focuses through the full zoom range. Verify there are no problems. Color Wheel Index Delay Verify that the image synchronizes properly through the computer 1 input. SINGOWS2000 Color bar image.
Page 61 Chapter 8 Test Verification DMD Images Verify that each image synchronizes properly through the computer 1 input. SINGOWS2000 White image (Level 100%) SINGOWS2000 Black image (Level 0%) SINGOWS2000 SMPTE image Verify there are no problems System Reset Verify that the image synchronizes after system reset. On the keypad, press the Menu key.
Page 62 Chapter 9 Chapter 9 Spare Parts List Exploded View A100:Cover Top Assy U006:KEY Board B180:Panel Assy Rear U001:PC Board Main Z104:Exhaust Fan SP200:Speaker P850:Lamp Driver Z103:DMD Fan E200:Optical Engin P800:Main Power(F) Z102: Lamp Fan U004:PC Board Remote control Lamp (Not Service parts) Z100,Z101:Intake A210:Cover Assy Lamp A220:Panel Assy Front...
Page 63 Chapter Exploded View(Optics Block)
Page 64 Chapter Other Parts U002 PCB Door SW U003 PCB Sensor MJ03 Thermo SW...
Page 65 Chapter Spare parts list (T95 Series) GREEN Part No Location Description U001 PCB MAIN 75001853 U002 PCB DOOR SW 75001854 U003 PCB SENSOR 75001855 U004 PCB REMOTE CONTROL 75001856 U005 PCB DMD BOARD 75001847 U006 PCB KEY SW 75001848 A100 COVER, TOP ASSY 23571133 A101...
Page 66 Chapter Spare parts list (T100 Series) GREEN Part No No Location Description U001 PCB MAIN 75001849 U002 PCB DOOR SW 75001850 U003 PCB SENSOR 75001851 U004 PCB REMOTE CONTROL 75001852 U005 PCB DMD BOARD 75001847 U006 PCB KEY SW 75001848 A100 COVER, TOP ASSY 23571133...
Page 67 OSHIBA CORPORA ION - , SHIBAURA -CHOME, MINATO-KU, TOKYO 05-800 , JAPAN...
