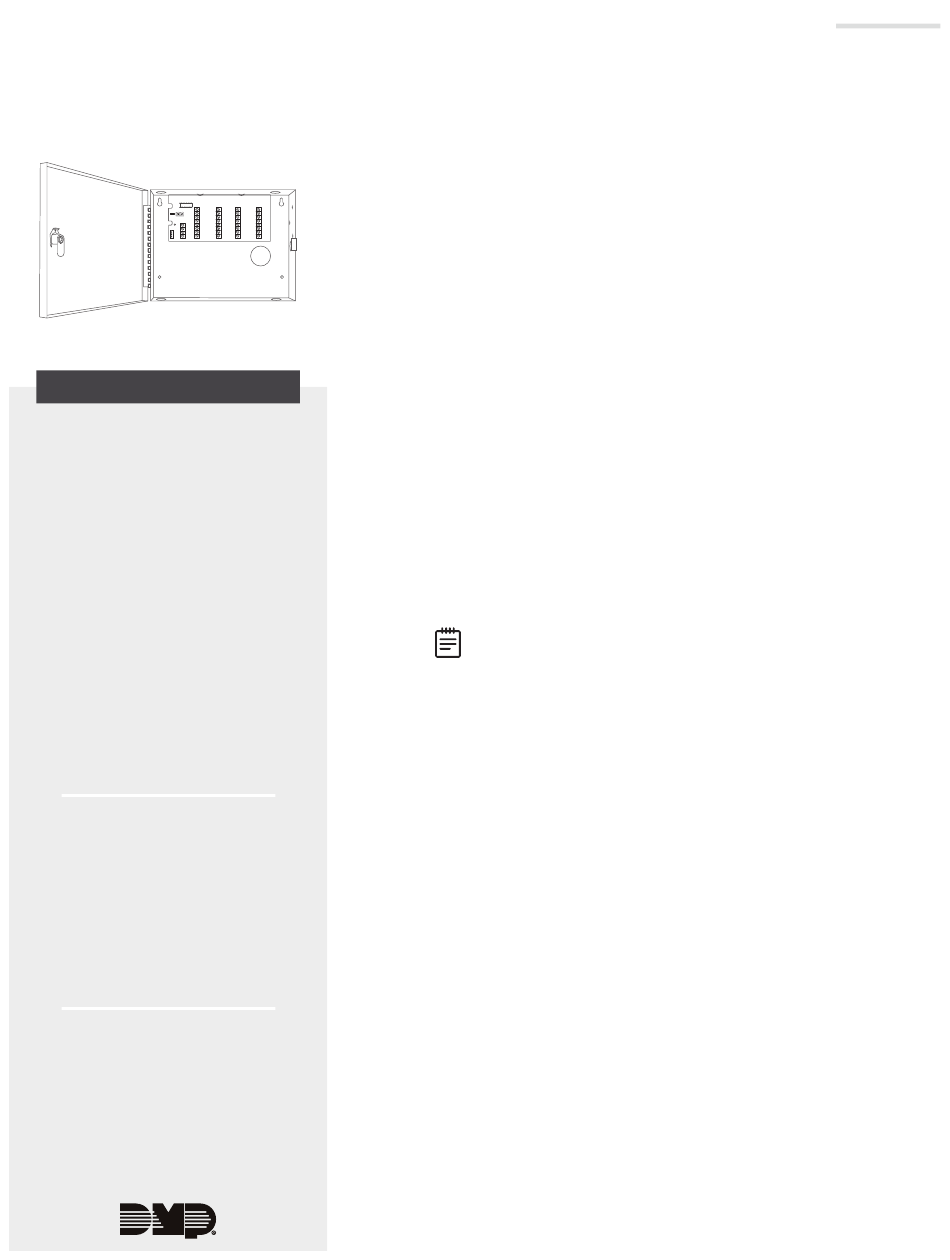

DMP 714-8/16 Installation Manual

714-8/16 AND 715-8/16 ZONE EXPANDERS
Installation Guide
TENS ONES
KYPD LX
0 0
TXD
RED
YEL
GRN
BLK
DESCRIPTION
TENS ONES
KYPD LX 0 0
TXD
RED
YEL
GRN
BLK
The 714-8 and 714-16 provide
an additional eight or sixteen
supervised zones for connecting
burglary and non-powered fire
alarm initiating devices to the panel.
The 715-8 and 715-16 provide an
additional eight or sixteen 12 VDC
ungrounded (Class B) powered
zones for connecting two-wire
smoke detectors.
The zone expanders provide
terminal strips, a jumper for LX-Bus
or Keypad Bus designation, and a
transmit data LED to indicate panel
communication.
All fire device installations
must be in accordance with the
manufacturer instructions, NFPA
standards, and Authority Having
Jurisdiction (AHJ) requirements.
Compatibility
• XT30/XT50 Series Panels
• XR150/XR550 Series Panels
• XF6 Series Fire Control Panels
• 714-8: 1k-4.7k Ohm EOL (Lev E
and higher)
• 714-16: 1k Ohm EOL
• 715-8/715-16: 3.3k Ohm
What is Included?
• One 714-8, 714-16, 715-8, or 715-16
Zone Expander
• Eight or sixteen 1K Ohm Resistors
(714-8/714-16) or 3.3K Ohm
Resistors (715-8/715-16)
• One Model 340 or 350 Enclosure
with Lock and Key
1
Z5+ Z9+ Z13+
Z1+
Z1- Z5- Z9- Z13-
Z2+ Z6+ Z10+ Z14+
Z2- Z6- Z10- Z14-
Z3+ Z7+ Z11+ Z15+
Z7- Z11- Z15-
Z3-
Z4+ Z8+ Z12+ Z16+
Z4- Z8- Z12- Z16-
Z1+ Z5+ Z9+ Z13+
Z5- Z9- Z13-
Z1-
Z2+ Z6+ Z10+ Z14+
Z2- Z6- Z10- Z14-
Z3+ Z7+ Z11+ Z15+
Z3- Z7- Z11- Z15-
Z8+ Z12+ Z16+
Z4+
Z8- Z12- Z16-
Z4-
2
3
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
Reset the panel and enter 6653 (PROG) at a keypad. Press
1.
CMD.
2. In ZONE INFORMATION, program the expansion zones as
any of the panel's burglary or fire zone types. You can also
program zones as an Arming (AR) zone type when they are
being used with key switches.
Press CMD until STOP displays. Press a top row select key or
3.
area to save programming.
MOUNT THE ENCLOSURE
Mount the enclosure in a secure, dry place. It is not necessary
to remove the zone expander circuit board when installing the
enclosure.
The enclosure can be surface or flush mounted using the holes
provided. Each of the four sides have dual 1/2 in. and 3/4 in.
conduit knockouts for running wires out of the enclosure.
Note: The 714-8/16 and 715-8/16 Zone Expanders can be
mounted in a Model 350A Enclosure.
WIRE THE ZONE EXPANDER
The zone expanders provide a 3-pin header with jumper used to
select the connection type.
To connect the expander to the Keypad Bus, place the jumper
across the two leftmost pins. To connect the
expander to the LX-Bus, place the jumper across the two
rightmost pins. For more information, refer to Figure 1.
Connect to the LX-Bus
To wire the 714-8/714-16, join the red, yellow, green, and black
wires to a 4-wire harness and connect it to the LX-Bus.
To wire the 715-8/715-16, connect the red wire to panel Terminal 11
(Smoke power terminal). This allows Sensor Reset to drop power
to the module and devices connected to its zones. Join the
yellow, green, and black wires to a 4-wire harness and connect it
to the LX-Bus.
Connect the 714-8/714-16 to the Keypad Bus
1. Connect the red, yellow, green, and black wires to panel
Terminals 7, 8, 9, and 10 respectively.
2. Observe polarity and wire the zones.
3. For 714-8 expanders with hardware Level E or higher,
the expander will read any resistor from 1k-4.7k Ohms
without additional programming. For 714-8 expanders with
hardware Level D or lower and 714-16 expanders, install the
included 1K Ohm EOL resistors.
