Summary of Contents for Westinghouse WS512AWS

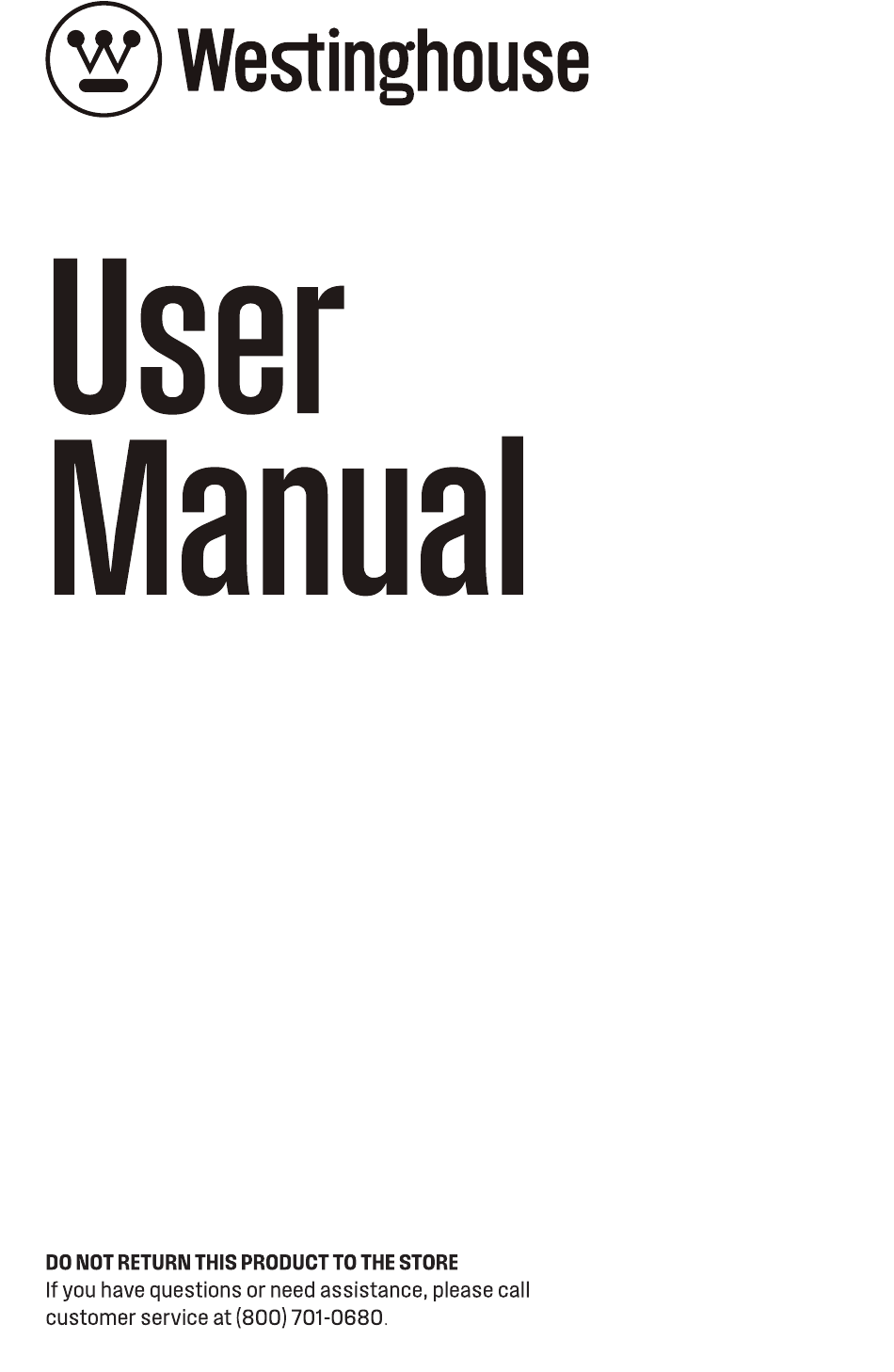

- Page 1 Products: WS512AWS 5. 1 .2 Channel Sound Bar with Dolby Atmos® and Wireless Subwoofer...
- Page 2 Contents Important Safety Instructions ........................3 Safety ....................................3 Caution ....................................4 Warning ..................................... 4 What’s in the Box ............................5 Identifying the Parts ............................. 6 Soundbar ..................................6 Wireless Subwoofer ................................. 6 Remote Control ..................................7 Prepare the Remote Control .............................7 Replace the Remote Control Battery ..........................7 Placement and Mounting ..........................
- Page 3 1. Important Safety Instructions third grounding prong. The wide blade or the CAUTION third prong is provided for your safety. If the RISK OF ELECTRIC SHOCK DO provided plug does not fit into your outlet, NOT OPEN consult an electrician for replacement of the obsolete outlet.
- Page 4 1.2 Caution Battery usage CAUTION Use of controls or adjustments or performance To prevent battery leakage which may result in of procedures other than those described bodily injury, property damage, or damage to the herein, may result in hazardous radiation apparatus: exposure or other unsafe operation.
- Page 5 2. What’s in the Box Sound bar Wireless Subwoofer Remote Control HDMI Cable AC Power Cord x 2 This product is warranted by Electronics USA, Inc. “ ”) against defects in materials and workmanship. Except where restricted by law, this warranty applies only to the original purchaser of a new product (“Original Customer”...
- Page 6 3. Identifying the Parts 3.1 Soundbar Remote Control Sensor Receive signal from the remote control. Display Window Show the current status. (ON/OFF) button Switch the soundbar between ON and Standby mode. (SOURCE) button Select the play function. +/－( VOL) button Increase/decrease the volume level.
- Page 7 3.3 Remote Control Switch the soundbar between ON and STANDBY mode. Select the play function. 3 + / － (VOL) Increase/decrease the volume level. 4 BASS + / － Adjust bass level. 5 MOVIE Select a MOVIE sound effect. Select the Bluetooth mode. Play/pause/resume playback in Bluetooth/USB mode.
- Page 8 4. Placement and Mounting 4.1 Placement If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen. If your TV is attached to a wall, you can mount the soundbar on the wall directly below the TV screen.
- Page 9 5. Connections Use with Roku TV • If you have a Roku TV™, simply plug in the HDMI 5.1 Dolby Atmos® cable to the eARC/ARC ports and follow the Roku TV Ready™ on-screen instructions. Dolby Atmos gives you Immersive listening experience by delivering sound in three dimensional space, and all the richness, clarity, and power of Dolby sound.
- Page 10 Use a RCA to 3.5mm audio cable to connect 6.2 Manual pairing the TV’s audio output sockets to the AUX Ensure that all the cables are well connected socket on the soundbar. and switch the soundbar on. Press and hold the PAIR button on the rear 5.5 Connect Power of the subwoofer for a few seconds.
- Page 11 8. AUX / OPTICAL / HDMI • To switch the soundbar off completely, remove the mains plug from the mains socket. Operation • Please turn the soundbar off completely to save energy when not in use. Ensure that the soundbar is connected to the TV or audio device.
- Page 12 Bluetooth® mode. The display will show NO BT. range. On the Bluetooth device, switch on Bluetooth, search for and select “WS512AWS” to start connection Wait until you hear the voice prompt from the soundbar and the display panel shows "BT", the system is successfully connected.
- Page 13 11. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this soundbar, check the following points before requesting service. Problem Solution No power • Ensure that the AC cord of the apparatus is properly connected . •...
- Page 14 12. Specifications Brand Westinghouse Model WS512AWS Soundbar Power Supply AC 100-240V~ 50/60Hz 45 W Power Consumption < 0.5 W (StandBy) 500mA Dimension (WxHxD) 39.37" x 2.56" x 3.74" (1000 x 65 x 95 mm) Net weight 7.3 lbs (3.31 kg)
- Page 15 HDMI Licensing Administrator, Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Westinghouse is under license. Other trademarks and trade names are those of their respective owners.
- Page 16 FCC Statement : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 17 203022707 WS512AWS_IFU_V04_240715...
