RTD Embedded Technologies SATA34106
Drive Carrier Module
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
Used and in Excellent Condition
Open Web Page
https://www.artisantg.com/51298-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SATA34106 and is the answer not in the manual?

Questions and answers

Summary of Contents for rtd SATA34106

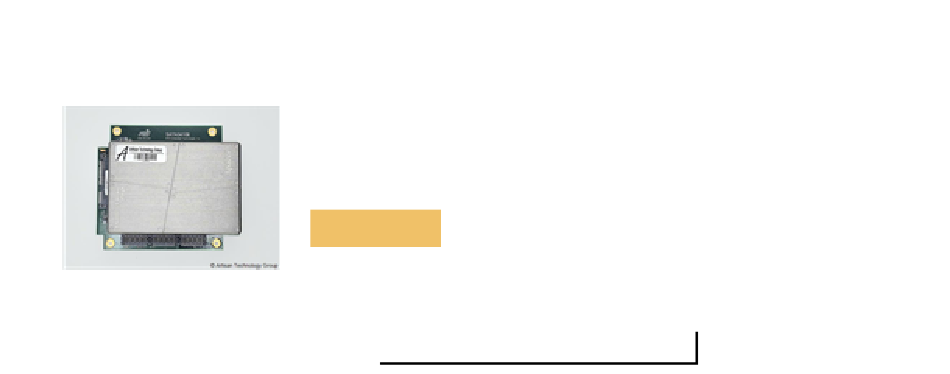

  • Page 1 RTD Embedded Technologies SATA34106 Drive Carrier Module In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/51298-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 SATA34106 SATA Drive Carrier User’s Manual BDM-610020085 Revision B ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...
  • Page 3 HiDANplus, “MIL Value for COTS prices”, multiPort, and PC/104EZ are trademarks, and “Accessing the Analog World”, dataModule, RTD, and the RTD logo are registered trademarks of RTD Embedded Technologies, Inc. PS/2, PC/XT, PC/AT, and IBM are trademarks of International Business Machines Inc. MS-DOS, Windows, Windows 95, Windows 98, and Windows NT are trademarks of Microsoft Corp.
  • Page 4 SATA34106 SATA Drive Carrier ® www.rtd.com ISO9001 and AS9100 Certified “Accessing the Analog World” ®...

  • Page 5: Contact Information

    Contact Information RTD Embedded Technologies, Inc. 103 Innovation Blvd. State College, PA 16803-0906 Phone: +1-814-234-8087 Fax: +1-814-234-5218 E-mail: sales@rtd.com techsupport@rtd.com Internet: http://www.rtd.com 4 SATA34106 SATA Drive Carrier BDM-610020085 Rev B...

  • Page 6: Table Of Contents

    SATA34106 Connector Locations........
  • Page 7 6 SATA34106 SATA Drive Carrier BDM-610020085 Rev B...

  • Page 8: Chapter 1 Introduction

    Chapter 1 Introduction This manual provides comprehensive hardware information on the SATA34106. This manual is organized as follows: Chapter 1 Introduction introduces product variations and their main features and specifications Chapter 2 Connecting the SATA Drive Carrier provides information on installing the SATA drive carrier in a system Appendix 1 IDAN™...

  • Page 9: Sata34106 Sata Drive Carriers

    This manual provides instructions on how to install a 2.5” SATA drive in the SATA34106, and how to install the SATA34106 module into a PCI/104-Express or PCIe/104 system. It will help you get the SATA drive carrier module up and running quickly, and will also provide enough detail about the board and its functions so you can get maximum use of its features in the most demanding applications.

  • Page 10: Ordering Information

    There are several versions of the SATA drive carrier module, some of which are designed for specific usage in an IDAN frame. Stand Alone Models The base design variant, intended for use without an RTD system enclosure, may be ordered with the following model number: –...

  • Page 11: Features

    Features Some of the key features of the SATA drive carrier include: • Adds one 2.5” SATA (Serial ATA) drive to a system using the PCIe/104 Type 2 bus interface on select RTD cpuModules – Stack up to 2x SATA drive carrier modules in one system •...

  • Page 12: For More Information

    For More Information Contact RTD if you need further assistance. RTD Embedded Technologies, Inc. 103 Innovation Blvd. State College, PA 16803-0906 Phone: +1-814-234-8087 Fax: +1-814-234-5218 E-mail: techsupport@rtd.com sales@rtd.com Internet: http://www.rtd.com BDM-610020085 Rev B For More Information...
  • Page 13 12 SATA34106 SATA Drive Carrier BDM-610020085 Rev B...

  • Page 14: Chapter 2 Connecting The Sata Drive Carrier

    Connecting the SATA Drive Carrier The SATA34106 SATA drive carrier module interfaces easily to PCI/104-Express and PCIe/104 systems via the PCIe/104 Type 2 bus connector. This chapter provides general installation guidelines for the SATA34106 as well as information on all connectors.
  • Page 15 Turn off power to your PCI/104-Express or PCIe/104 system and unplug the cord. Ground yourself with an anti-static strap. Line up the pins of the SATA34106’s bottom side connector with the PCIe/104 Type 2 bus of the stack and gently press the module onto the stack.

  • Page 16: Sata34106 Connector Locations

    (CN1 - Top, CN2 - Bottom) Figure 2 SATA34106 Connector Locations Note Pin 1 of the PCIe/104 Type 2 bus connectors is indicated by a silk screen border at the corner of each connector on the top and bottom of the board. Pin 1 of each connector matches when stacking with other PCIe/104 Type 2 modules.

  • Page 17: Pcie/104 Type 2 Bus (Cn1 & Cn2)

    Table 2 lists the pinout of the PCIe/104 Type 2 bus connector. Connector CN1 on the bottom side of the SATA34106 is the source for the signals of the cpuModule’s PCIe/104 Type 2 bus. The only connections on the top-side PCIe/104 Type 2 bus connector (CN1) that are not directly passed through from the bottom-side connector (CN2) are the SATA links.
  • Page 18 Table 2 PCIe/104 Type 2 Bus Signal Assignments Signal Signal Pass-through Pass-through +3.3V +3.3V Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through...
  • Page 19 Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through SATA_1Tp SATA_0Tp SATA_1Tn SATA_0Tn Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through SATA_DET#1 SATA_DET#0 SATA_PWREN#1 SATA_PWREN#0 18 SATA34106 SATA Drive Carrier BDM-610020085 Rev B...
  • Page 20 Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through Pass-through 1.Signals marked with (#) are active low. 2.For a description of SATA lane usage on the SATA34106, refer to SATA Link Shifting—page 20. BDM-610020085 Rev B PCIe/104 Type 2 Bus (CN1 & CN2)

  • Page 21: Sata Drive Connector (Cn3)

    SATA Link Shifting The SATA34106’s 2.5” SATA Drive Connector (CN3) utilizes the first SATA link on the PCIe/104 Type 2 bus. As a result, the unused SATA link on the bus is shifted from the bottom-side PCIe/104 Type 2 connector (CN2) to the top-side (CN1).

  • Page 22: Appendix 1

    RTD modules installed in IDAN frames are called building blocks. IDAN building blocks maintain the simple but rugged PC/104 stacking concept. Each RTD module is mounted in its own IDAN frame and all I/O connections are brought to the walls of each frame using standard PC connectors. No connections are made from module to module internal to the system other than through the PC/104 and PC/104-Plus bus, enabling quick interchangeability and system expansion without hours of rewiring and board redesign.

  • Page 23: Idan-Sata34106

    IDAN-SATA34106 The IDAN-SATA34106 is a SATA34106 SATA Drive Carrier packaged in an IDAN frame which permits easy removal of data from a PCI/104-Express or PCIe/104 system. Note Photographs not to scale. Figure 4 IDAN-SATA34106 Figure 5 IDAN-SATA34106, Example Configurations 22 SATA34106 SATA Drive Carrier...

  • Page 24: Appendix 2

    RTD Embedded Technologies, Inc. warrants the hardware and software products it manufactures and produces to be free from defects in materials and workmanship for one year following the date of shipment from RTD Embedded Technologies, Inc. This warranty is limited to the original purchaser of product and is not transferable.
  • Page 25 24 SATA34106 SATA Drive Carrier BDM-610020085 Rev B...
