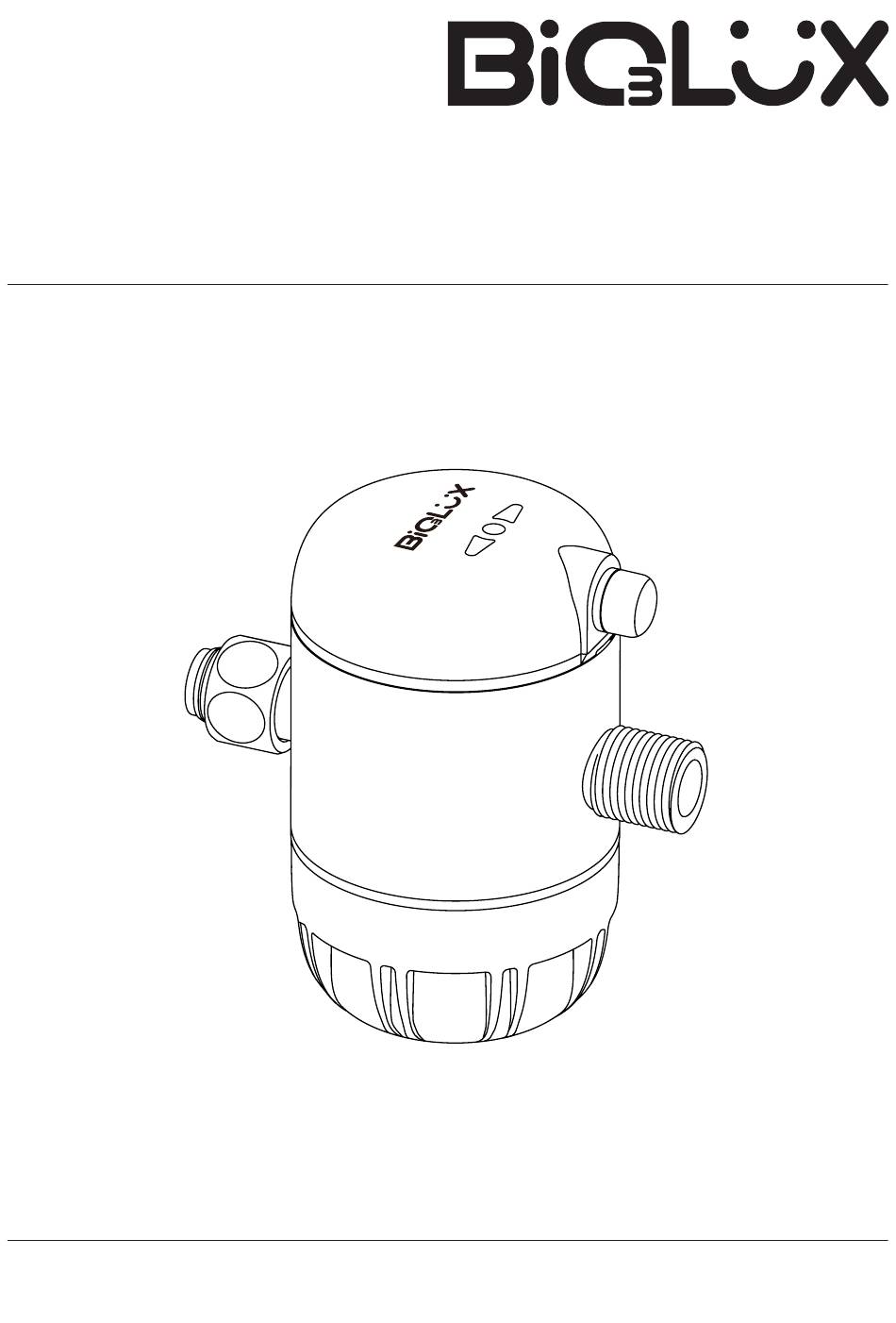

- Page 1 WATER SANITATION SYSTEM WSS120 Model EOS7211-Q INSTALLATION & OPERATION MANUAL BIOTEK ENVIRONMENTAL SCIENCE LTD. www.besgroups.com...
-
Page 3: Preface
VERSION: 2022.09 Biolux is a division of Biotek Environmental Science Ltd. ("BES"). BES is a global leading electrolytic technology developer and product manufacturer with pioneering ozone application knowledge and currently holds many exclusive... -
Page 4: Table Of Contents
1.3 KEY COMPONENTS 1.4 SPECIFICATIONS 2. INSTALLATION 2.1 PRECAUTIONS BEFORE INSTALLATION 2.2 INSTALLING THE UNIT 3. OPERATION 3.1 CONTROL KEYS & INDICATORS 3.2 STARTING YOUR WSS120 4. MAINTENANCE 4.1 REPLACEMENT CYCLE OF EOG CELL 4.2 CELL CARTRIDGE REPLACEMENT 4.3 CELL CARTRIDGE CLEANING PROCEDURE 5. TROUBLESHOOTING WARRANTY INFORMATION... -
Page 5: Packaging Contents
PACKAGING CONTENTS In order to ensure that the products can be delivered to consumers completely, BES will confirm the integrity of accessories and packaging through quality control before the products are sold. After you receive the product, please check whether there are any packaging defects, cracks, joint damage, etc., to confirm that there is no damage during transportation. -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION To avoid personal injury or property damage to the user or others, please follow the following safety instructions : Explanation of Safety and Notice Symbols WARNING indicates a hazardous situation which, if not WARNING avoided, COULD result in death or serious injury. CAUTION indicates a hazardous situation which, if not CAUTION avoided, COULD result in injury or property damage. - Page 7 Stop using the product immediately if you notice any of the following ‧ symptoms indicating abnormality or malfunction: - The Body of product is abnormally hot or deformed. - Smoke coming from the product or there is burning smell. - Some part of the product is cracked, loose, or unstable. - The product makes strange noises.
- Page 8 SAFETY INFORMATION OF OZONE Ozone is categorized as “generally regarded as safe” (GRAS), and is approved by the US Food and Drug Administration (FDA) for food service use as an antimicrobial additive and a disinfectant for food contact surface. The Centers for Disease Control and Prevention (CDC) has also supported that ozone is a safe and effective sanitation method in drinking water, effective against even some of the most resistant pathogens.
-
Page 9: Product Information
PRODUCT INFORMATION 1.1 PRODUCT DESCRIPTION Water sanitation system WSS120 is very simple to use and suitable for installation in home kitchens and bathrooms. The instant ozonated water of WSS120 can be used for sanitation and deodorization. The system applies a revolutionary advanced electrolytic ozone technology, which features on-demand contribution of reliable sanitizing benefits of dissolved ozone in effective and safe manners. -
Page 10: Key Components
1.3 KEY COMPONENTS Side View 1. Power Cord and Power Socket 2. Programming Port 3. EOG Status Indicator 4. Electrolytic Ozone Generator (EOG) Cell Cartridge 5. Serial Number... - Page 11 Top View 1. Control Button - Mode 2. Control Button - Reset 3. Status Indicator Electrolytic Ozone Cell S/N: 11QA00001 Commencing Date: Bottom View 1. Water Inlet 2. Water Outlet 3. EOG Serial Number Sticker...
-
Page 12: Specifications
1.4 SPECIFICATIONS Model EOS7211-Q Ozonated Water Output Approx. 120 mg/hr Ozone Production 1/2”Movable Nut / WATER TUBE SPEC. 1/2”External Thread (Male) (INPUT/OUTPUT) Ф73 x W118 x H131 mm DIMENSIONS 473 g WEIGHT (Net) IP54 IP CLASS Clean or Filtered Water Quality Up 1450 LPH at 3 kg/cm with 1/2”... -
Page 13: Installation
INSTALLATION 2.1. PRECAUTIONS BEFORE INSTALLATION This device is designed and engineered for easy integration into existing water systems. Please check the device for damage or shortage before installation and be sure you have the tools. If any parts are damaged, contact your supplier IMMEDIATELY. Do NOT install damaged parts. -
Page 14: Installing The Unit
2.2. INSTALLING THE UNIT ‧ IMPORTANT INFORMATION The diameter of water inlet and outlet is 1/2" (female inlet /male outlet). Installation position of the equipment must be placed after the water filters. A shut-off valve in front of the water inlet is recommended to facilitate future maintenance or replacement of the EOG cell cartridge. -
Page 15: Mounting The Unit
‧ MOUNTING THE UNIT You can fix the device on the wall by a wall-mount (Attachment). Please follow the previous section "Precautions before installation" to select an appropriate location, and follow descriptions below to secure the device. Choose the way to fix the wall-mount according to the direction of water inflow Water Flows form Left to Right Water Flows form Right to Left... - Page 16 Connect input water tube Connect output water tube Turn on the water supply. Test for leaks at each connect point. Water Flow Shut-Off Valve Water Flow Shut-Off Valve Water Flow Water Flow...
- Page 17 ‧ STARTING YOUR WSS120 Connect the power adaptor plug with the power socket of the device. Ensure all plumbing connections are secured and leak-free. Plug the power adaptor into the wall electricity outlet to switch on the device. Power Adaptor...
-
Page 18: Operation
OPERATION 3.1 CONTROL KEYS & INDICATORS MODE key RESET key Select Mode Reset the Counter (Refer to Sec. 3.2) (Refer to Sec. 4.2) Status Indicator ‧ Slow Blinking - Faucet Mode - System self-check 30 sec Steady Solid ON - Laundry Mode Fast Blinking - BLUE/WHITE Light blinking alternately: EOG cell abnormal... - Page 19 EOG Status Indicator ‧ Steady Solid ON EOG working on - Blue LED: Normal condition - Yellow LED: EOG replacement cycle is due * EOG circuit short or abnormal if the Yellow LED lights steady on all the time. Slow Blinking - Blue LED: System self-check 30 sec.
-
Page 20: Select Mode
3.2 START YOUR WSS120 There is no ON/OFF control switch with the unit. The unit is switched ON by connecting the power supply cord into a wall electrical outlet (power supply). All water pipeline connections should be completed before the device powered on. After the unit is powered on, the buzzer will beep once, a 30-second system self-check will be performed. - Page 21 PERFORMANCE OF EOG GENERATING ‧ THE OZONE WATER When the EOG starts working, EOG status indicator turns steady ON in blue. However, if the EOG recommended replacement cycle is due (the EOG status indicator flashes slowly in yellow when the unit in standby), the EOG indicator will be steady yellow when the EOG cell is working.
-
Page 22: Maintenance
MAINTENANCE 4.1 RECOMMENDED REPLACEMENT CYCLE OF EOG CELL To get the best performance, it is recommended to replace the EOG cell after 500 working hours of usage*. The unit equipped a built-in timer that will remind you when the usage hours expired: the EOG status indicator blinks slowly in Yellow when stand-by and the EOG status indicator will light steady Yellow when the EOG cell is producing ozone water. -
Page 23: Cell Cartridge Replacement
4.2 EOG CELL CARTRIDGE REPLACEMENT The EOG cell cartridge can only be obtained from Biolux or BES authorized distributors. Please confirm the product model and serial number before ordering. Disconnect power supply. Close the water shut-off valve or disconnect input water. - Page 24 Reverse the new EOG cell cartridge, write down the date on the serial number sticker in permanent marker. Reverse the procedures described above and make sure the dot one the metal ring lined up the lock icon on the device. Reset the timer: Follow the method below to reset the timer so that you can get the replacement alarm at correct time in the future.
-
Page 25: Cell Cartridge Cleaning Procedure
4.3 EOG CELL CARTRIDGE CLEANING PROCEDURE Decreased EOG cell generation efficiency may be caused by scale build up on its electordes. Please follow the steps below to clean it: 1. Power off the Unit 2. Fill the EOG Cell Cartridge with Scale Cleaner Close the shut-off valve in front of the unit, detach the EOG cartridge as described in section 4.2. -
Page 26: Troubleshooting
TROUBLESHOOTING Reference the following guide to self-check your problems before requesting repairs. If you come into a conclusion that problem has occurred, do NOT attempt to disassemble and repair the product yourself, but contact BES Group or your dealer for support. Please have the model number and serialnumber of the device available when calling for support. - Page 27 EOG status indicator lights steady Yellow. Recommended replacement cycle of the EOG cell Possible Cause cartridge is due. Replace a new EOG cell cartridge (Refer to. Sec. 4.2) Corrective Action * Contact your Biolux dealer for the EOG cell cartridge.
- Page 28 There is no water output, but the EOG cell is activated to Problem 5 produce ozone water and shut down within seconds. Possible Cause There exists water hammer effect within the water line. Install a water hammer arrester or reduce the water Corrective Action pressure.
-
Page 29: Warranty Information
When installed in accordance with manufacturer’s recommendations, and under normal use and service, new Biolux WSS120 units are warranted to be free of defects due to poor materials or workmanship for the period of time listed... - Page 30 Memo...
-
Page 32: Contact Information
CONTACT INFORMATION BES Group / Biotek Environmental Science Ltd. info@besgroups.com www.besgroups.com...
