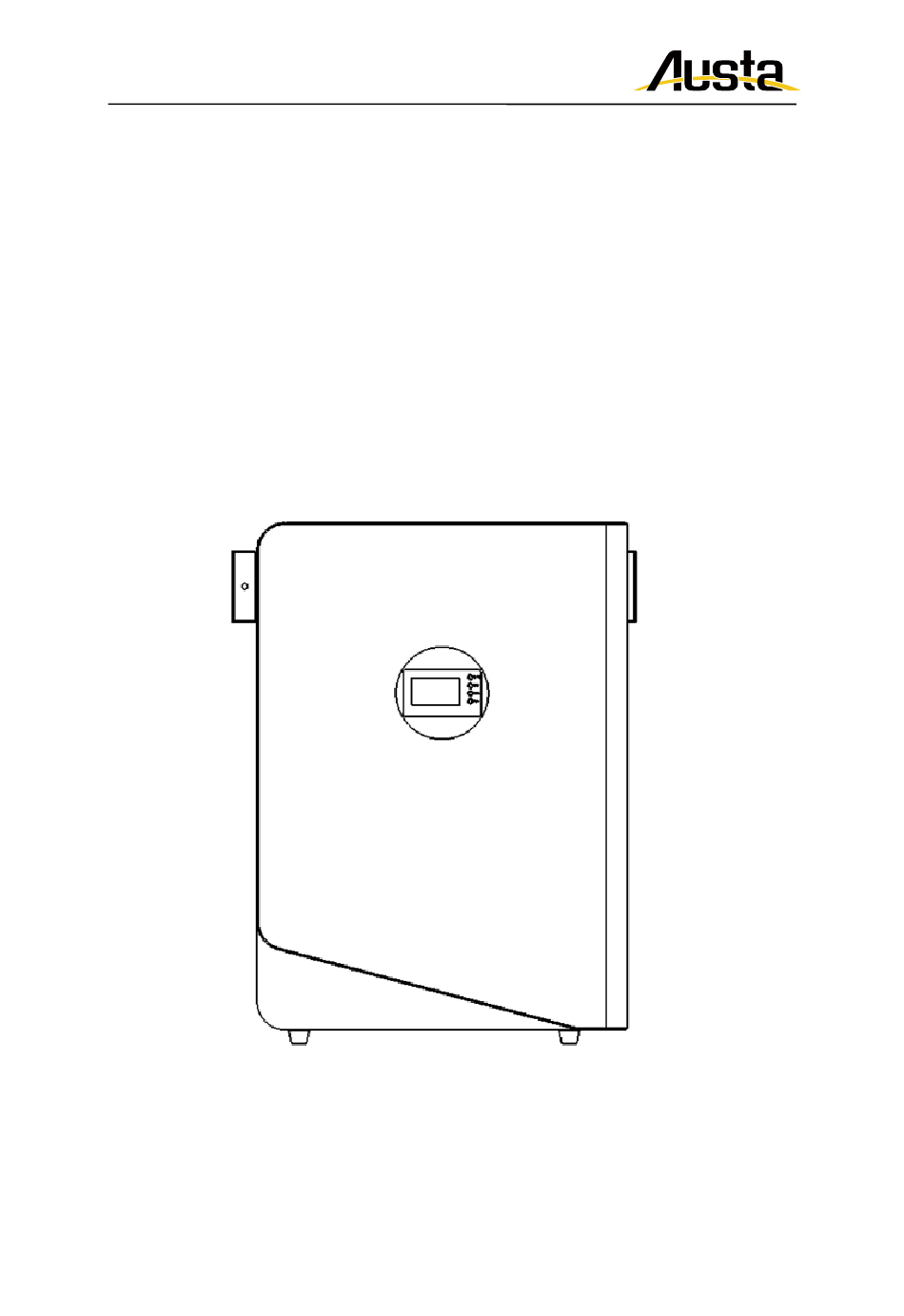

- Page 1 No.136.Haichuan Rd,Jiangbei District 315600 Ningbo,P.R.C AU51105-W 51.2V-105Ah Wall Mounted Battery Operating Instructions...
- Page 2 This manual is intended for the AU 5 . 3 kWh Energy Storage battery. Product Liability Statement 1 Austa accepts no liability for accidents caused by failure to follow these instructions. Ltd. will not be responsible for any accident caused by the operation not in accordance with the provisions of this manual.
- Page 3 CONTENT 1. Safety Introduction ........................4 1.1 Important Safety Instructions ..................4 1.2 Warnings in this Document .....................4 1.3 Battery Handing Guide ....................5 1.4 Response to Emergency Situations ................5 1.4.1 Leaking Batteries ....................5 1.4.2 Fire ...........................5 1.4.3 Wet battery ......................6 1.4.4 Damaged Battery ....................6 1.5 Installers ..........................6 1.6 Notes on use........................7 1.7 Scrap Battery ........................
- Page 4 A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice which if not correctly performed, could result in damage to or destruction of part or all of the Austa equipment and/or other equipment connected to the equipment or personal injury. Symbol...
- Page 5 Do not use cleaning solvents to clean the battery. 1.4 Response to Emergency Situations The Austa battery is designed with multiple safety strategies to prevent hazards resulting from failures. However, Austa cannot guarantee their absolute safety for uncertain situations. 1.4.1 Leaking Batteries If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas.
- Page 6 Do not immerse the battery and accessories in water or other liquids and protect them from moisture.If the battery is wet or submerged in water, do not try to access it. Contact Austa hot line or your distributor for technical assistance.
- Page 7 1.6 Notes on use Short-circuiting of the positive and negative outputs should be avoided.It is prohibited to use this battery in series or parallel with other models and other manufacturers' ba tteries. 1.7 Scrap Battery For scrap battery(-ies), please treat with local laws or regulations to recycle or scrap. 1.8 Contact Information Use the contacts for technical assistance.
- Page 8 3. Product Introduction 3.1 Technical Specifications...
- Page 9 3.2 Indicator and Ports Item Designation Definition Switch Air switch Indicator light Displays power level and indicator light (red for alarm) PCS-RJ45 communication connector Port Port Slave RJ45 output Port Slave RJ45 input Output negative Connect PCS negative Input positive Connect PCS positive Pushbutton Low pressure switch pushbutton...
- Page 10 3.3 LCD display and key operation instructions 3.3.1 LCD display description The display has four buttons, namely ENTER, UP, DOWN and EXIT, through the operation of which you can view the BMS real-time sampling data, parameter information, fault protection status and other BMS information. 3.3.2 Description of key operation ENTER button is the menu index button, when the display is in standby mode, press ENTER button continuously to switch to the display page of...
- Page 11 Figure 3: Battery information page UP and DOWN buttons UP and DOWN buttons are up and down page buttons, through the operation of the buttons can be up and down page to view the BMS real-time sampling data information, a variety of protection parameter information, alarms and fault status and a series of information;...
- Page 12 4 Battery operating conditions 4.1 Ambient temperature of use Discharge: -20℃~50 Charging:0℃~50℃ Storage temperature:-20-45℃(≤one month)0-35℃(≤one year)SOC:≥ 4.2 storage Batteries should be stored as much as possible in an indoor environment with a relative humidity of ≤90%, (dry, ventilated and clean environment, avoiding contact with corrosive substances, principle sources of ignition and heat, and with the batteries in a state of 50%-70%, and in order to prevent over-discharging, charging 1H (0.2C) is carried out every other month).
