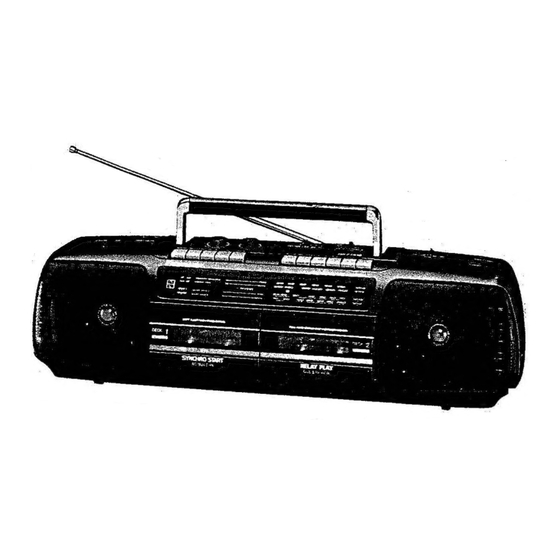

Panasonic RX-FT510 Service Manual

MECHANISM SERIES (SG-20W)
@ SPECIFICATIONS
General:
Power Requirement:
Power Consumption:
Power Output:
Speaker:
Jacks:
- Input;
Output;
Dimensions (W x H x D):
Weight:
AC; 110~127V/200~220V
230~250V,50/60Hz
17W
Battery; 9V (SIX UM-1 L20/LR20
Batteries)
28W (14W x 2)...PMPO
Woofer; 10 cm eynemie Speaker
(2.72)
Tweeter; 1.5cm Ceramic Speaker
CD/LINE IN; 398 mV, 47 kQ
_ HEADPHONES; 329, 03.5
566 x 156 x 167 (mm)
3.1 kg without batteries
Notes:
RX-FT510
Radio Section:
Radio Frequency Range:
Intermediate Frequency:
Sensitivity:
Tape Deck Section:
Frequency Response:
Tape Speed:
Track System:
Tape Deck Section:
Frequency Response:
Recording System:
Tape Speed:
Track System:
1. Weight and dimensions shown are approximate.
2. Design and specifications are subject to changes without notice.
Panasonic
ORDER NO. MD9107075C3
Radio Cassette
Color
Saudi Arabia and
Kuwait
FM; 88~108 Méia
MW; 530~1605 kHz
SW1; 2.3~7.0 MHz
SW2:; 7.0~22.0 MHz
FM; 10.7 MHz
AM; 455 kHz
~ FM; = 3.5yV/50 mW output...(G)
FM; = 3.2uV/50 mW output...(GC)
(-3dB Limit Sens.)
MW: 110nV/m/50 mW output...(G)
MW; 100nV/m/50 mW output...(GC)
SW1; 100nV/m/50 mW output
SWe2; 5.0uV/50 mW output
TAPE 1
70~12,000 Hz
4.8 cm/s(1 7/8 ips)
4-track 2-channel stereo and playback
TAPE2 |
70~12,000 Hz
AC bias, Magnet erase.
4.8 cm/s(1 7/8 ips)
4-track 2-channel stereo recording
_ and playback.
