Technical manual for digital call module Art. 3360A
www.comelitgroup.com
EN
TECHNICAL
MANUAL
1
2
3
ABC
DEF
GHI
4
5
6
JKL
MNO
PQRS
8
7
9
WXYZ
TUV
.;:
0
A
B
C
D
E
F

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3360A and is the answer not in the manual?

Questions and answers

Related Manuals for Comelit 3360A

Summary of Contents for Comelit 3360A

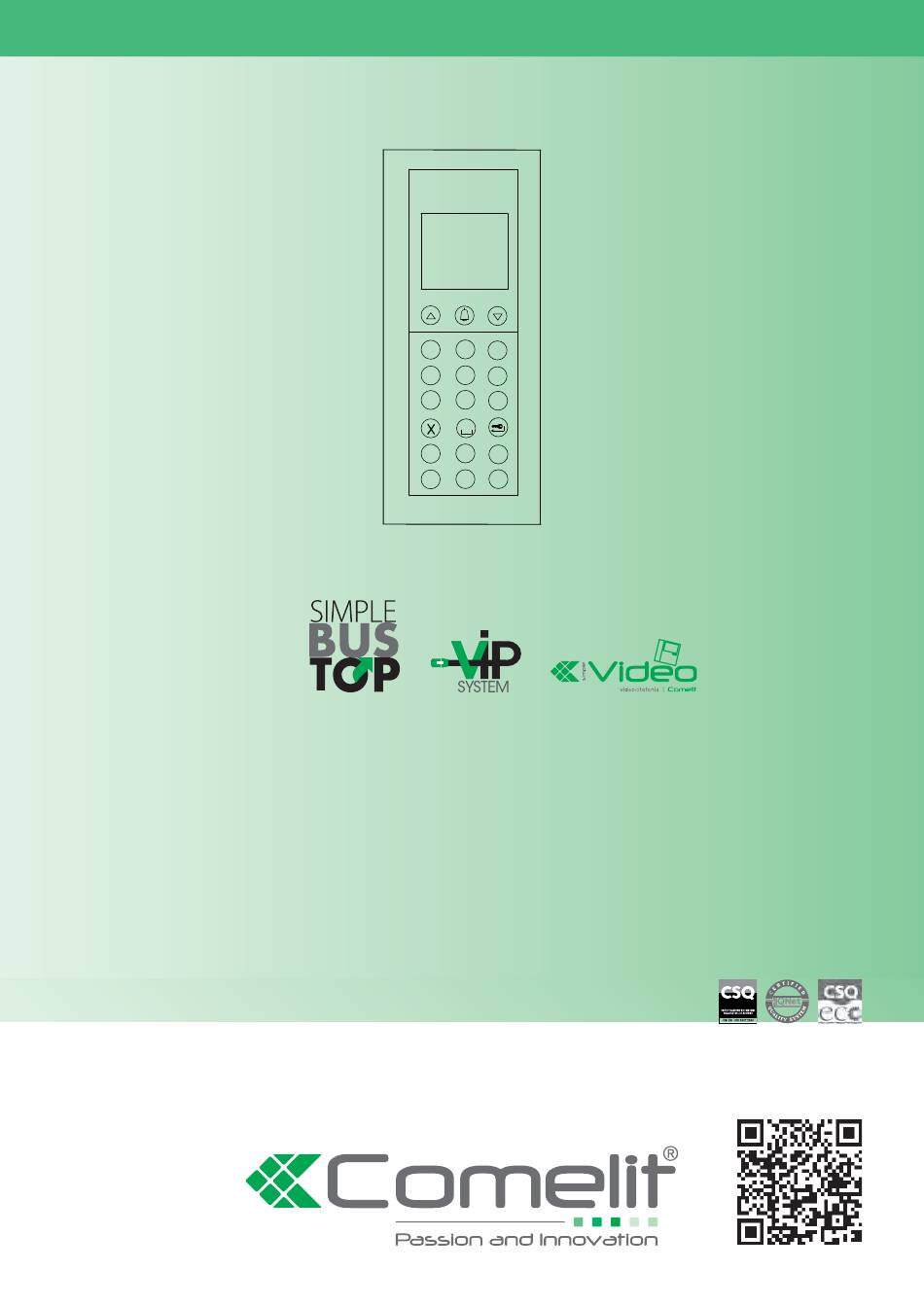

  • Page 1 TECHNICAL MANUAL PQRS WXYZ Technical manual for digital call module Art. 3360A www.comelitgroup.com...
  • Page 2 6A. Enabling/disabling self-ignition 7. Default settings 7A. Restoring the default values of the porter module Software Art. 1249B 1. Installing the USB driver for connecting Art. 3360A to a PC 2. Using the directory via software Art. 1249B 3. Multidownload Menu diagram...
  • Page 3 General description The Comelit digital call module Art. 3360A can be used in Simplebus, Simplebus Top and Vip systems, and is fi tted with a name directory to store a list of names and passwords as well as an alphanumerical keypad to call users by entering the code which identifi...
  • Page 4 Self-testing SELECT LANGUAGE ITALIANO On power-up the device carries out a diagnostic test of *ENGLISH the connections to check the correct communication and FRANCAIS confi guration of the porter module Art. 1622, Art. 4680, Art. 4680C. The message PLEASE WAIT indicates self-testing in progress.
  • Page 5 } to exit, press 1B. or scroll through the directory using 3. Activating the door opening relay by MARIO ROSSI entering the password code } standby mode 1. press CODE: SCROLL CALL ENTER PASSWORD: 2. to call, press 3. to exit, press CANC 2.
  • Page 6 Accessing the programming mode 3. press to confi rm 4. enter the name using the alphanumeric keypad, for the 1A. connect terminal PRG to GND and power up the use of special characters see table on page 3 module 1B. or press and enter the default supercode 778899 MARIO ROSS_ ENTER PASSWORD:...
  • Page 7 ENTER NAMES MARIO ROSSI_ DELETE NAMES CHANGE NAMES CLEAR ALL NAMES SCROLL CANC SCROLL CANC 8. change the name using the alphanumeric keypad, for 3. press to confi rm the use of special characters see table on page 3 9. press to confi...
  • Page 8 4. Clearing the directory 3. press to confi rm 1. access programming mode, see page 6 2. select the menu items: Name directory ⇒ Clear all names ENTER PART OF THE NAME ENTER NAMES REQUIRED DELETE NAMES CHANGE NAMES CLEAR ALL NAMES 4.
  • Page 9 2. Restoring the default supercode (778899) Access control 1. Changing the default supercode (778899) 1. access programming mode, see page 6 2. select the menu items: The supercode (778899 is the default code) is used to Access control ⇒ Supercode ⇒ Default settings access the programming menus.
  • Page 10 3. press to confi rm DELETE PASSWORD: 4. enter the password (max. 6 characters consisting of numbers and/or letters from A to F) using the alphanumeric _ 3ABC4 keypad IMPORTANT: the password must be at least 4 characters long CANC ENTER PASSWORD: 5.
  • Page 11 DELETION COMPLETE 3ABC4 5. to exit, press SCROLL Settings of the directory module (Art. 3360A) 6. Erasing all passwords 1. Modifying the language setting 1. access programming mode, see page 6 2. select the menu items: 1. access programming mode, see page 6 Access control ⇒...
  • Page 12 SELECT LANGUAGE TYPE OF DOWNLOAD ITALIANO *ENGLISH *USB FRANCAIS RS485 SCROLL SCROLL » * indicates language selected » * indicates the type of download selected 6. to exit, press 6. to exit, press 2. Setting the type of remote connection 3.
  • Page 13 Art. 1424 in Top 1, 2, 3 mode (see FT SB 21, page 6) 4. Disabling the second language which defi ne the system zones. Module Art. 3360A in Simplebus Top mode must be To cancel the second language function: used in conjunction with compatible products (see table 1A.
  • Page 14 (new key) or updating of the name only (if the code already exists) in the directory of digital module Art. CODE: 025 015 3360A. Since a single user code (apartment) can have up to 2 access keys associated with it under different names, SCROLL CALL during a numerical code call from the digital module the fi...
  • Page 15 CAUTION: to modify the type of system and the call mode CALL MANAGEMENT it is necessary to erase the entire directory, see page 8. *STANDARD 1. set the selector on porter module Art. 1622, Art. 4680, INDIRECT CODE Art. 4680C to ON, see Fig. IMMOTEC STANDARD 2.
  • Page 16 8. Entering the welcome message NAME ONLY This function is disabled by default. It is possible to enter the welcome message using software Art. 1249B. 1. access programming mode, see page 6 2. select the menu items: } Settings ⇒ Welcome message ⇒ Change SCROLL 4.
  • Page 17 9. Enabling/disabling the static message 10. Enabling/disabling the screensaver This function is disabled by default. This function is disabled by default. If activated, the screensaver will appear after a 30-second If activated, the welcome message will appear and remain period of inactivity. on the display after a 30-second period of inactivity.
  • Page 18 13. Restoring the default values of the directory 3. press to confi rm module 4. select desired keypad sensitivity using This function is used to restore the default settings: Language = Italiano Second language = disabled KEYPAD SENS. Type of system = Simplebus Call mode = standard *MEDIUM Welcome message = disabled...
  • Page 19 14. Changing the RS485 address of the porter 15. Viewing the number of names entered in module the directory, the software version, the number of passwords entered and the ID code (RS485 1. access programming mode, see page 6 address) 2.
  • Page 20 Standard settings of the porter module (Art. 7. press to confi rm 1622, Art. 4680, Art. 4680C) » confi rmation tone 1. Setting the porter module parameters (audio time, door lock time, reset time) PARAMETER AUDIO TIME= 10 - 180 sec. CHANGED DOOR LOCK TIME= 1 - 8 sec.
  • Page 21 Enabling/disabling door lock Advanced settings of the porter module (Art. confi rmation tone on the porter module 1622, Art. 4680, Art. 4680C) This function is disabled by default. 1. Lock on SE 1. access programming mode, see page 6 2. select the menu items: 1A.
  • Page 22 1C. Enabling/disabling the standby lock release 1D. Viewing the parameters of the door lock on on the porter module the SE output of the porter module This function is enabled by default. 1. access programming mode, see page 6 1. access programming mode, see page 6 2.
  • Page 23 ACTUATOR FUNCTION PARAMETER CHANGED SCROLL 4. select YES to enable the function, NO to disable it 2B. Enabling/disabling the relay contact in parallel to the porter module SE output 5. press to confi rm » * indicates active selection » confi rmation tone 1.
  • Page 24 2C. Viewing the relay contact parameters 3. S serial 3A. Enabling/disabling the actuator function on 1. access programming mode, see page 6 the S serial line 2. select the menu items: Settings ⇒ System parameters ⇒ Speaker parameters 1. access programming mode, see page 6 ⇒...
  • Page 25 It is possible to enable or disable the triple call made by Art. Settings ⇒ System parameters ⇒ Speaker parameters 3360A to the internal units. ⇒ Advanced options ⇒ Voice messages The call will therefore take place on consecutive occasions (in the case of video calls: the fi...
  • Page 26 5B. Enabling/disabling the call confi rmation 5C. Enabling/disabling the call codes booster tone This function is enabled by default. This function is disabled by default. 1. access programming mode, see page 6 Allows control of over 70 internal units connected to porter 2.
  • Page 27 5D. Setting the call answer wait time 5E. Viewing the porter module call parameters 1. access programming mode, see page 6 1. access programming mode, see page 6 2. select the menu items: 2. select the menu items: Settings ⇒ System parameters ⇒ Speaker parameters Settings ⇒...
  • Page 28 Control of internal units connected to porter module = up 1. Installing the USB driver for connecting Art. to 70 3360A to a PC System mode = Simplebus CAUTION: make sure that the option to install unsigned drivers (drivers that have not passed Windows Logo 7A.
  • Page 29 3. Multidownload TYPE OF DOWNLOAD It is possible to use a RS485 network to connect multiple *USB Art. 3360A to the same PC with software Art. 1249B RS485 installed. Each module must have a different ID CODE (RS485 address), see page 18.
  • Page 30 Menu diagram NAME ENTER DIRECTORY NAMES DELETE NAMES CHANGE NAMES CLEAR ALL DELETE NAMES ALL NAMES? ACCESS ENTER NEW SUPERCODE CONTROL CODE DEFAULT SETTINGS PASSWORD ENTER DELETE SEARCH DELETE ALL CLEAR PASSWORDS? TYPE OF SETTINGS DOWNLOAD RS485 SYSTEM SPEAKER ENTER AUDIO PARAMETERS PARAMETERS TIME...
  • Page 31 SYSTEM ADVANCED LOCK SETTINGS PARAMETERS OPTIONS ON SE CONFIRMATION TONE STANDBY LOCK REL. VIEW RELAY ACTUATOR ACTIVATION CONTACT FUNCTION TIME IN PARALLEL TO SE VIEW ACTUATOR S SERIAL FUNCTION VOICE MESSAGES ITALIANO FRANCAIS ESPANOL NEDERLANDS GREEK ENGLISH CALL TRIPLE CALL...
  • Page 32 SPEAKER ADVANCED SETTINGS CALL SETTINGS PARAMETERS OPTIONS CONFIRMATION TONE CODES BOOSTER ANSWER WAIT TIME VIEW SELF IGNITION DEFAULT SETTINGS RS485 ADDRESS SELECT ITALIANO LANGUAGE ENGLISH FRANCAIS DEUTSCH PORTUGUES DEFAULT SECOND ITALIANO LANGUAGE ENGLISH FRANCAIS...
  • Page 33 SECOND SETTINGS LANGUAGE DEUTSCH PORTUGUES DEFAULT CALL SIMPLEBUS STANDARD MANAGEMENT INDIRECT CODE IMMOTEC STAND. IMMOTEC INDIRECT SIMPLEBUS STANDARD INDIRECT CODE IMMOTEC STAND. IMMOTEC INDIRECT NAME ONLY WELCOME CHANGE MESSAGE ENABLE STATIC MESSAGE SCREEN SAVER...
  • Page 34 SETTINGS KEYPAD SENS. MEDIUM HIGH KEYPAD TONE DEFAULT SETTINGS INFO FW REVISION NAMES STORED PASSWORDS ENTERED RS485 ADDRESS Table of Simplebus Top products Brackets Art. 5714C IR. 007 Art. 5814C IR. 002 Art. 6114C IR. 015 Door-entry phones Art. 2608 IR. 006 Art.
  • Page 35 Computer CAUTION: - It is possible to use up to 5 terminals Art. 3360A - Maximum distance between Art. 20022618 and furthest terminal Art. 3360A: ALIM. 100 m MOXA TCC-80 20022618 Braided, shielded telephone cable 3360A 120E 1/4W 1195 3360A...
