●Thank you so much for purchasing this product.
●This product is for family use only.
● Please read this instruction manual carefully
before using the product to ensure the correct and
safe use of this product.
●Pay special attention to Safety Precautions. (Page
2-4).
● Please safekeeping the Warranty Certificate and
the User's manual .

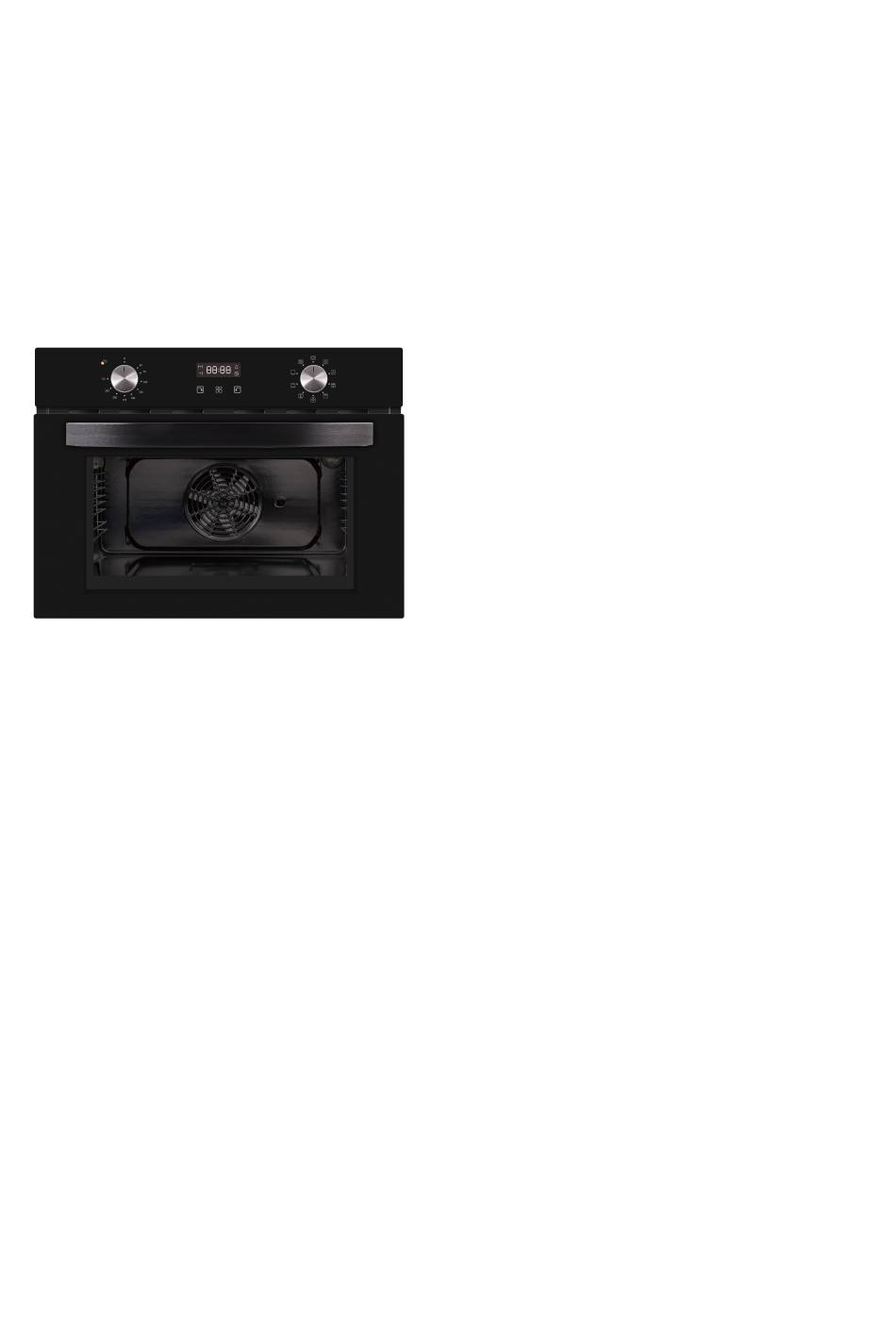

Built-in oven
Instructions for use installation
Family use built-in oven
Model: DOMT96045
Contents
Safety precautions.............................................. 2 ~4
use precautions.............................................4~5
Initial use precautions.......................................6
Appliance parts and operation................................7
●Oven component................................................7
●Accessories.........................................................7
●Control panel......................................................8
●Function settings................................................9
●Cooking knacks.................................................10
Usage method.......................................................11
●Cooking suggestion and instructions................11
●Energy saving tips.............................................11
●Timer setting.....................................................12
●Clock setting.......................................................12
●Automatic programmer setting .......................13
Cleaning and maintenance....................................14
●Oven interior /oven door..................................14
●Remove the oven door......................................14
●Remove the slide-in racks.................................15
●Oven light replacement....................................15
●Sensor probe replacement...............................15
●Specifications....................................................16
Installation Instructions...................................17~20
The right of final interpretation of the manual
belongs to our company.
1
Advertisement
Table of Contents
Related Manuals for Duos DOMT96045
Summary of Contents for Duos DOMT96045
-
Page 1: Table Of Contents
Built-in oven Instructions for use installation Family use built-in oven Model: DOMT96045 Contents Safety precautions…………........2 ~4 use precautions..........4~5 Initial use precautions........6 Appliance parts and operation........7 ●Oven component..........7 ●Accessories............7 ●Control panel............8 ●Function settings..........9 ●Cooking knacks..........10 Usage method............11 ●Cooking suggestion and instructions....11 ●Energy saving tips..........11... -
Page 2: Safety Precautions
Safety Precautions Be sure to observe To prevent the bodily injury and property damage, please be sure to observe the following safety precautions. ■The following icons show the extent of damage caused by incorrect operations. Warning: Indicates a potential hazard that, if unavoidable, may result in death or serious injury. Note: Indicates a potential hazard that, if unavoidable, may result in death or moderate injury. - Page 3 Warning ●Do not alter, disassemble or repair the product by yourself. (To avoid causing fire, electric shock or injury.) For repairs, please contact (Company name) Certification Maintenance Store for consultation. ●Do not clean the oven door glass with a rough scrubber or sharp scraper. (In order to avoid scratches on the surface of glass, resulting in glass crushing.) ●Be sure to use AC power sockets with specifications of AC230V/16A separately.
-
Page 4: Use Precautions
Safety Precautions Be sure to observe Note ●Do not put inflammable materials in the oven. (So as not to cause a fire when accidentally turning on the oven) ●Do not sit or fall back on open products. (To avoid damaging the telescopic chute.) ●Do not use irritating, corrosive cleaners or sharp metal scrapers to clean glass doors of oven. - Page 5 Use Precautions Slide-in racks Placement Warning In order to ensure the safe use of the grate or tray, it is necessary to insert in the right direction and place the slide-in racks correctly. In addition, you can also refer to the level number displayed in the front of the oven when you open it. (There are five levels altogether.) This ensures that food does not slip out of the back during careful removal from the grate or tray.
-
Page 6: Initial Use Precautions
Please pay attention to remove the packing materials in the oven Initial Use Precautions Note: When using oven for the first time, there may be a small amount of smoking and odor, which is a normal phenomenon. Please adjust the temperature of the empty oven to 250 C, and bake it with stereoscopic function for 30 minutes before using Initial Use Operation Remove all cushioning material. -
Page 7: Appliance Parts And Operation
Appliance parts and operation Oven Component 需 Accessories ·Before first use, please clean all accessories and use soft cloth and neutral detergent to clean the oven. · Only original accessories can be used. ◆ Grate Used for baking and barbecuing ◆... -
Page 8: Control Panel
Appliance parts and operation Control Panel 1. Indicator light 2. Temperature setting knob • Rotate the knob to select the desired temperature. 3. Main display screen 4. Decrease button 5. Timing/Clock button 6. Increase button 7. Function setting knob • Rotate the knob to select the desired function. -
Page 9: Function Settings
Appliance parts and operation Function Settings Turn the knob to the relevant icon and select the cooking functions required. Icons Function Description Lamp Users can observe the cooking progress without opening the door, but they need to start the setting function and then the lamp will turn on. -
Page 10: Cooking Knacks
Cooking Knack Weight(k Function Temperat First Second Accessory Food Level Setting Face(minutes) Face(minutes) ure in°C Biscuit 10-15 baking tray Sandwich 15-20 grate Swiss Roll 10-18 baking tray Small cake 0.3-0.4 20-25 baking tray small cake 0.3-0.4 20-25 baking tray Sponge 30-35 grate cake... -
Page 11: Usage Method
Usage Method Cooking Suggestions and Instructions ■ Normal Suggestions •We suggest to preheat the oven before the food is put into the oven. • Normally , it is impossible to shorten the cooking time by increasing the temperature (food may be well cooked outside, but not yet inside). -
Page 12: Timer Setting
Timer Setting Clock Setting Used for display the current time on the screen. Clock must be set before use. 1. When the power is turned on, the display screen shows "12.00" and the clock icon flashes. At this time, the oven is not working. -
Page 13: Automatic Programmer Setting
Cooking End Time Setting The oven will be shut off automatically when the cooking end time is set. The adjustable range of the end time: the end time ≤ current time + 10 hours, but the maximum end time is not more than 24 hours. -
Page 14: Cleaning And Maintenance
Setting the child-proof lock (key lock) Your appliance is equipped with a child lock to prevent the appliance from being switched on accidentally or settings from being changed unintentionally, e.g. by children. When activated, the the control keys are all locked. 1. -
Page 15: Remove The Slide-In Racks
Remove the Slide-in racks Remove the hanger to facilitate cleaning the side wall of the oven. Note: Operate this process must by hand slightly, or it will damage the enamel. • Remove all accessories such as grate and baking tray. •... -
Page 16: Sensor Probe Replacement
The probe used in the oven is a mechanical physical probe. Do not replace it without authorization. In case of abnormal temperature sensing of the sensor probe, please contact the designated repair shop immediately for replacement. Specifications Model DOMT96045 Voltage 230V Rated power... -
Page 17: Installation Instructions
Installation Instructions For installation personnel Important note The kitchen cover must be suitable to ensure that the oven works properly. ● The panel of kitchen equipment adjacent to the oven must be made of heat-resistant materials. Kitchen equipment ● made of plywood shall ensure that the glue can withstand a temperature of at least 120 degrees Celsius. When plastic or glue cannot withstand this temperature, the equipment will melt and deform. -
Page 18: Electrical Connectors
Installation Instructions For installation personnel Electrical Connectors Warning The wiring of oven must be equipped with all-pole disconnection device according to the wiring rules After installing the appliance, it is necessary to have other methods to disconnect the power supply. The power supply is disconnected by a contactable plug or by a fixed wiring switch that meets the wiring requirements. - Page 19 Installation Instructions For installation personnel Reasonable Fixed Oven Note Two persons are required to assist in the installation of the oven. The oven base must be installed as shown below. 1.Pay attention to the general dimensions required for installation. Unit:mm 2.Convex In order to have the best integration of the kitchen, please install the equipment into the standard 600 mm wide cabinet, so it can achieve a flush effect with the front of the cabinet.
- Page 20 Installation Instructions For installation personnel Before installing the equipment, please ensure that the cabinet meets the following internal empty dimensions. To ensure air circulation, the oven must be installed in accordance with the size and distance shown in the figure below. Convex ■Note：...
