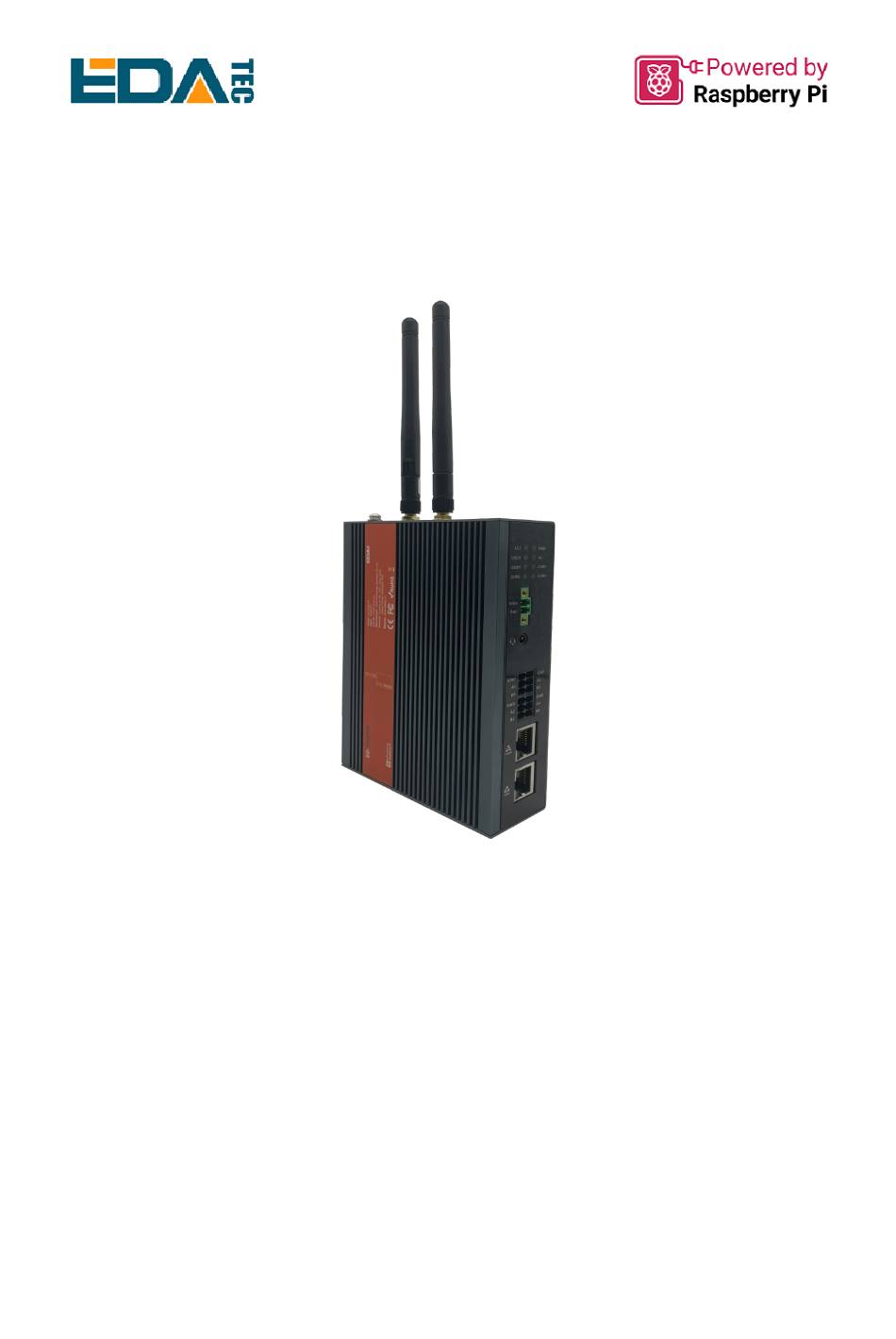

  • Page 1 ED-IPC2100 User Manual by EDA Technology Co., Ltd built: 2024-11-27...
  • Page 2 This chapter introduces the product overview, packing list, appearance, button, indicator and interface. 1.1 Overview ED-IPC2100 series is a highly reliable industrial computer based on Raspberry Pi CM4. According to different application scenarios and user needs, different specifications of RAM and eMMC computer systems can be selected.

  • Page 3: Packing List

    ED-IPC2100 1.2 Packing List • 1x ED-IPC2100 Unit (with DIN-rail bracket) • [optional Wi-Fi/BT version] 1x 2.4GHz/5GHz Wi-Fi/BT Antenna • [optional 4G version] 1x 4G/LTE Antenna 1.3 Appearance Introducing the functions and definitions of interfaces on each panel. 1.3.1 Front Panel Introducing the front panel interface types and definitions.

  • Page 4: Rear Panel

    ED-IPC2100 Function Definition 1 x green system status indicator, which is used to check the working status of device. 1 x green user indicator, user can customize a status according to actual application. 1 x red power indicator, which is used to check the status of device power-on and power-off. 1 x green 4G indicator, which is used to check the status of 4G signal.

  • Page 5: Side Panel

    1 x Wi-Fi/BT antenna port, SMA connector, which can connect to Wi-Fi/BT antenna. 1.4 Button ED-IPC2100 series device includes a RESET button, which is a hidden button, and the silkscreen on the case is "RESET". Pressing the RESET button will reset the device.
  • Page 6 1.6 Interface Introducing the definition and function of each interface in the product. 1.6.1 Card Slot ED-IPC2100 series device includes an SD card slot and a Nano SIM card slot. Email: sales@edatec.cn / support@edatec.cn Phone: +86-15921483028(China) | +86-18217351262(Overseas) Web: www.edatec.cn...

  • Page 7: Power Supply Interface

    ", which is used to install SIM card for obtaining 4G signals. 1.6.2 Power Supply Interface The ED-IPC2100 series device includes one power input, 2-Pin 3.5mm spacing phoenix terminals with screw holes. The silkscreen of port is "VIN+/GND", and the pins are defined as follows. Pin ID...
  • Page 8 ED-IPC2100 RS485-2_B RS485-4_B RS485-2_A RS485-4_A RS232-1_RX or RS485-1_B RS232-3_RX or RS485-3_B RS232-1_TX or RS485-1_A RS232-3_TX or RS485-3_A The pin names of CM4 corresponding to RS485/RS232 interface are as follows: Signal CM4 GPIO Name CM4 Pin Out RS485-2_B GPIO13 UART5_RXD RS485-4_B GPIO9 UART4_RXD RS485-2_A...

  • Page 9: 1000M Ethernet Interface

    COM4 COM2 1.6.5 1000M Ethernet Interface ED-IPC2100 series device includes one adaptive 10/100/1000M Ethernet port, and the silkscreen is " ". The connector is RJ45, which can support PoE with the expansion module. When accessing to network, it is recommended to use the network cable of Cat6 and above. The pins...

  • Page 10: Hdmi Interface

    Pin ID Pin Name 1.6.7 HDMI Interface ED-IPC2100 series device includes one HDMI port, the silkscreen is "HDMI". The connector is type A HDMI, which can connect to an HDMI display and supports up to 4Kp60. 1.6.8 USB 2.0 Interface ED-IPC2100 series device includes 2 USB 2.0 ports, the silkscreen is "...

  • Page 11: Micro Usb Interface

    PC to flash to eMMC of the device. 1.6.10 Antenna Interface The ED-IPC2100 series device includes 2 SMA antenna ports, the silkscreens are "4G" and "Wi- Fi/BT" and they can be connected to the 4G antenna and Wi-Fi/BT antenna.
  • Page 12 ED-IPC2100 1.6.11.1 5V 1A Output The motherboard of ED-IPC2100 series device includes an extended 5V 1A power output port with 3-Pin 2.0mm spacing white WTB connector, which is reserved for the extended LCD screen to supply power. The pins are defined as follows:...
  • Page 13 IO, you need to remove the jumper resistance on the corresponding signal line. 1.6.11.5 M.2 B Interface The motherboard of ED-IPC2100 series device includes a M.2 B Key connector, which is used for external SSD and compatible with M.2 B 2230 and M.2 B 2242 SSD.
  • Page 14 DSI1_D3_N DSI1_D3_P 1.6.11.7 RTC Battery Base The motherboard of ED-IPC2100 series device is integrated with RTC. For the version sold in China, we will install CR1220 battery (RTC backup power supply) by default. Email: sales@edatec.cn / support@edatec.cn Phone: +86-15921483028(China) | +86-18217351262(Overseas)
  • Page 15 CR1220 battery and install it on the motherboard. 1.6.11.8 USB 2.0 Interface The motherboard of ED-IPC2100 series device includes an extended USB 2.0 Pin Header with 5- Pin 1.5mm spacing WTB connector. It is used to expand a USB 2.0 interface, the pins are defined...
  • Page 16 SDA_1V8 1.6.11.11 FPC HDMI Interface (optional) The motherboard of ED-IPC2100 series device includes one extended HDMI interface with 40-pin 0.5mm spacing FPC connector. It supports video signal output to LCD screen, reserves to connect the extended LCD screen. It supports USB/I2C touch screen and backlight adjustment The pins are defined as follows: Only ED-IPC2120 include this interface.
  • Page 17 ED-IPC2100 Pin ID Pin Name Pin ID Pin Name HDMI1_CLKN HDMI1_CLKP HDMI1_TX0N HDMI1_TX0P HDMI1_TX1N HDMI1_TX1P HDMI1_TX2N HDMI1_TX2P HDMI1_CEC HDMI1_SCL HDMI1_SDA HDMI1_HPD TPINT_L SDA_LCD SCL_LCD USB_DP_LCD USB_DM_LCD Email: sales@edatec.cn / support@edatec.cn Phone: +86-15921483028(China) | +86-18217351262(Overseas) Web: www.edatec.cn...

  • Page 18: Installing Components

    ED-IPC2100 2 Installing Components This chapter describes how to install optional components. 2.1 Installing Internal Components (optional) Before installing the internal components, it is necessary to open the device case. 2.1.1 Open Device Case Preparation: A cross screwdriver has been prepared. Steps: Pull out the default configuration of phoenix connector (male for wiring).
  • Page 19 ED-IPC2100 2.1.2 Install RTC battery Some international logistics do not support the transportation of batteries, and some ex- factory devices are not equipped with CR1220 batteries. Therefore, before using RTC, please prepare a CR1220 battery and install it on the motherboard. Preparation: •...

  • Page 20: Installing Other Components

    Plug in the default configuration of phoenix connector. 2.2 Installing Other Components If the selected ED-IPC2100 series device includes 4G and Wi-Fi functions, the SIM card and antenna need to be installed before using the device. 2.2.1 Install Antenna (optional) Preparation: Email: sales@edatec.cn / support@edatec.cn...

  • Page 21: Install Micro Sd Card

    ED-IPC2100 The corresponding antennas have been obtained from the packaging box. If there are multiple antennas, they can be distinguished by the labels on the antennas. Steps: Locate the antenna port where the antenna is to be installed, as shown in the red box in the figure below.
  • Page 22 ED-IPC2100 Steps: Use a cross screwdriver to loosen three screws on the DIN-rail bracket counterclockwise (red box position in the figure below) and remove the default DIN-Rail bracket. Locate the Nano SIM card slot where the Nano SIM card is to be installed, as shown in the red box below.

  • Page 23: Installing Device

    3 Installing Device This chapter introduces how to install the device. 3.1 DIN-Rail Installation When the ED-IPC2100 series device leaves the factory, the DIN-rail bracket is installed as standard by default. Steps: Face the side of the DIN-rail bracket to the rail to be installed, and the upper side of the bracket is sleeved on the upper side of the rail.
  • Page 24 ED-IPC2100 Email: sales@edatec.cn / support@edatec.cn Phone: +86-15921483028(China) | +86-18217351262(Overseas) Web: www.edatec.cn...

  • Page 25: Booting The Device

    ED-IPC2100 4 Booting the Device This chapter introduces how to connect cables and boot the device. 4.1 Connecting Cables This section describes how to connect cables. Preparation: • Accessories such as display, mouse, keyboard and power adapter that can be used normally have been ready.
  • Page 26 ED-IPC2100 4.2 Booting The System For The First Time ED-IPC2100 series device has no switching power supply. After the power supply is connected, the system will start. • The red PWR indicator is on, indicating that the device has been powered normally.
  • Page 27 ED-IPC2100 Email: sales@edatec.cn / support@edatec.cn Phone: +86-15921483028(China) | +86-18217351262(Overseas) Web: www.edatec.cn...

  • Page 28: Configuring System

    ED-IPC2100 5 Configuring System This chapter introduces how to configure system. 5.1 Finding Device IP Finding Device IP 5.2 Remote Login Remote Login 5.3 Configuring Storage Devices Configuring Storage Devices 5.4 Configuring Ethernet IP Configuring Ethernet IP 5.5 Configuring Wi-Fi (Optional) Configuring Wi-Fi 5.6 Configuring Bluetooth (Optional) Configuring Bluetooth...

  • Page 29: Configuring Serial Port

    ED-IPC2100 5.10 Configuring Serial Port This chapter introduces the configuration method of RS232 and RS485. 5.10.1 Installing picocom tool In the Linux environment, you can use the picocom tool to debug the serial ports RS232 and RS485. Execute the following command to install the picocom tool. sudo apt-get install picocom 5.10.2 Configuring RS232...

  • Page 30: Configuring Audio (Optional)

    ED-IPC2100 5.10.3 Configuring RS485 ED-IPC2100 includes 2~4 RS485 ports with their corresponding COM ports and device files, as shown in the table below: ED-IPC2110 and IPC2120 Number of RS485 Ports Corresponding COM Port Corresponding Device File COM2, COM4 /dev/com2, /dev/com4 ED-IPC2130 Number of RS485 Ports Corresponding COM Port...
  • Page 31 ED-IPC2100 6 Installing OS (optional) The device is shipped with an operating system by default. If the OS is corrupted during use or the user needs to replace the OS, it is necessary to re-download the appropriate system image and install it.
  • Page 32 ED-IPC2100 • SD Card Formatter: https://www.sdcardformatter.com/download/ (https:// www.sdcardformatter.com/download/) • Rpiboot: https://github.com/raspberrypi/usbboot/raw/master/win32/rpiboot_setup.exe (https:// github.com/raspberrypi/usbboot/raw/master/win32/rpiboot_setup.exe) Preparation: • The downloading and installation of the official tools to the computer have been completed. • A Micro USB to USB-A cable has been prepared. • The OS file has been obtained.
  • Page 33 ED-IPC2100 In the pop-up prompt box, select "Yes". When the formatting is completed, click "OK" in the prompt box. Close SD Card Formatter. Open Raspberry Pi Imager, select "CHOOSE OS" and select "Use Custom " in the pop-up pane. According to the prompt, select the OS file under the user-defined path and return to the main page.
  • Page 34 ED-IPC2100 Select “YES” in the pop-up “Warning” pane to start writing the image. After the OS writing is completed, the file will be verified. After the verification is completed, click “CONTINUE” in the pop-up “Write Successful” box. Close Raspberry Pi Imager, remove USB cable and power on the device again. 6.3 Installing Firmware Package After you have finished flashing to eMMC on ED-IPC2100, you need to configure the system by adding edatec apt source and installing firmware package to make the system work.
  • Page 35 ED-IPC2100 Preparation: • The flashing to eMMC of the Raspberry Pi standard OS (bookworm) has been completed. • The device has booted normally and the relevant boot configuration has been completed. Steps: After the device starts normally, execute the following commands in the command pane to add the edatec apt source and installing firmware package.
