MODEL NO: KTR-4027（PM-640)

I N S T R U C T I O N M A N U A L

Need help?

Do you have a question about the KTR-4027 and is the answer not in the manual?

Questions and answers

Summary of Contents for PureMate KTR-4027

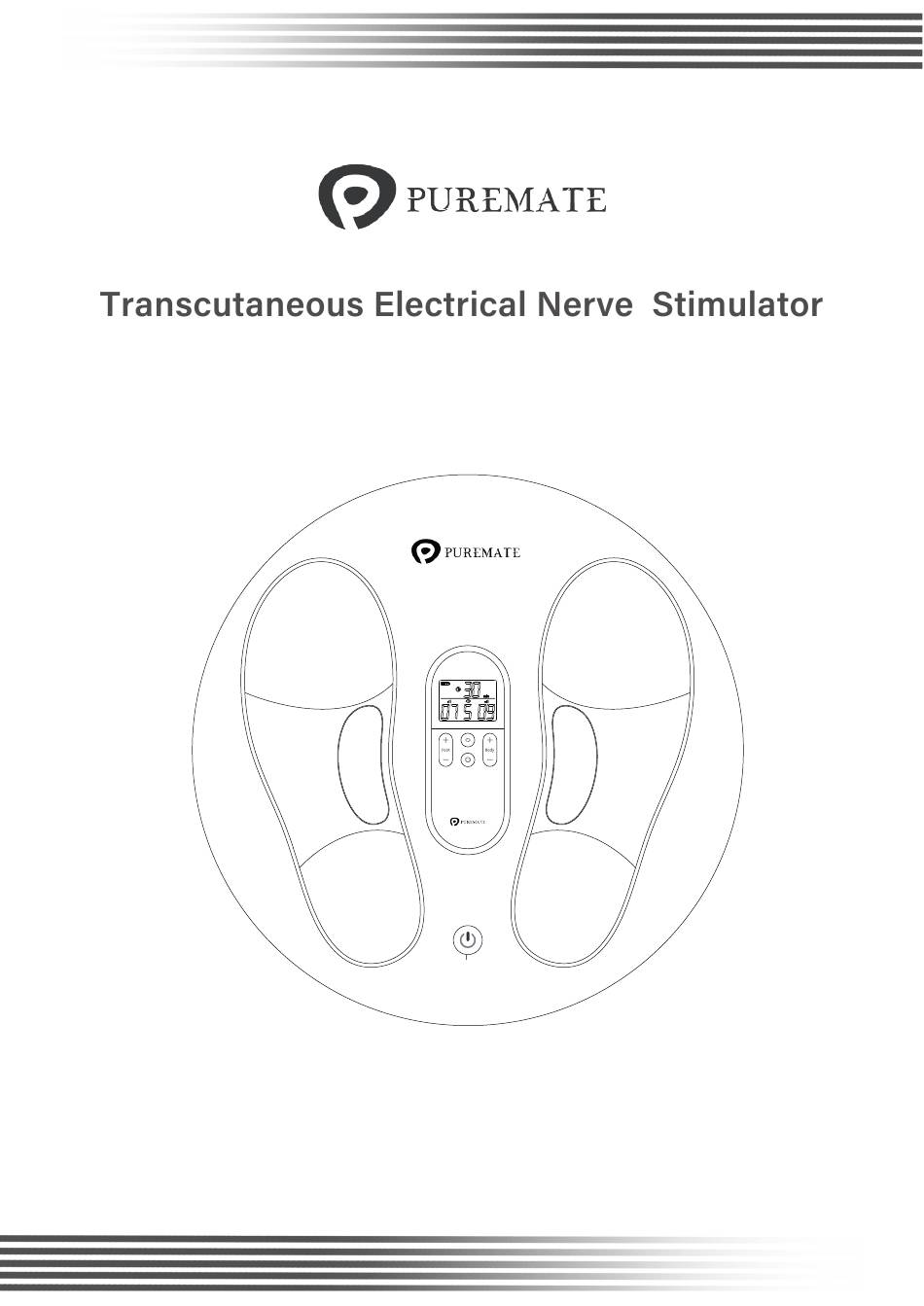

Page 1 MODEL NO: KTR-4027（PM-640) I N S T R U C T I O N M A N U A L...
Page 3 ◎ This product can promote the blood circulation of the feet and legs. ◎ Improve the blood pumping function of the veins. ◎ Reduce the pain and discomfort of the feet and legs; ◎ Reduce swelling; ◎ Reduce cramps. ◎ Prevention of venous thrombosis;...
Page 4 Main structure of the product The product is mainly composed of a main unit, a remote control, batteries and adhesive electrodes, as shown in the following figure: Signal receiving window Foot electrode Electric pulse Power switch Main unit Accessories AAA batteries Plug USB charging Connecting cable...
Page 5 Battery level display Remaining time display Foot pulse intensity Body pulse intensity Pulse mode Electric pulse mode Body pulse Foot stimulation intensity intensity adjustment adjustment On/Off/Timer Remote control Signal-radiation window battery cover...
Page 6 Applied parts of the product include foot and body electrodes Electrodes: The electrode is made of medical-grade hydrogel and carbon film, which is of biocompatibility. Specification Instructions Dimensions 70x52 mm 150 Ω± 10% Electrode impedance Service life 2 years Temperature: 0~45℃ Transport and storage Relative humidity: ≤80%RH environment...
Page 7 (3) Instructions on use of electrodes ■ Please clean your skin thoroughly before each use of the electrodes, since the lotion, makeup or dirt left on the body skin will cause the poor application of electrodes. ■ Please apply the electrodes to your body parts with a pain. ■...
Page 8 Transcutaneous Electrical Product name Nerve Stimulator KTR-4027（PM-640) Model No Power supply Input: 5V DC 1A Remote control: 2 AAA batteries Input power Safety category Type BF of class II Dimensions of the main unit 365×365×68.5mm Package Size 395×395×90mm Net weight...
Page 9 Pulse frequency 1Hz—100Hz Pulse width 100μs～400μs DC component Peak output voltage 5-80V Power of a single pulse at the ﹥7μC maximum output amplitude Maximum output energy of a ≤300mJ single pulse Maximum output amplitude ＜10V Peak output voltage during ≤500V open circuit measurement Output amplitude adjustment Be able to withstand the effects...
Page 10 ■ Warning signs and symbols referred in this manual are for safe and proper use of the product by users, thus preventing damages to users or others. ■ Warning signs, symbols and their meanings are as follows: Symbols ● ● "...
Page 14 Preparations before use (1) First install 2 AAA batteries on the remote control, pay attention to the positive and negative polarities of the batteries, and then close the battery cover. (2) Make sure that connecting to the mains power... (3) Clean your feet and the foot electrodes with a damp towel, and then place your feet on the electrodes;...
Page 15 Then, you may operate the remote control to adjust to the treatment mode and intensity you desire; in operating the remote control, please aim its infrared emitter at the infrared receiving port on the main unit. The product will beep once after successfully receiving the nfrared signal. To power off the product, please press "...
Page 16 Application of electrodes to body parts (1) Connect one end of the 2-core connecting cable to the electrode interface (marked with ) on one side of the main unit and the other end to the adhesive electrodes. (2) Remove the protective film on electrodes and firmly apply them to your body parts with a pain.
Page 17 Note: (1) Adhesive electrodes should be always clean on their surfaces, without any dust, oily or sticky substances; otherwise, their viscosity will decrease. If they become dirty, please rinse them with clean water and then dry them in air for repeated use. (2) The adhesive electrodes could be used for about 80 times (20 minutes each time).
Page 18 Remote control battery Note: (1) The remote control uses 2 AAA batteries, which can be used for about half a year(according to use 30 minutes a day). (2) When " " is displayed on the remote control screen, it means that the battery of the remote control is low, please replace it with a new one.
Page 19 (1) When the main unit becomes dirty, please wipe it with a dry cloth or towel. (2) Please clean the conductive strip with a damp cloth or towel after each use; if it is too dirty, you may use a cloth damped with medical alcohol (75% concentration) to wipe or disinfect it.
Page 20 The user or operator is not allowed to perform repair or maintenance during use of the product. If it doesn't work, please send it to the dealer for maintenance or repair. It is very difficult to disassemble the product since the electric isolation isn't provided for the ME device.
Page 22 (1) The product requires special attention to EMC and requires to be installed. Please use it based on the EMC information provided, since it may be affected by portable and mobile RF communication devices. (2) The product has been thoroughly tested and inspected to ensure its excellent performance and proper operation.
Page 23 2862...
Page 24 IP21 The product should be in accordance with the following standards and regulations: (1) Medical electrical equipment - Part 1: General requirements for basic safety and essential performance (EN 60601-1:2006 / AC: 2021) (2) Medical electrical equipment - General requirements for basic safety and essential performance - Collateral standard: Requirements for medical electrical equipment and medical electrical systems used in the home healthcare environment...
Page 26 ± ± ± ±...
Page 27 <5% U <5% U (>95% dip (>95% dip in U in U for 0.5 cycle for 0.5 cycle 40% U 40% U (60% dip (60% dip in U in U for 5 cycles for 5 cycles 70% U 70% U (30% dip (30% dip in U...
Page 28 150 KHz to 80 MHz to 800 MHz to 80 MHz 800 MHz 2.5 GHz 0.01 0.12 0.12 0.23 0.38 0.38 0.73...
Page 29 FIND US ONLINE...
Page 30 MODEL NO: KTR-4027（PM-640) Super Tech Health Limited 129 Shady Lane Great Barr Birmingham West Midlands B44 9ER United Kingdom WWW.PUREMATE.CO.UK 2862 Shenzhen Kentro Medical Electronics Co.,Ltd 2nd Floor, No. 11, Shanzhuang Road, Xikeng Village, Yuanshan Street, Longgang District, Shenzhen City, Guangdong Province, China [Tel]: +86(755)33825998, [Fax]: +86(755)33825996 WellKang Ltd (www.CE-marking.eu)
