1

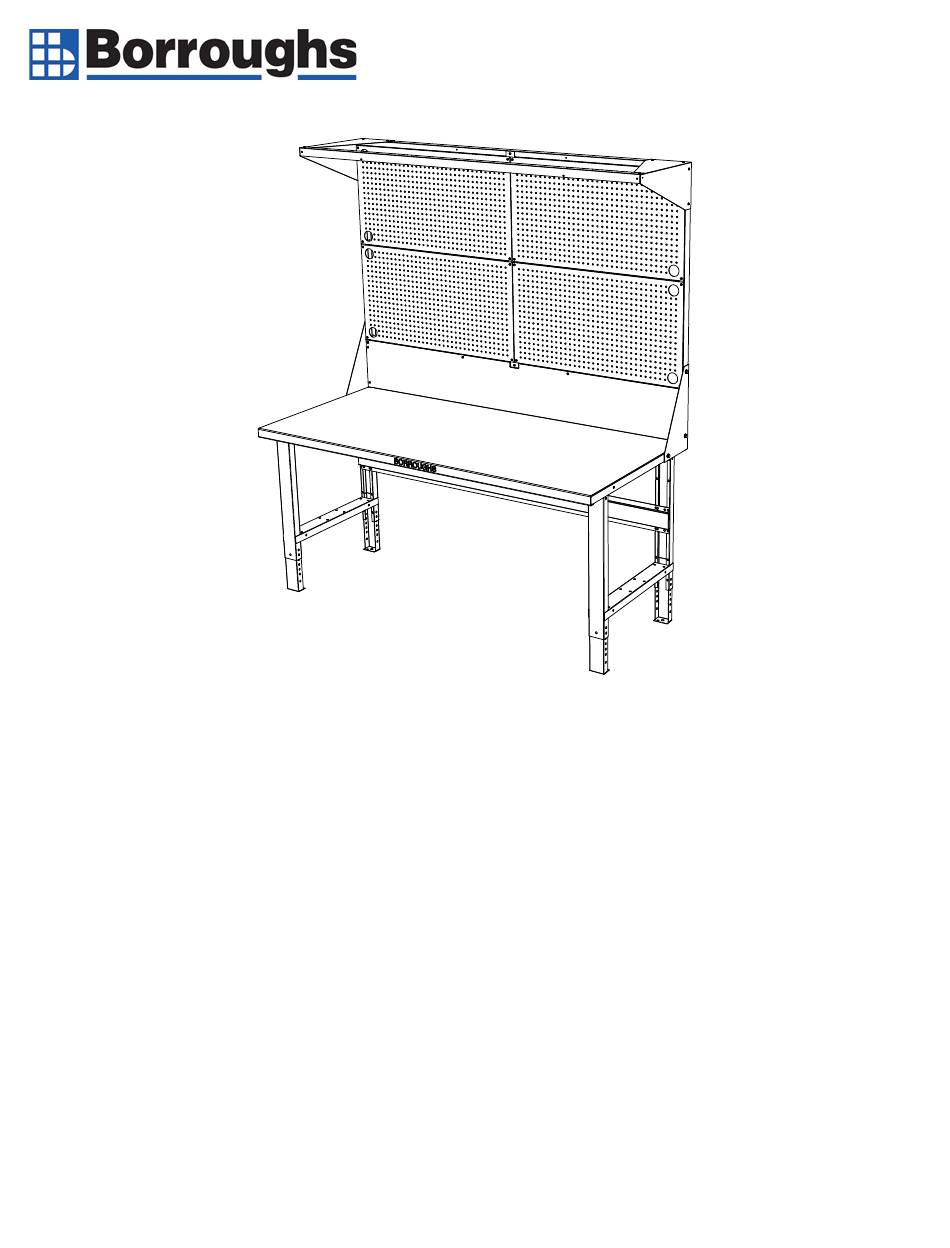

WORKBENCH CANTILEVER FRAME
INSTALLATION INSTRUCTIONS
——————IMPORTANT——————
PRODUCT LIABILITY INFORMATION
Read all instructions before proceeding with installation or
drawer loading. Vital product information pertaining to
proper set-up and cautions are included. Failure to follow
these instructions may cause failure which may result in
3002 N. Burdick Street
personal injury or property damage.
Kalamazoo, MI 49004
t: 800-748-0227 f: 269-342-4161
RETAIN THIS MANUAL FOR FUTURE REFERENCE
www.borroughs.com
Borroughs Document Number: DOC-WKB-0100
Rev: —
Advertisement
Table of Contents
Summary of Contents for Borroughs WORKBENCH CANTILEVER FRAME
- Page 1 WORKBENCH CANTILEVER FRAME INSTALLATION INSTRUCTIONS ——————IMPORTANT—————— PRODUCT LIABILITY INFORMATION Read all instructions before proceeding with installation or drawer loading. Vital product information pertaining to proper set-up and cautions are included. Failure to follow these instructions may cause failure which may result in 3002 N.
- Page 2 Table of Contents Before You Begin : . Component Overview: Cantilever Frame: . Warranty : Borroughs Document Number: DOC-WKB-0100 Rev: —...
-
Page 3: Before You Begin
Before You Begin 1. Check your inventory to be sure you received your entire order; refer to the Parts List on the following pages. If there are any missing or damaged parts, contact the Borroughs Customer Service Manager @ 1-800-748-0227. - Page 4 Workbench Cantilever Frame Parts List Item Description Attachment Bracket RH Attachment Bracket LH Upright Crossmember Center Channel Top Gusset Light Support Angle Perforated Panel Backstop Hardware Bag Borroughs Document Number: DOC-WKB-0100 Rev: —...
- Page 5 Workbench Cantilever Frame Start the cantilever frame assembly by screw- ing together the frame. (2) Uprights, (2) cross- members and (1) center channel will be need- ed. Refer to picture below for orientation of channels within the frame. Use (10) thread forming screw to hold the frame together.
- Page 6 Workbench Cantilever Frame Attach the LH and RH brakets to the work- LH Bracket RH Bracket bench top with the (4) screws and (4) nuts per backet as shown in the picture below with the circles. Next attach the frame to the brackets using (2) screws and (2) nuts per side as shown in the picture with the squares.
- Page 7 Workbench Cantilever Frame Assemble (4) perforated panels to the unit using (4) screws per panel. The two large holes are for power cord routing and can be oriented on the outside or inside by rotating the panel 180 degrees. Borroughs Document Number: DOC-WKB-0100...
- Page 8 Workbench Cantilever Frame With the perforated panels in place, attach top gussets to frame using (4) screws for each gusset. Next, place light support angle on top of gussets and secure using (2) screws. Borroughs Document Number: DOC-WKB-0100 Rev: —...
- Page 9 Workbench Cantilever Frame Attach backstop to unit with (6) screws. A light can now be attached to the angle bracket installed on step 6. Light is not sup- plied but has a universal hole spacing that will fit most 4 ft. shop lights.
-
Page 10: Warranty Information
If a Borroughs product fails to perform because of a manufacturing de- fect, Borroughs will examine it. If found defective, it will be repaired or replaced at our option. This warranty applies only to Borroughs products acquired directly from Borroughs or from an authorized Borroughs Distributor.
