Safety Instructions

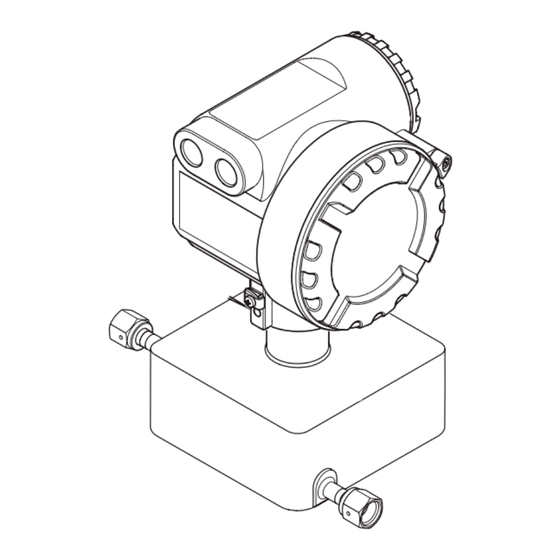

Cubemass
MODBUS RS485
ATEX: II 2 GD Ex d[ia] IIC T6...T1 Ex tD A21 IP6X
II 2 GD Ex demb[ia] IIC T6...T1 Ex tD A21 IP6X
IEC: Zone 1, Zone 21
Ex d[ia] IIC T6...T1 Ex tD A21 IP6X
Ex demb[ia] IIC T6...T1 Ex tD A21 IP6X
Dokument-Nr.: XA146D
0
de
Sicherheitshinweise für elektrische Betriebsmittel für explosionsgefährdete Bereiche gemäß Richtlinie
94/9/EG (ATEX) und IEC 60079-0
en
Safety instructions for electrical apparatus for explosion-hazardous areas according to
Directive 94/9/EC (ATEX) and IEC 60079-0
fr
Conseils de sécurité pour matériels électriques destinés aux zones explosibles selon
Directive 94/9/CE (ATEX) et IEC 60079-0
XA146D/06/a3/02.10
71109584
Seite 5
Page 13
page 21

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cubemass and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Endress+Hauser Cubemass

  • Page 1 Safety Instructions Cubemass MODBUS RS485 ATEX: II 2 GD Ex d[ia] IIC T6…T1 Ex tD A21 IP6X II 2 GD Ex demb[ia] IIC T6…T1 Ex tD A21 IP6X IEC: Zone 1, Zone 21 Ex d[ia] IIC T6…T1 Ex tD A21 IP6X Ex demb[ia] IIC T6…T1 Ex tD A21 IP6X...
  • Page 2 XA146D Cubemass Endress+Hauser...
  • Page 3 Amennyiben nem tudja elolvasni ezt az útmutatót, akkor Pojasnilo glede potrdila o skladnosti EU megrendelheti az Ön anyanyelvére lefordítva is. Proizvajalec Endress+Hauser s to izjavo o skladnosti in navedbo oznake CE izjavlja, da je ta izdelek skladen s predpisanimi evropskimi smernicami. EK-megfelelőségi nyilatkozat Upoštevane smernice, standardi in dokumenti so navedeni v izjavi o skladnosti.
  • Page 4 XA146D Cubemass A0014068 Endress+Hauser...
  • Page 5 Dieses Dokument ist fester Bestandteil der folgenden Betriebsanleitungen: • MODBUS RS485 – BA142D, Cubemass MODBUS RS485 Es gilt die mitgelieferte, dem Gerätetyp entsprechende Betriebsanleitung. Ergänzende Dokumentation Explosionsschutz-Broschüre: CP021Z/00 Die Explosionsschutz-Broschüre ist verfügbar: • im Download-Bereich auf der Endress+Hauser Internetseite (www.endress.com) Endress+Hauser...
  • Page 6 Gerätetyp Position gewählte Option Beschreibung Gerätefamilie Coriolis Durchfluss-Messsystem Messaufnehmer C Sensor C Elektronik Messumformer • Messumformerelektronik in: [Ex ia] IIC/IIB Cubemass 8CM • Ex d Gehäuse in Ex d IIC bzw. Ex demb IIC Nennweite 01…06 Nennweite des Messaufnehmers Endress+Hauser...
  • Page 7 Cubemass XA146D Grundspezifikationen Position gewählte Option Beschreibung Zulassung 81, 84 ATEX: IECEx: Zündschutzart: 0II2G, II2D Ex d[ia] IIC Ex tD A21 IP6X T6 – T1 ATEX: IECEx: Zündschutzart: 0II2G, II2D Ex demb[ia] IIC Ex tD A21 IP6X T6 – T1 Die IEC 60079-0: 2004 sieht derzeit noch keine Kennzeichnung des Schutzniveaus des Geräts vor.
  • Page 8 XA146D Cubemass Sicherheitshinweise: • Bestehende, nationale Vorschriften bezüglich der Montage, elektrischen Installation, Inbetriebnahme Allgemeine und Wartung von Geräten im explosionsgefährdeten Bereich müssen eingehalten werden (z.B. EN/IEC 60079-14). • Montage, elektrische Installation, Inbetriebnahme und Wartung der Geräte dürfen nur durch Fachpersonal erfolgen, welches im Explosionsschutz ausgebildet ist.
  • Page 9 Cubemass XA146D • Für Anschluss des Elektronikgehäuses in Ex e gilt: Es dürfen nur gesondert bescheinigte Kabel- und Leitungseinführungen, Verschlussstopfen (Ex e II) verwendet werden, welche für eine Betriebstemperatur bis 80 °C geeignet und für die Schutzart IP 67 tauglich sind. Die Kabel sind fest zu verlegen, es ist eine ausreichende Zugentlastung sicher zu stellen.
  • Page 10 Abb. 3: Vorgehensweise bei Ermittlung der max. Oberflächentemperatur In der zugehörigen Temperaturtabelle (Kompaktausführung) bestimmt die Auswahl des Messgerätes (Cubemass), die Nennweite (DN 4) und die Umgebungstemperatur T (60 °C) die Zeile in der nach der max. Messstofftemperatur gesucht werden soll.
  • Page 11 Open Collector MODBUS RS485 galvanisch getrennt RS485 gemäß Standard EIA/TIA-485 Servicestecker Der Servicestecker dient ausschließlich zum Anschluss von Endress+Hauser freigegebenen Service-Interfaces. Warnung! Der Servicestecker darf nicht bei vorhandener explosionsfähiger Atmosphäre angeschlossen werden. Technische Daten Abmessungen Die Abmessungen der Geräte für den explosionsgefährdeten Bereich entsprechen den Maßangaben in der Technischen Information.
  • Page 12 XA146D Cubemass Endress+Hauser...
  • Page 13 This document is an integral part of the following Operating Instructions: • MODBUS RS485 – BA142D, Cubemass MODBUS RS485 The Operating Instructions pertaining to the device apply. Supplementary documentation Explosion-protection brochure: CP021Z/00 The Explosion-protection brochure is available: • In the download area of the Endress+Hauser website (www.endress.com) Endress+Hauser...
  • Page 14 Instrument Coriolis flow measuring system family Sensor Sensor C Electronics Cubemass 8CM transmitter • Transmitter electronics in: [Ex ia] IIC/IIB • Ex d housing in Ex d IIC or Ex demb IIC Nominal 01…06 Nominal diameter of the sensor diameter...
  • Page 15 Cubemass XA146D Basic specifications Position Selected option Description Approval 81, 84 ATEX: IECEx: Explosion protection: 0II2G, II2D Ex d[ia] IIC Ex tD A21 IP6X T6 – T1 ATEX: IECEx: Explosion protection: 0II2G, II2D Ex demb[ia] IIC Ex tD A21 IP6X T6 – T1 IEC 60079-0: 2004 currently does not provide for any identification marking for the protection level of the device.
  • Page 16 XA146D Cubemass Safety instructions: • Compliance with national regulations relating to the installation, connection to the electricity supply, General commissioning and maintenance of devices in potentially explosive atmospheres is mandatory, if such regulations exist (e.g. EN/IEC 60079-14). • Installation, connection to the electricity supply, commissioning and maintenance of the devices must be carried out by qualified specialists trained to work on Ex-rated devices.
  • Page 17 Cubemass XA146D • The following applies when connecting the electronics housing in Ex e: Only separately certified cable and pipe entries, drain plugs (Ex e II) must be used, which are suitable for an operating temperature of up to 80 °C and for an ingress protection of IP 67. The cables must be installed such that they are fixed in place.
  • Page 18 Fig. 3: Procedure for calculating the max. surface temperature In the associated temperature table (compact version), the selection of the measuring device (Cubemass), the nominal diameter (DN 4) and the ambient temperature T (60 °C) determine the line in which the max.
  • Page 19 RS485 as per Standard EIA/TIA-485 Service adapter The service adapter is only used for connecting service interfaces approved by Endress+Hauser. Warning! It is not permissible to connect the service adapter whilst the atmosphere is considered to be explosive.
  • Page 20 XA146D Cubemass Endress+Hauser...
  • Page 21 – BA142D, Cubemass MODBUS RS485 Le manuel de mise en service fourni et correspondant au type d'appareil fait foi. Documentation complémentaire Brochure sur la protection contre les risques d'explosion : CP021Z/00 Cette brochure est disponible : • sur la page Internet Endress+Hauser (www.endress.com) Endress+Hauser...
  • Page 22 Famille d'appareils 8 Débitmètre Coriolis Capteur Capteur C Electronique Transmetteur • Electronique de transmetteur en : Cubemass 8CM [Ex ia] IIC/IIB • Boîtier Ex d en Ex d IIC ou Ex demb IIC Diamètre nominal 01…06 Diamètre nominal du capteur Endress+Hauser...
  • Page 23 Cubemass XA146D Spécifications de base Position Option Description sélectionnée Agrément 81, 84 ATEX : IECEx : Mode de protection : 0II2G, II2D Ex d[ia] IIC Ex tD A21 IP6X T6 – T1 ATEX : IECEx : Mode de protection : 0II2G, II2D Ex demb[ia] IIC Ex tD A21 IP6X T6 –...
  • Page 24 Cubemass XA146D Conseils de sécurité : • Les prescriptions nationales existantes concernant le montage, l'installation électrique, la mise en service et Généralités la maintenance d'appareils en zone explosible doivent être respectées (par ex. EN/CEI 60079-14). • Le montage, l'installation électrique, la mise en service et la maintenance des appareils ne doivent être effec- tués que par un personnel qualifié, lequel a été...
  • Page 25 Cubemass XA146D • Règle valable pour le raccordement du boîtier de l'électronique en atmosphère Ex e : Seules des entrées de câbles et de conducteurs et bouchons de fermeture certifiés séparément (Ex e II) doivent être utilisés ; ceux-ci doivent être appropriés pour une température de service jusqu'à 80 °C et être adaptés pour le degré...
  • Page 26 Fig. 3: Procédure de détermination de la température de surface max. Dans le tableau des températures correspondant (version compacte), la sélection de l'appareil (Cubemass), le diamètre nominal (DN 4) et la température ambiante T (60 °C) déterminent la ligne dans laquelle la température maximale du produit mesuré...
  • Page 27 Dimensions techniques Les dimensions des appareils destinés aux zones explosibles correspondent à celles dans l'Information techni- que. Poids Le poids de la version Ex d correspond au poids dans l'Information technique. Remarque ! Information technique pour Cubemass → TI106D Endress+Hauser...
  • Page 28 www.endress.com/worldwide XA146D/06/a3/02.10 71109584 FM+SGML 6.0...
