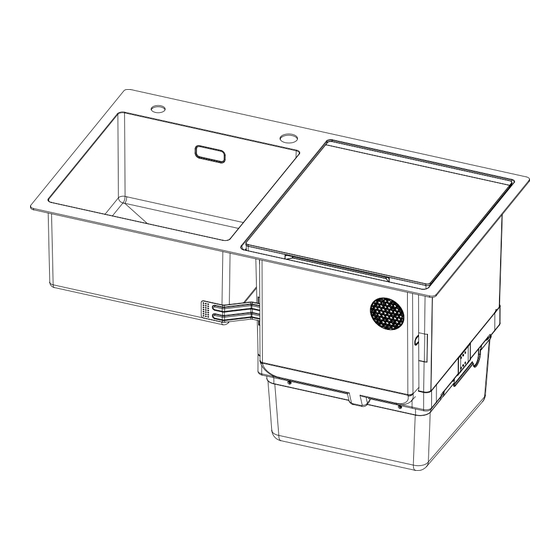

MALLECO SINK WITH DISHWASHER

(FOR HOUSEHOLD USE)

厨盆式洗碗机

K-32644T-NA

KOHLER (CHINA) INVESTMENT CO., LTD.

NO.158, JIANGCHANG SAN ROAD, JING'AN

DISTRICT, SHANGHAI, PRC POST CODE: 200436

科勒（中国）投资有限公司

中国上海市静安区江场三路 158号邮编： 200436

1506776-T5-A

Need help?

Do you have a question about the MALLECO K-32644T-NA and is the answer not in the manual?

Questions and answers
