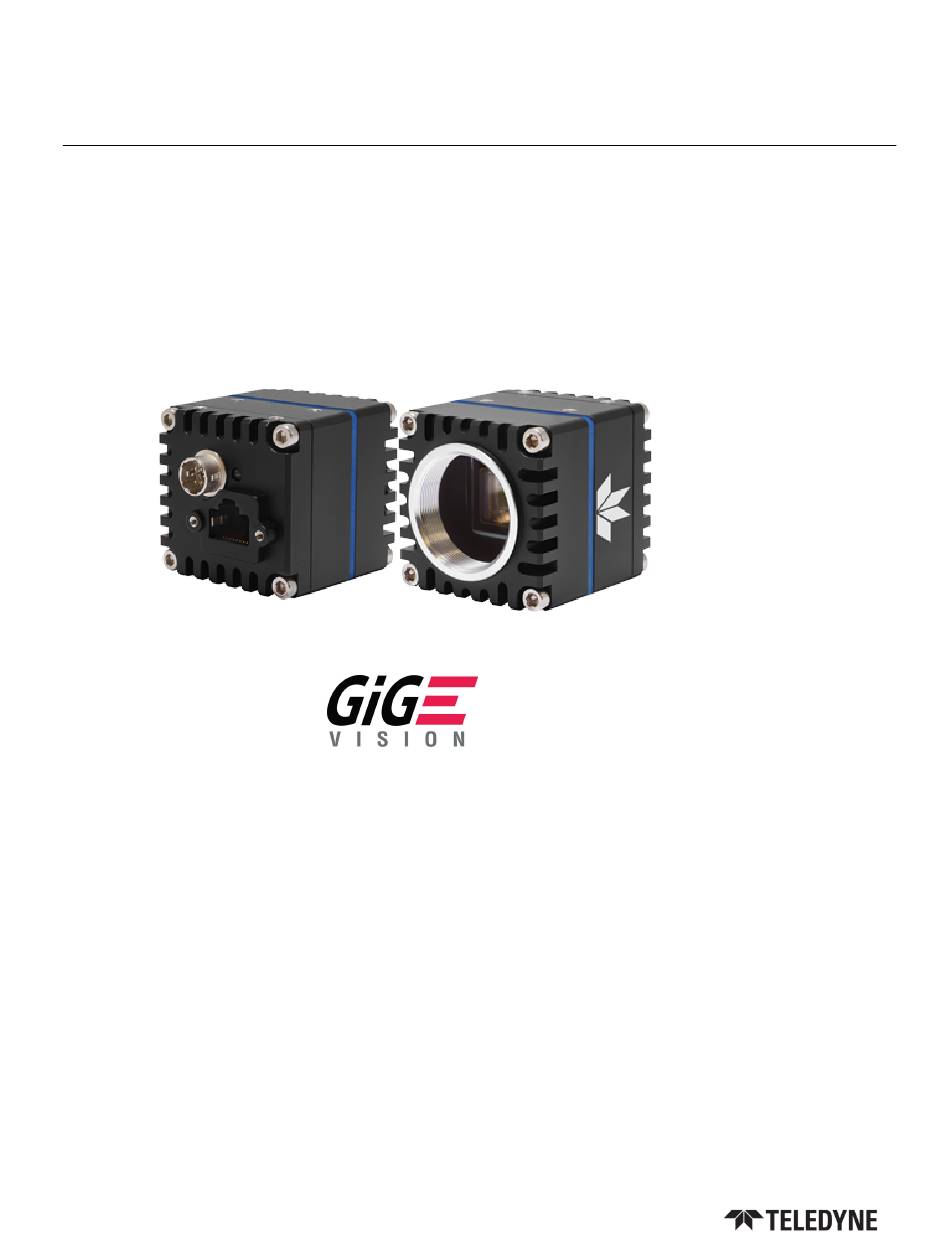

- Page 1 INSTALLATION GUIDE ® FORGE 1GIGE SWIR SERIES INDUSTRIAL MACHINE VISION CAMERAS Version 1.1 Revised 11/5/2024 11/5/2024 ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved.
- Page 2 For more detailed information about recycling of this product, please contact us. Trademarks Names and marks appearing on the products herein are either registered trademarks or trademarks of Teledyne FLIR, LLC and/or its subsidiaries. Licensing To view the licenses of open source packages used in this product please see...
- Page 3 6.3 Data Interface Connector 6.3.1 Ethernet Connector 6.4 Data Interface Cables 6.5 General Purpose Input/Output (GPIO) 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 4 7.1 General Purpose Input/Output (GPIO) 7.2 GPIO Electrical Characteristics 7.3 Input Timing Characteristics 7.4 Output Timing Characteristics 8 Troubleshooting 8.1 Support 8.2 Status Indicator LED Contacting Teledyne FLIR IIS Revision History 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc.
- Page 5 These resources as well as knowledge base articles and application notes can be found on the Support page for the product. Forge 1GigE SWIR Camera Resources and Support 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide...
- Page 6 Terms and Conditions on our website. Your Teledyne FLIR IIS machine vision camera is a precisely manufactured device and should be handled with care. Here are some tips on how to care for the device. Avoid electrostatic charging. When handling the camera unit, avoid touching the lenses. Fingerprints will affect the quality of the image produced by the device.
- Page 7 Card) Tripod adapter (optional) (see Mounting your Forge 1GigE SWIR Camera) Lighting (application dependent) Teledyne FLIR IIS sells a number of the additional parts required for installation. Visit the Teledyne FLIR IIS Accessories page. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera...
- Page 8 Follow the steps in each setup dialog. 3. Optimize the settings of your Ethernet card a. In StartÒTeledyne Spinnaker SDKÒSpinView, right click on the Network Adapter and select Adapter Configuration. The Adapter Config Utility lists your network adapters and allows you to access the following:...
- Page 9 GPIO is used for power, trigger, serial input output, and strobe. 4. Confirm Successful Installation Run the SpinView application: StartÒTeledyne Spinnaker SDKÒSpinView The SpinView application can be used to test the camera's image acquisition capabilities and make changes to the camera's installation configuration.
- Page 10 Spinnaker API examples are provided for C, C++, C#, and VB.NET languages. These examples are precompiled for your convenience. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide...
- Page 11 Getting Started with Matrox Design Assistant Getting Started with NI-MAX and LabVIEW Getting Started with NI Vision Builder for Automatic Inspection 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide...
- Page 12 Alternatively, SpinView is a tool included with the Spinnaker SDK that allows you to set the internet protocol (IP) configuration for any GigE interface cards or Teledyne FLIR IIS GigE Vision cameras connected to your system. Using SpinView, you can: 11/5/2024 ®...
- Page 13 For example, for an image that is VGA, 82 FPS, Mono8: 640 (H) x 480 (W) x 82 (FPS) x 1 (BPP) = ~25 MB/s 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 14 To control Heartbeat Timeout use: 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 15 To disable Heartbeat use: GenICam—Under Transport Layer Control GevGVCPHeartbeatDisable. Spinnaker API—The Spinnaker SDK supports disabling heartbeat. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 16 Firmware is programming that is inserted into the programmable read-only memory (programmable ROM) of most Teledyne FLIR IIS cameras. Firmware is created and tested like software. When ready, it can be distributed like other software and installed in the programmable read-only memory by the user.
- Page 17 5 Configuring the Forge 1GigE SWIR Camera Setup Warning! Do not disconnect the camera during the firmware update process. Related Knowledge Base Articles Teledyne FLIR machine vision software and firmware version numbering systems Determining my camera's firmware version Should I upgrade my camera firmware or software? 11/5/2024 ®...
- Page 18 M3X0.5 holes 4 mm deep—4 on the top and 4 on the bottom See Mounting your Forge 1GigE SWIR Camera. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 19 Download 3D CAD Models / Drawings from our website: CAD Models Forge 1GigE SWIR Camera Dimensional Drawing 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 20 The 8-pin RJ-45 Ethernet jack is equipped with two (2) M2 screwholes for secure connection. Pin assignments conform to the Ethernet standard. Data Interface Cables To purchase a recommended cable from Teledyne FLIR IIS, visit the AccessoriesàCables page. Category 5e or 6 cables up to 100 meters in length should be used for connecting the camera to the network interface card on the host system.
- Page 21 Mount the camera on a heat sink, such as a camera mounting bracket, made out of a heat-conductive material like aluminum. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 22 SWIR wavelength. Depending on the lighting of the scene, an additional filter applied to the lens may further narrow the wavelength. Lenses are not included with cameras. Teledyne FLIR IIS sells a number of lenses compatible with our cameras from our Accessories àLenses page.
- Page 23 Readout time for a line is equal to 1/Horizontal Line Frequency. Some advantages of global shutter are more uniform brightness and minimal motion blur. 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 24 3—Open drain output, requires pullup resistor 4—Output low level depends on the output voltage / pullup resistor combination 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide...
- Page 25 Opto-isolated Output Current 25 mA 3.3 V Output Current 120 mA Opto-isolated input circuit 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 26 4.7 kΩ 5.2 mA Values are for reference only Non-isolated input and output circuit 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 27 1.26 V Cycle Rise Time 10.8 μs Cycle Fall Time 2 μs Current 4.1 mA 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 28 12 μs 12 μs MPPW Typical Negative Pulse Width 6 μs 6 μs MNPW 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 29 5.3 μs 5.5 μs Opto Isolator Delay (Low to High) 12.7 μs 15.2 μs 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 30 3.9 μs 4.1 μs Opto Isolator Delay (Low to High) 26.8 μs 25.1 μs 11/5/2024 ® Teledyne FLIR IIS Forge 1GigE SWIR Camera ©2015-2024 FLIR Integrated Imaging Solutions Inc. All rights reserved. This document does Installation Guide not contain export-controlled information.
- Page 31 8 Troubleshooting Troubleshooting Support Teledyne FLIR IIS endeavors to provide the highest level of technical support possible to you. Most support resources can be accessed through your product's Support page. Forge 1GigE SWIR Camera Resources and Support Contacting Technical Support Before contacting Technical Support, have you: 1.
- Page 32 Contacting Teledyne FLIR IIS Contacting Teledyne FLIR IIS For any questions, concerns or comments please contact us: Email General questions Support Ticket Technical support Support Forum Teledyne FLIR IIS Community Find specifications, support articles, downloads on the website Teledyne FLIR IIS...
