Belleze Bower 014-HG-41899 Manual

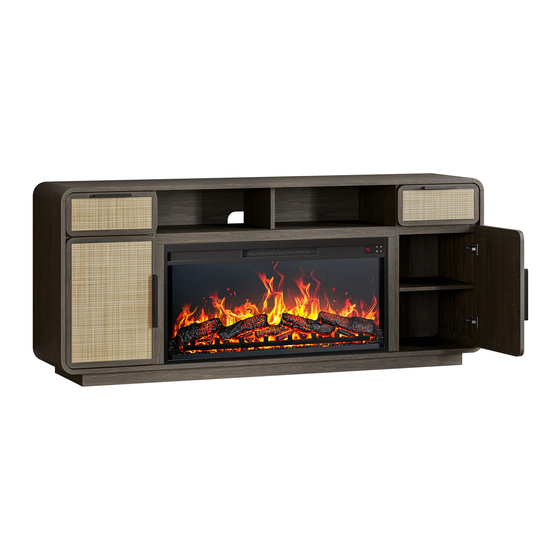

Tv stand w/ fireplace
Hide thumbs

Advertisement

Table of Contents

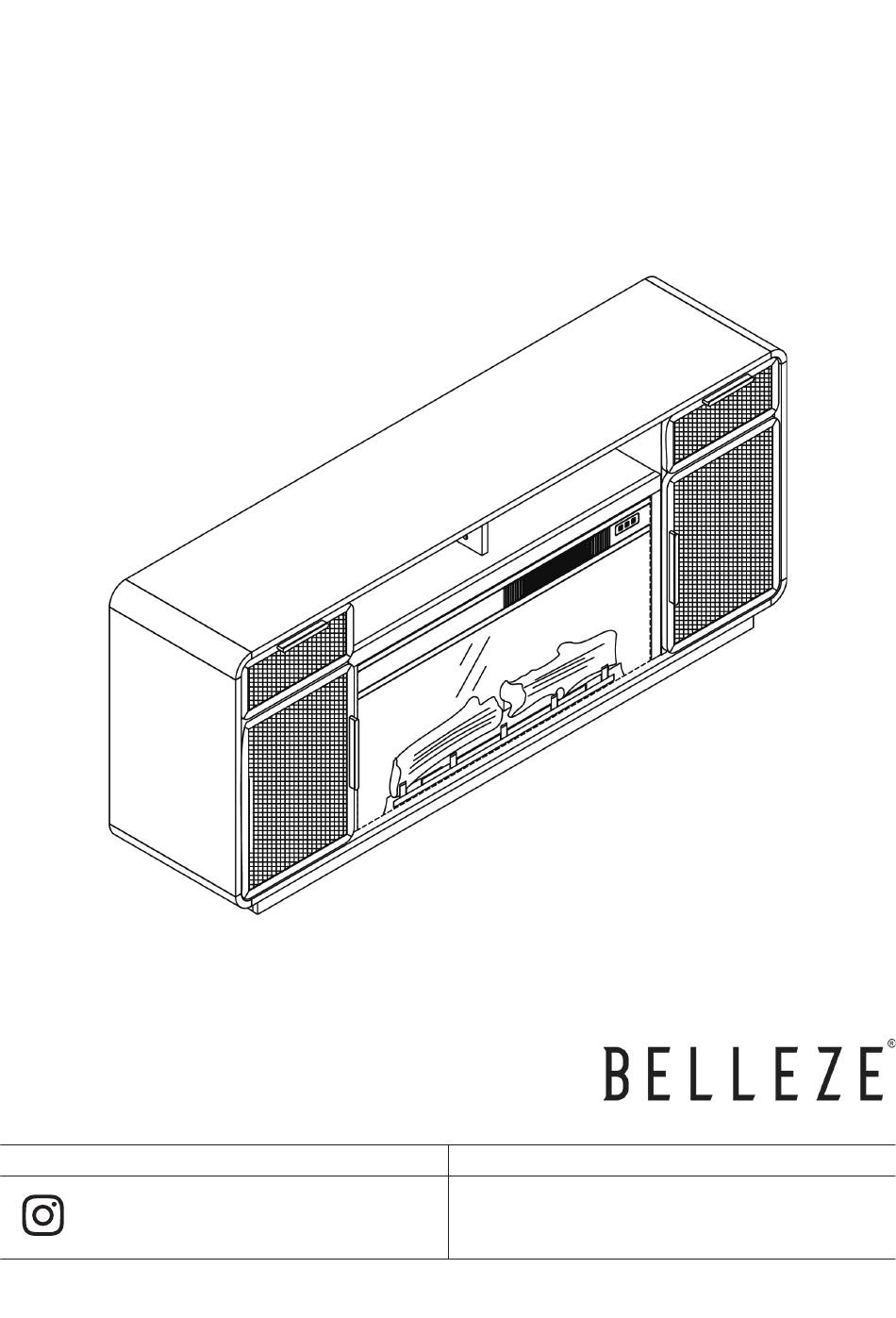

Bower TV Stand w/ Fireplace
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-41899
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bower 014-HG-41899 and is the answer not in the manual?

Questions and answers

Anita Hopper
March 30, 2025

How can I remove piece 13 as I have it on backwards!

0

Summary of Contents for Belleze Bower 014-HG-41899

  • Page 1 Bower TV Stand w/ Fireplace FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41899 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
  • Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 100 mins Weight limitations are as follows: Maximum Load 15 lb Maximum Load 70 lb Maximum Load 20 lb...
  • Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.

  • Page 4: Package Contents

    PACKAGE CONTENTS...
  • Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Bottom Panel Center Panel Left Lateral Panel Right Lateral Panel Left Medial Panel Right Medial Panel Division Panel Side Back Panel Center Back Panel Storage Panel Shelf Crossbar Horizontal Surround Panel Vertical Surround Panel Rounded Corner Strip Long Leg Strip Short Leg Strip...
  • Page 6 PACKAGE CONTENTS 83x + 4x x + 4x 2 x + 2x 83x + x 5 x + 4x 14x + 1x 24x + 2x Install all hardware perpendicular to the opening.
  • Page 7 PACKAGE CONTENTS Install all hardware perpendicular to the opening. v.01 2024...
  • Page 8 Required tools for assembly (Not included) Attach cam bolts to the long leg strips (16).
  • Page 9 Insert wood dowels to the leg strips (16, 17). Note: Make sure to use the correct hardware. v.01 2024...
  • Page 10 Assemble short leg strips (17) to a long leg strip (16). Assemble long leg strip (16) to the other side of the short leg strips (17).
  • Page 12 Attach the leg assembly to the bottom panel (2). Attach cam bolts to the center panel (3) and the horizontal surround panel (13).
  • Page 13 Insert wood dowels to the back panels (9, 10). Note: Make sure to use the correct hardware. v.01 2024...
  • Page 14 Assemble the division panel (8) onto the center panel (3). Assemble center back panel (10) to the center panel (3).
  • Page 15 Assemble the horizontal surround panel (13) to the front of the center panel (3). v.012 2024...
  • Page 16 Attach cam bolts to both sides of the medial panels (6, 7). Turn 180° Turn 180° Insert wood dowels to the medial panels (6, 7).
  • Page 17 Detatch sliders from slide brackets. Slide Bracket Slider Attach slide bracket to medial panels (6, 7). v.012 2024...
  • Page 18 Assemble vertical surround panels (14) to the medial panels (6, 7). Assemble the center panel (3) between the two medial panels (6 ,7).
  • Page 19 Assemble the medial panels on top of the bottom panel (2). v.01 2024...
  • Page 20 Assemble side back panels (9) on top of the bottom panel (2).
  • Page 21 Attach cam bolts to the top panel (1), the lateral panels (4, 5), and the rounded corner strips (15). v.01 2024...
  • Page 22 Insert wood dowels to the top panel (1), lateral panels (4, 5), and shelf crossbars (12).
  • Page 24 Assemble the top panel (1) on top of the stand assembly.
  • Page 25 Secure the side back panels to the medial panels and top panel. v.01252024...
  • Page 26 Assemble the shelf crossbars (12) and lateral panels (4, 5) to the stand assembly. Secure the lateral panels to the side back panels. Note: Make sure to use the correct hardware.
  • Page 28 Slide the drawer bottom panel into the drawer assembly. Attach cam bolts to the drawer front panels (18, 19).
  • Page 29 Assemble drawer front panels (18, 19) to the drawer assembly. Attache drawer handles to the drawer front panels. v.01252024...
  • Page 30 Attach door hinges to the cabinet doors (24). Attach door handles to the cabinet doors (24).
  • Page 31 Slide drawers into the stand. Slide the slider plate to the forward position. Up and down adjustment by loosening the screws on the slide runner. v.01 2024...
  • Page 32 Insert shelf pegs into the stand and put shelf panels (11) onto the pegs...
  • Page 33 Attach cabinet doors to the stand. When the clearance of the door is uneven, Adjust the cabinet door according Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm.
  • Page 34 Attach anti-tipping straps to the back of the stand.
  • Page 35 Attention: Be careful when handling glass panel. v.01 2024...
  • Page 37 A x the stand to a wall. device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. •...
  • Page 38 Warning Serious or fatal crushing injuries may occur if the furniture tip-over. order to prevent the furniture from tipping over. stability and load bearing capacity of the furniture. If you are uncertain about which type of device to use, please contact us or your local hardware store. Warning Only place items on top of the product if they meet the recommended size and weight limits.
  • Page 39 WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
  • Page 40 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
  • Page 41 v.01 2024...
  • Page 43 © All copyright of this document belongs to BELLEZE. This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.01 2024...

  • Page 44: Warranty

    WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
