Summary of Contents for HDA 2.58.936
- Page 1 MHUB Music Input Adapter CODE: 2.58.936 Product Guide (English UK) Revision 1: 15/03/24...
- Page 2 Contents Introduction Important information Features / In the box Specifications MHUB Music Input Adapter port diagram + description Example wiring diagram + explanation 10-11 Legals: Compliance, Conformity, Product Guarantee 12-13 Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com...
- Page 3 MHUB Music Input Adapter Add an audio source to MHUB or MHUB S (A) systems. The MHUB Music Input Adapter enables the addition of an audio-only input, such as a music streamer, audio mixer, microphone*, public address system, chimes, etc, as one of the selectable sources as part of a standalone or stacked MHUB or MHUB S (A) multizone system. Popular use cases would include adding a music source input such as a Sonos Port or door chime to a multizone system without requiring a separate audio matrix device.
- Page 4 IMPORTANT For optimum performance and safety, please read these instructions carefully before connecting, operating or configuring this product. Please keep this manual for future reference. Surge protection is recommended This device contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
- Page 5 Analogue formats: PCM 2.0 HDMI 2.0b (18Gbps), DVI 1.0 Name: MHUB Music Input Adapter Product code: 2.58.936 HDCP 2.2 MHUB Music Input Adapter Video resolutions up to 4K@50/60Hz (YUV4:4:4) including 10-bit HDR pass-through 5V 1A Power Supply with adapters (UK, EU, US, AU)
-
Page 6: Specifications
Specifications HDMI version HDMI 2.0b HDCP compliance 2.2 & 1.4 Video bandwidth 18Gbps Video resolution Up to 4K@60Hz (4:4:4) with HDR Colour space RGB, YCbCr 4:4:4, YCbCr 4:2:0 Colour depth Up to 12-bit Inputs: x1 HDMI (Type A), x1 3.5mm Stereo, x1 Optical Video &... - Page 7 Operating temperature 0°C - 40°C / 32°F - 104°F Storage temperature -20°C - 60°C / -4°F - 140°F Relative humidity 20 - 90% (Non-condensing) Housing Steel Colour Grey (Carbonite) Dimensions (W/D/H) mm 73.5 / 60.7 / 17 Weight 122g / 4.2 ounces Package weight 350g / 12.3 ounces...
-
Page 8: Port Diagram

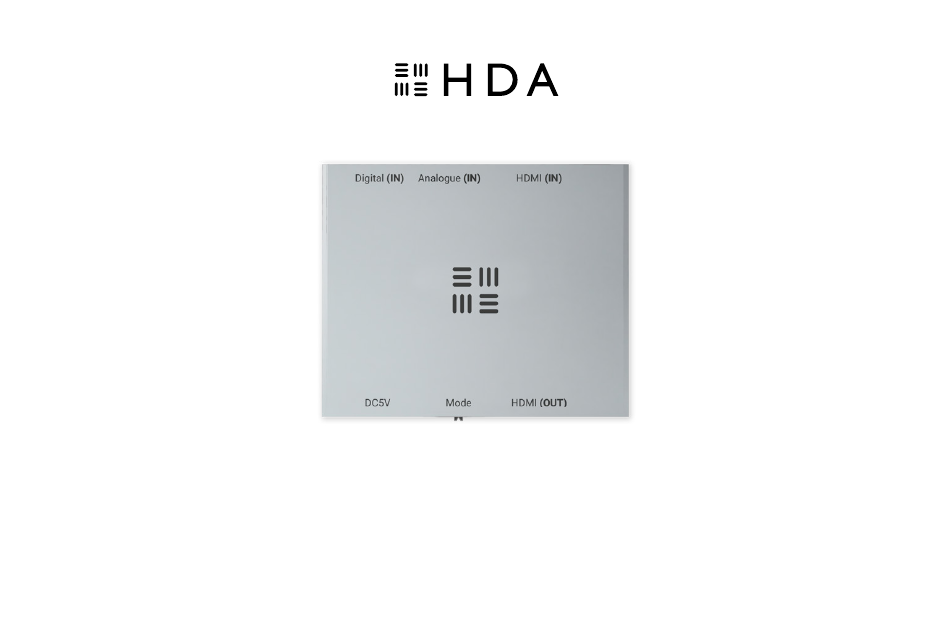

Port diagram Digital (IN) Analogue (IN) HDMI (IN) DC5V Mode HDMI (OUT) 1 2 3 Help is only an email away: support@hdanywhere.com or online http://support.hdanywhere.com... - Page 9 Description 1. DC5V: Connect the supplied power supply to this port to provide power to the MHUB Music Input Adapter. 2. Power: Indicator light. If this light is on and solid then the MHUB Music Input Adapter has power. 3. Mode: Input audio selector switch. The switch has three modes of operation (labelled 1,2,3) and the position determines what audio input is routed to the “HDMI (OUT)”...
- Page 10 Example wiring/usage diagram Using the MHUB Music Input Adapter to add an audio source to MHUB or MHUB S (A) system. The MHUB Music Input Adapter provides the ability to add audio input sources (e.g a Sonos Port) to an existing MHUB S or MHUB (A) system.
-
Page 11: Hdmi Cable
Display Receiver Bedroom Ensuite Living Room VIDEO + AUDIO ZONE AUDIO ZONE VIDEO + AUDIO ZONE APPLE TV SONOS SONOS AUDIO AUDIO AUDIO 3RD PARTY MULTI-ZONE AMPLIFIER MHUB S (8+8x8) 100A LINE-LEVEL VOLUME CONTROL 1 2 3 Switch position: 3 HDMI Cable MHUB Music Input Adapter Cat 6 / HDBaseT... -
Page 12: Year Guarantee
OUR GUARANTEE TO YOU is in compliance with the essential requirements and other relevant 2. We, HDANYWHERE warrant to you, the end user of the HDA hardware (the “Products”) provisions of the following Directives: 2006/95/EC (LVD Directive); that on the date of delivery of the Products to you, and from that date to the end of the period specified in your user manual or to the end of the period as extended by paragraph 2004/108/EC (EMC Directive);... - Page 13 (c) give us a reasonable opportunity to examine the Products in question; party products in conjunction with the Products. (d) provide us with an order number and a dated sales or delivery receipt from an HDA Distributor, HDA Pro or other authorised dealer, reseller or installer of the Products.
- Page 14 Let us know what you think. We would love to hear how we could further improve our products and services. If we can make something better, please let us know! support@hdanywhere.com Copyright © HDANYWHERE. HDANYWHERE is a trading name of HD Connectivity Ltd. Registered in England &...
