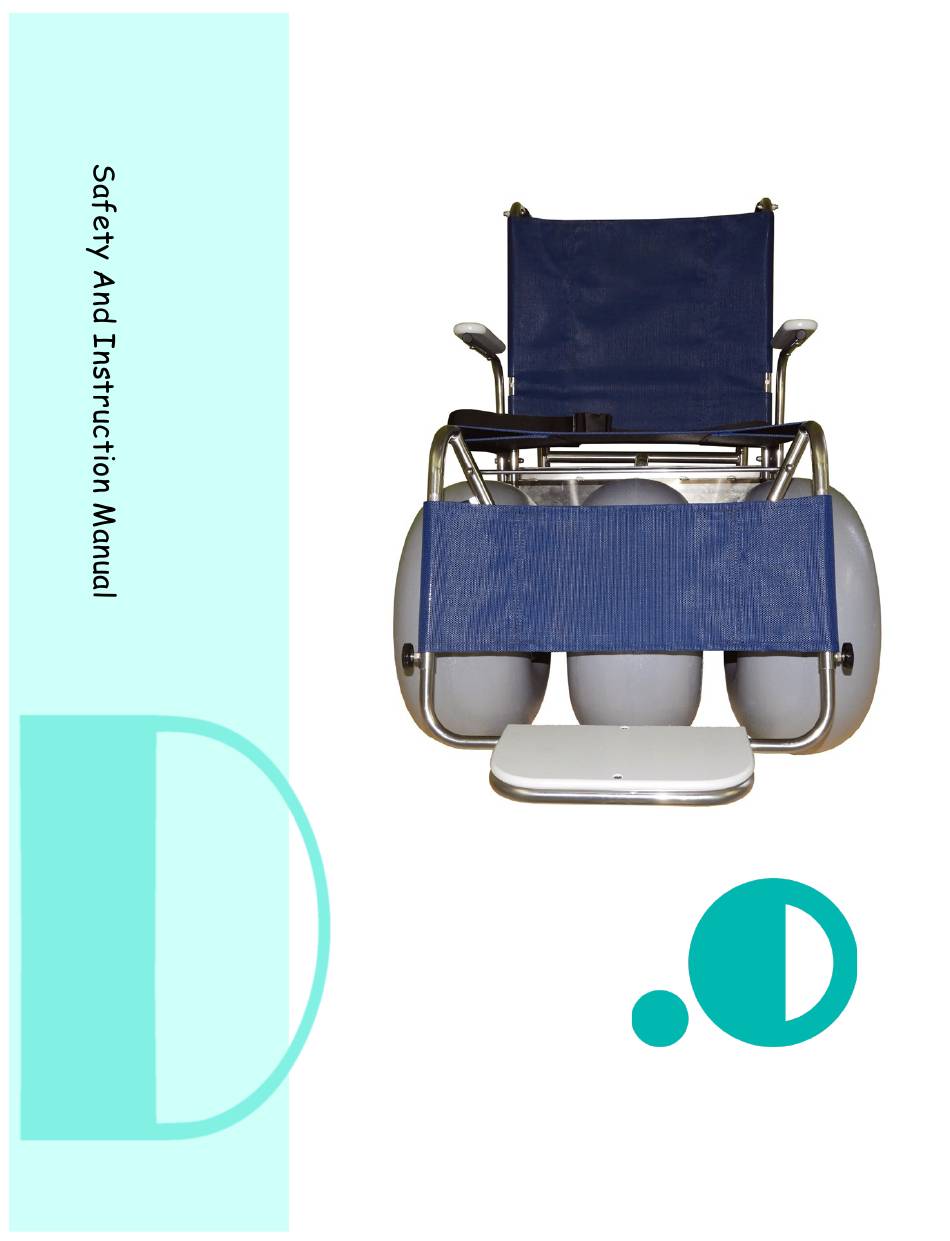

- Page 1 Congratulations On your New Husky Debug Beach Wheelchair DeBug Mobility Products 78 E Nine Mile Rd Pensacola, FL 32534 Corporate Address Deming Designs, Inc. 1090 Cobblestone. Dr. 850-478-5765 www.beachwheelchair.com Pensacola, FL 32514...
- Page 2 Maintenance Instructions. Thank-you The De-Bug Mobility Products Team We love to hear and see how much you are en- joying your Debug Husky Wheelchair. Feel free to email us any pictures or videos, or post them to our website www,beachwheelchair.com Corporate Address Deming Designs, Inc.
-
Page 3: Usage & Safety
Users must always be accompanied by a responsible, able-bodied adult. Using your DeBug Beach Wheelchair Always maintain control of your DeBug while in use. When the DeBug is not in use, the safety brakes must be engaged to prevent the chair from moving unexpectedly. -
Page 4: Disassembling Instructions
Assembly / Disassembly of DeBug Husky WheelChair 5/16”-18tp X 1-1/4SS Rear Sus- 1/4”- 20tp X 1-1/4” SS Backrest pension Bolt Bolts 2 each Legrest Adjustment Knobs 1/4 - 20 X 2,25” SS Hex Bolts 2 each 2 each 1” SS Main Axle Flat Washer... - Page 5 Optional third 49 centimeter wheel for Husky beach The diagram above is a bottom view showing the main axle spacer and washer configuration with the optional third wheel shown. the arrows starting from top two bot- tom or pointing at 1.
-
Page 6: General Specifications
Restocking Fees ber the higher quality of stainless The DeBug Beach Wheelchair frame is constructed using #316L Stainless Steel tubing which is a higher grade than standard “#304 marine grade” stainless. Weight capacity 400 pounds. The rear Caster wheels rotate 360 degrees. The wheel hubs are made from poly-nylon material to eliminate saltwater corrosion.
