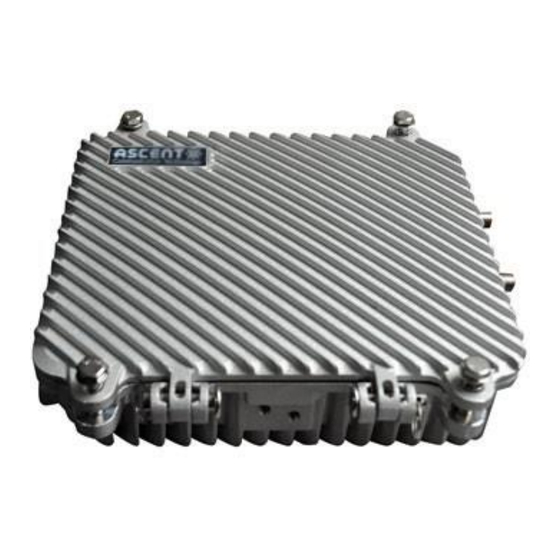

- Page 1 ARF130C 1.2GHz MDU RF Amplifier Quick Reference Guide Revision 2A...
- Page 2 Quick Reference Guide Revision 2A Copyright © 2024 Ascent Communication Technology Limited. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Ascent Communication Technology is strictly forbidden. This document is produced to assist professional and properly trained personnel with installation and maintenance issues for the product.
- Page 3 ARF130C 1.2GHz MDU RF Amplifier Table of Contents 1 Overview ..........................4 1.1 Features · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 5 1.2 Block Diagram ·...
- Page 4 MDU, FTTB or FTTC applications with high output up to 110dBuV output. The ARF130C amplifier has a forward path gain of 38dB and the GaAs amplifier module provides a maximum output of 110dBuV. The forward path supports up to 1.2GHZ frequency band and the return path supports 54MHZ, 65MHZ, 85MHZ, 204MHZ, etc.
- Page 5 ARF130C 1.2GHz MDU RF Amplifier 870MHz, 1003MHz, 1218MHz optional Frequency splitting is optional 204/258 frequency splitting supports DOCSIS 3.1 GaAs amplifier module, high output level and low distortion Plug-in duplex filters, equalizers, and attenuators ...
- Page 6 Do not attempt to service this unit yourself. Refer all servicing to Ascent Communication Technology qualified service personnel only. On receiving your new ARF130C, you should carefully unpack and examine the contents for loss or damage that may have occurred during shipping. Refer to warranty registration if loss or damage has occurred.
- Page 7 ARF130C 1.2GHz MDU RF Amplifier Keep all packing boxes and packaging of the ARF130C for future transport. Use only the original packaging of the ARF130C when transporting. This packaging has been specifically designed to protect the equipment. After undoing the center lid bolt, lift the lid of the unit and fold it open. If the case will not open with normal force, a flat-bladed screwdriver can be used to lever the case apart.
- Page 8 ARF130C 1.2GHz MDU RF Amplifier The AC input power to the amplifier is shown. RF adaptors are factory installed. LOCAL AC IN Solutions Provider for FTTx, RFoG and HFC www. ascentcomtec.com Page 8 of 11...
- Page 9 ARF130C 1.2GHz MDU RF Amplifier Balancing the Forward Path Verify the forward input level via RF input Test Point, measure the signal level, if it is not specified in the system design, you must adjust the Input level higher or lower.
- Page 10 Damage caused by fluctuation in electrical current, lightning, power surges, etc. Damage resulting from overhaul, repair or attempt to repair caused by someone other than Ascent Communication Technology’s qualified service personnel. Any product, in which the serial number has been defaced, modified or removed.
- Page 11 Cau Giay District, Hanoi 10649, VIETNAM WEB: www.ascentcomtec.com EMAIL: sales@ascentcomtec.com Specifications and product availability are subject to change without notice. Copyright © 2024 Ascent Communication Technology Limited. All rights reserved. Ver. ACT_ARF130C_RF_Amplifier_QRG_V2a_Aug_2017 Solutions Provider for FTTx, RFoG and HFC www. ascentcomtec.com Page 11 of 11...
