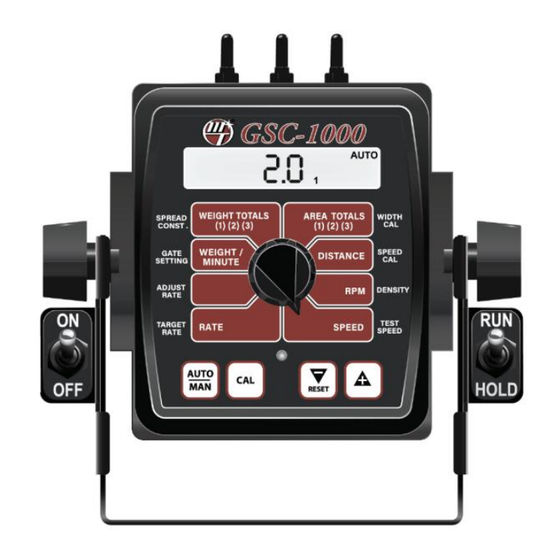

- Page 1 Micro Trak GSC-1000 Controller Quick Set-up Guide Montag Manufacturing, Inc 3816 461 Emmetsburg, IA 50536 www.montagmfg.com Ph 712-852-4574 Models 2108 and Gen 1 Single section P004234 (Rev A, 1/9/2025)
- Page 2 Trak GSC-1000 Reference Manual before proceeding with Montag set-up. Start by mounting the controller in tractor cab and route harness to Montag equipment. Care should be taken to route in manner that harness will not be pinched or stretched when folding or turning. Power the controller with switched power connection from cab of tractor on 7-amp minimum fused circuit.
- Page 3 10 lbs Gate Setting Spreader Constant See Graphs Below Width Cal Width of bar (Inches) Speed Cal .189 Below are charts for your specific machine setup. P004234 – DOCUMENT – Micro Trak GSC-1000 Controller Quick Reference Guide – REV A...
- Page 4 Examples: 4 Meter = 15230, 6 Meters = 10153, 8 Meters = 7615 Width Cal = Toolbar width (ft) x 12 Examples: 10’ = 120, 25’ = 300, 30’ = 360, 40’ = 480 P004234 – DOCUMENT – Micro Trak GSC-1000 Controller Quick Reference Guide – REV A...
- Page 5 Examples: 8 Meter = 1860, 12 Meters = 1240, 16 Meters = 930, 24 Meters = 620 Width Cal = Toolbar width (ft) x 12 Examples: 20’ = 240, 30’ = 360, 40’ = 480, 60’ = 720 P004234 – DOCUMENT – Micro Trak GSC-1000 Controller Quick Reference Guide – REV A...
- Page 6 Once the controller is running the same RPM as the Montag Toolbox App, the machine is ready to run product. The spreader constant number may need to be adjusted to fine tune the machine once in the field.
- Page 7 The Montag GSC-1000 has a case drain alarm built into the harnessing. This is to monitor the hydraulic case drain pressure. If the buzzer alarms, verify that the zero pressure case drain is connected properly and that there are no obstructions between the hydraulic manifold and the tractor hydraulic sump. Do not operate until the issue is alleviated.
