- Page 1 Design and development of electronic systems for lifts Rev. n. 05 Data: 29/09/09 PROGRAMMABLE LCD DISPLAY Car position indicator MONOCOLOR Programming manual TRICOLOR_03...
- Page 2 Technical characteristics ..………………………………………………….. pag. 2 Connection diagram……………………………………………………………. pag 3 Display pinout…………………………………………………………………... pag. 3 Example of application………………………………………………………... pag. 4 Mechanical mounting ……………………………………………………….… pag. 5 Characters ………..….........…………………………... pag. 6 Programming ..................... pag. 7 Summary of programming…………………………………………………….. pag. 10 MONOCOLOR………………..............pag. 11 TRICOLOR……………………..............pag. 11...
- Page 3 You will find useful information and advice for correct assembly and maintenance: Check the packaging integrity During opening do not damage the board with sharp objects (scissors…) To avoid damages use the board only with appropriate bracelet to lead electrostatic charges to ground. MONOCOLOR TRICOLOR TECHNICAL CARACTERISTICS. VISIBLE AREA...
- Page 4 CONNECTION DIAGRAM POWER SUPPLY INPUTS AVIABLE FOR MONOCOLOR: - FS OUT OF SERVICE) Increase volume INPUTS AVIABLE FOR LCD PARALLEL DISPLAY of the buzzer TRICOLOR: COMMON ANODE(POSITIVE COMMON) - AA (SET ALARM) - AR (RECEIVED ALARM) POWER SUPPLY LCD PARALLEL DISPLAY COMMON...
- Page 5 COMMON ANODE ENCODER-16 WITH COMMON ANODE PARALLEL DISPLAY. COMMON ANODE DISP 1 POLE FOR FLOOR POWER SUPPLY COMMON ANODE ENCODER BINARY BINARY DISPLAY LCD COMMON ANODE BINARY LOGIC PROGRAMMING (point M 2 in the programming menu )
- Page 6 MECHANICAL BOARD MOUNTING.
- Page 7 Characters:...
- Page 8 PROGRAMMING MODE In the Parallel Car Position Indicator’s board are available 2 programming buttons called SELECT (P1 button) and ENTER (P2 button). SELECT button is used to choose a menu or change a parameter, while ENTER button allow to confirm the choice. Press the SELECT button to enter into modality of programming, while wait the timeout of 30 seconds to exit programming mode without modify any parameter.
- Page 9 BINARY CODING TRUTH TABLE BINARY INVERTED CODING TRUTH TABLE VISUALIZED VISUALIZED I5 = MSB I5 = MSB NUMBERS NUMBERS =LSB =LSB OFF: input disabled (switch open) OFF: input disabled (switch open) ON: input enabled (switch close) ON: input enabled (switch close) BCD TRUTH TABLE VISUALIZED I1= LSB...
- Page 10 7 SEGMENTS CODING TRUE TABLE ( If you enable an input, one of the seven segment turn on). SEGMENTS PART 1 SEGMENTS PART 2 I10 I11 I12 I13 I14 a1 b1 c1 d1 e1 g1 a2 b2 NOTE: The schematic drawing is refered to english flag display that in this case is used as seven segment display.
- Page 11 With the SELECT button is possible to change the type of gong in a range from 1 to 3 listening to it every time it is made scrolling. • Press the ENTER button to confirm the selected type of gong. The programming procedure is completed and the data are stored.

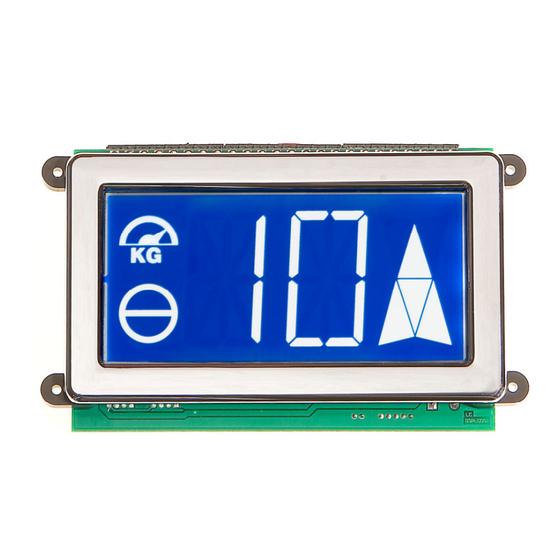

- Page 12 +LE connector (positive pole) and GND connector (negative pole). This anode common display is available on application also cathode common. PROGRAMMABLE LCD DISPLAY OPTION: MONOCOLOR This display has 2 icon for 2 different types of messages: - OVERLOAD...
