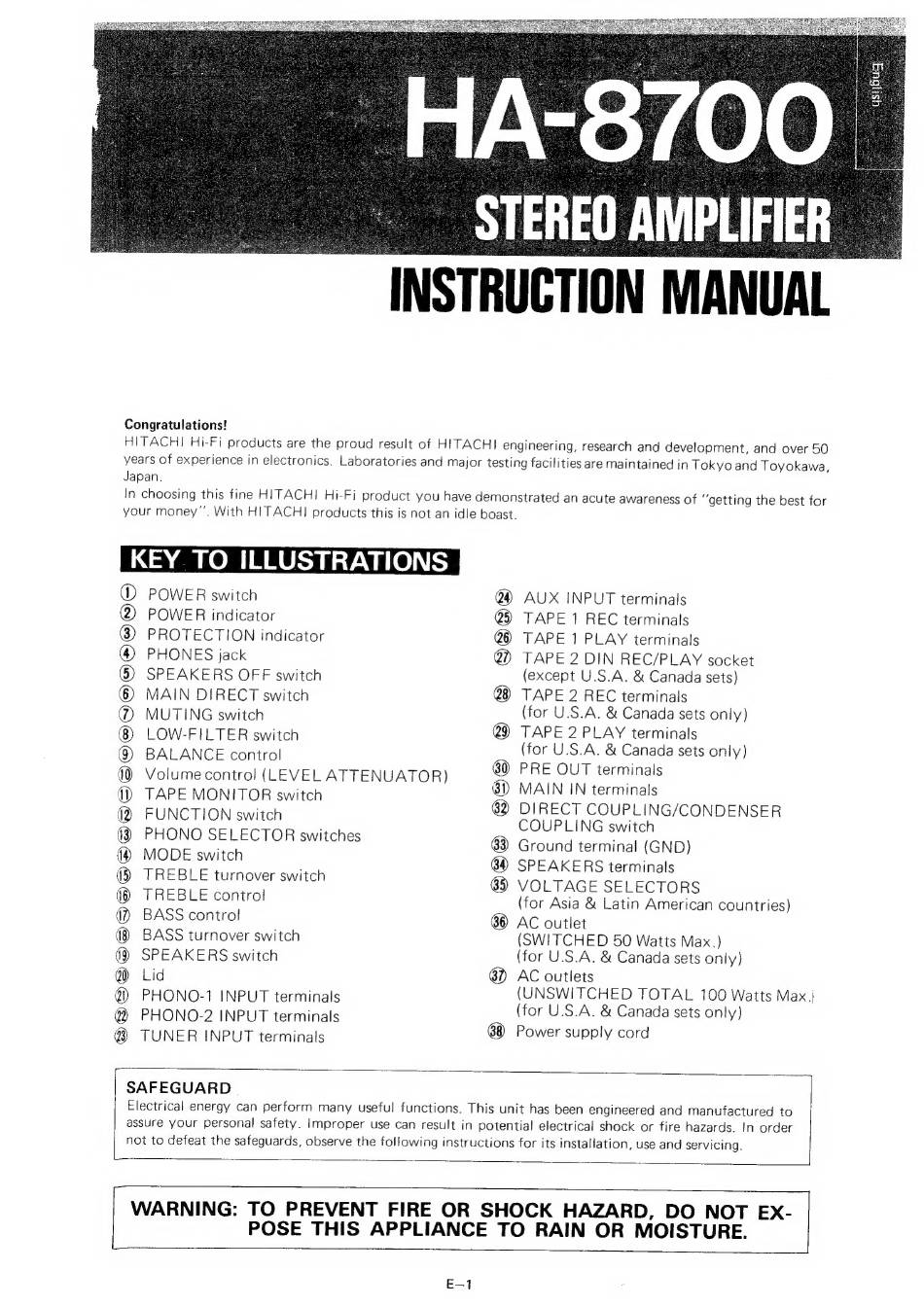

Hitachi HA-8700 Instruction Manual

Congratulations!
Japan.
@D POWER switch
@ POWER indicator
(8) PROTECTION indicator
@ PHONES jack
SPEAKERS OFF switch
MAIN DIRECT switch
MUTING switch
LOW-FILTER switch
BALANCE control
Volume control (LEVEL ATTENUATOR)
TAPE MONITOR switch
FUNCTION switch
PHONO SELECTOR switches
MODE switch
TREBLE turnover switch
TREBLE control
BASS control
BASS turnover switch
SPEAKERS switch
Lid
PHONO-1 INPUT terminals
PHONO-2 INPUT terminals
TUNER INPUT terminals
BSSOS SS S9SS2 8S S800 00@
@ ©88 888 ® ® 888e
©
8
AUX INPUT terminals
TAPE 1 REC terminals
TAPE 1 PLAY terminals
TAPE 2 DIN REC/PLAY socket
(except U.S.A. & Canada sets)
TAPE 2 REC terminals
(for U.S.A. & Canada sets only)
TAPE 2 PLAY terminals
(for U.S.A. & Canada sets only)
PRE OUT terminals
MAIN IN terminals
Ground terminal (GND)
SPEAKERS terminals
VOLTAGE SELECTORS
AC outlet
(SWITCHED 50 Watts Max.)
AC outlets
(UNSWITCHED TOTAL 100 Watts Max}
(for U.S.A. & Canada sets only)
Power supply cord
7
SAFEGUARD
