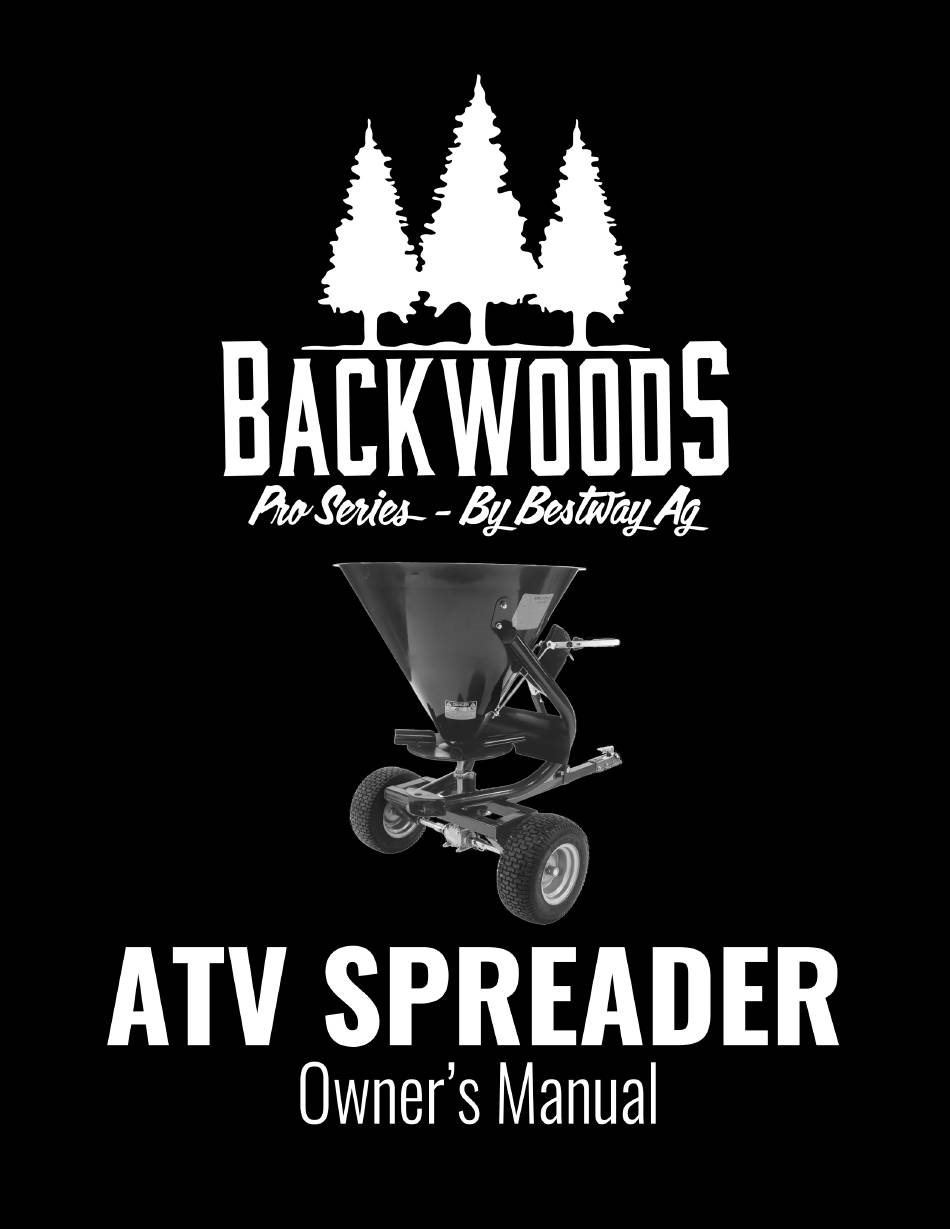

Summary of Contents for BESTWAY AG BACKWOODS Pro Series
-
Page 2: General Safety
NOTICE Backwoods and Bestway Ag are not responsible for As of publication, the content of this manual is ac- any damages to person or property should the end curate. As improvements are made to our products,... -
Page 3: California Proposition
CALIFORNIA PROPOSITION 65 OTHER SAFETY CONSIDERATIONS WARNING: CANCER AND REPRODUCTIVE HARM • While loading the hopper, there is a danger of WWW.P65.WARNINGS.CA.GOV particle inhalation as a result of fertilizer mixing. Suitable safety masks are required. IMPORTANT • Never work with the spreader if you are tired, sick, or otherwise under the influence of drugs GENERAL SAFETY GUIDELINES or alcohol. - Page 4 distribute more towards the right. RECOMMENDATIONS It is important to note that as you move the vanes • Test the pound/acre you wish to spread before from one to five, there will be an increase in overall starting to work. distribution width.
-
Page 5: Loading The Hopper
There are various methods to spread in the field. One of the recommended methods is as follows: • Position the tow-vehicle at the beginning of the field you intend to work, to a distance (D/2) that LOADING THE HOPPER is half of the working width to be used. WARNING •... -
Page 6: Common Mistakes
COMMON MISTAKES If you experience unusual vibrations, verify the con- dition of the distributor on the spreading disc, the • Incorrect spreading width. tightness of all nuts and bolts and the lubrication of the gear box. • Spreading disc not properly aligned in relation to the land. -
Page 7: Specifications
REPLACEMENT OF DISTRIBUTOR VANES If a distributor vane gets damaged or broken, it is necessary to replace them with new ones. Simply unscrew the nuts to remove the old vane, replace with a new one and reattach the nuts and bolts. STORAGE Store the spreader in a dry, sheltered place away from chemicals. - Page 8 REF. NO. DESCRIPTION NO. REQ. PART NUMBER SERVICE M10 Zinc Hex Nut HJ204N 10mm Zinc Lock Washer HJ198N 10mm Zinc Flat Washer HJ194N M10x25 Zinc Snap Head Bolt HJ133B M8x45 Zinc Hex Head Bolt HJ134B M8 Zinc Self-Locking Nut HJ201N ATVS Agitator HJ996M Metal Hopper, 480 Pounds...
- Page 9 REF. NO. DESCRIPTION NO. REQ. PART NUMBER SERVICE PTP Tire 16x6.50-8 HJ1001M M8 Grease Fitting HJ1001M M12 Zinc Self-Locking Nut HJ1002M M8 Zinc Self-Locking Nut HJ1003M PTP Axle HJ1004M 4x40 Spring Pin HJ1005M 25x44x2 Zinc Flat Washer HJ1006M M10x100 Zinc Hex Head Bolt HJ1007M ATVS Output HJ1008M...
- Page 10 NOTES:...
- Page 11 NOTES:...
