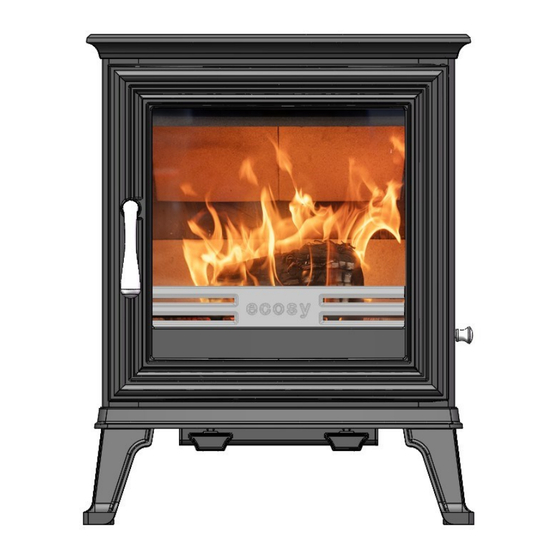

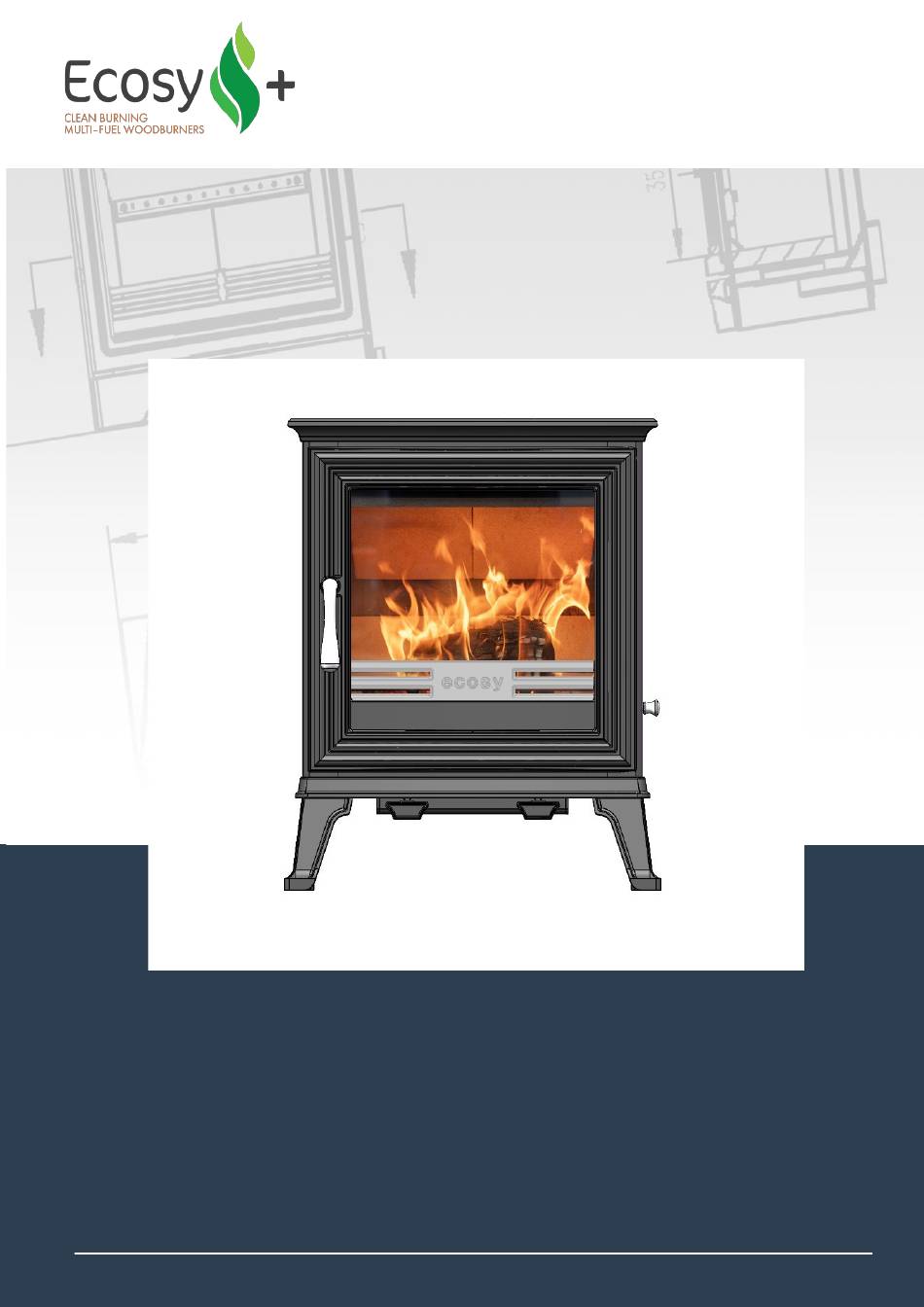

- Page 1 Version Last updated 1.2.1 28/08/2024 SNUG 10 CLASSIC TECHNICAL INFORMATION F O R T H E S N U G 1 0 C L A S S I C ADDRESS CONTACT Ecosy+ Telephone: + 44 1256 830099 Unit 24, Folly Farm, Ramsdell Email: trade@ecosystoves.co.uk...
-
Page 2: Table Of Contents
Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CONTENTS 1. WELCOME ........................................ 3 2. SAFETY ........................................3 3 TECHNICAL INFORMATION ..................................4 3.1 TECHNICAL DATA ..................................4 3.2 PRODUCT FICHE .................................... -
Page 3: Welcome
Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC WELCOME DEAR CUSTOMER, Congratulations and thank you for purchasing an Ecosy+ stove. To top it off, this stove backed up with a 7-year guarantee. -
Page 4: Technical Information
Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC TECHNICAL DATA Snug 10 Classic Efficiency (%) Wood 80 / Smokeless Coal 77.7 Nominal Space Heating Output (kW) Wood 7.1 / Smokeless Coal 7.3... -
Page 5: Item List
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC ITEM LIST Please see the below drawing, showing what is included. Check the appliance and accessories for any damage. Please contact the supplier if any of the components are missing or damaged prior to the stove being fitted. If the stove has been fitted with damaging, arranging a re- placement can become difficult. -
Page 6: Appliance Dimensions
Phone: 01256 830099 Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC APPLIANCE DIMENSIONS Snug 10 Classic HEIGHT WIDTH DEPTH Dimensions in mm ecosystoves.co.uk SNUG 10 CLASSIC + 44 1256 830099 trade@ecosystoves.co.uk... -
Page 7: Material Clearances
Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC MATERIAL CLEARANCES COMBUSTIBLE MATERIAL Dimensions in mm We suggest a minimum of 50mm to non combustible materials to allow air flow around the fire. -
Page 8: Installation Requirements
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC INSTALLATION REQUIREMENTS INSTALLATION BODY Ecosy+ stoves recommend that this stove be installed by a member of an accredited competent person’s scheme e.g. HETAS. If the installer is not a member of a competent person’s scheme, it is a legal requirement, in the UK, to notify your Local building Control Officer in ad-... -
Page 9: Air Supply
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC AIR SUPPLY Your stove will require a constant air supply and should not be used at the same time and in the same room/space as extractor fans or any device which may draw air supply away from the stove, unless the fire is connected to its direct air feed socket. -
Page 10: Carbon Monoxide (Co) Alarm
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CARBON MONOXIDE (CO) ALARM In compliance with Building Regulations, a carbon monoxide (CO) alarm must be installed in the room where the stove is located that con- forms to BS EN 50291. -
Page 11: Curing/Paint
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CURING/PAINT Note: the paint on any new stove is relatively soft. As such do not clean, wash or wipe the surface until the paint has fully cured. Never wipe the stove whilst warm. -
Page 12: Certificate Of Compliance
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CERTIFICATE OF COMPLIANCE After completion of the appliance installation please ensure the form below (specimen) is completed by the installation engineer to comply with the requirements of HETAS and building regulations. The wet and dry side must be signed off at the same time. If evidence is not shown that both the wet and dry sides were completed at the same time, the guarantee may be voided. -
Page 13: Stove Parts
Phone: 01256 830099 Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC STOVE PARTS ecosystoves.co.uk SNUG 10 CLASSIC + 44 1256 830099 trade@ecosystoves.co.uk... -
Page 14: Fire Bricks And Log Guard
Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC FIRE BRICK & GLASS The glass used in all fires is fully approved heat resistant ceramic glass. This glass will not break through heat but can easily break if struck with a log or similarly hard object. -
Page 15: Rear Flue Connection
Phone: 01256 830099 Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC REAR FLUE CONNECTION ecosystoves.co.uk SNUG 10 CLASSIC + 44 1256 830099 trade@ecosystoves.co.uk... -
Page 16: Defra Setting
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC DEFRA SETTING The Snug has been recommended as suitable for use in smoke control areas when burning seasoned wood logs. Each appliance has been factory fitted with a screw that prevents the full closure of the vent. If you are not in a smoke free zone, this can be removed. The diagram below shows how this is removed, to allow full vent closure. -
Page 17: Controlling The Stove
Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CONTROLLING THE STOVE The base control lever on the right as you look at the stove, controls the rate of primary air flowing under the fire. Having this lever pushed in reduces the amount of air and pulled out increases it. -
Page 18: Standard Drawings
Phone: 01256 830099 Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC STANDARD DRAWINGS ecosystoves.co.uk SNUG 10 CLASSIC + 44 1256 830099 trade@ecosystoves.co.uk... -
Page 19: Check Before Use
Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC CHECK BEFORE USE Once the stove has been installed and the flue connected replace all the internal components. ... -
Page 20: Guarantee
(Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC GUARANTEE The main body of your stove is guaranteed for 7 years. Installation not carried out by a registered HETAS installer will void the guarantee. The only exceptions will be if the install has been signed off by your local authority or suitably qualified Oftec installer. In addition to this the stove must be serviced annually by a suitably accredited chimney sweep or stove installer. -
Page 21: Fitting New Glass
Unit 22 (Office) and Unit 26 Email: trade@ecosystoves.co.uk (Warehouse), Folly Farm, Kingsclere Website: www.ecosystoves.co.uk Road, Ramsdell, TADLEY, RG26 5GJ SNUG 10 CLASSIC FITTING NEW GLASS Ensure the door is on a soft flat surface before removing the glass. Unscrew the glass clamps.
