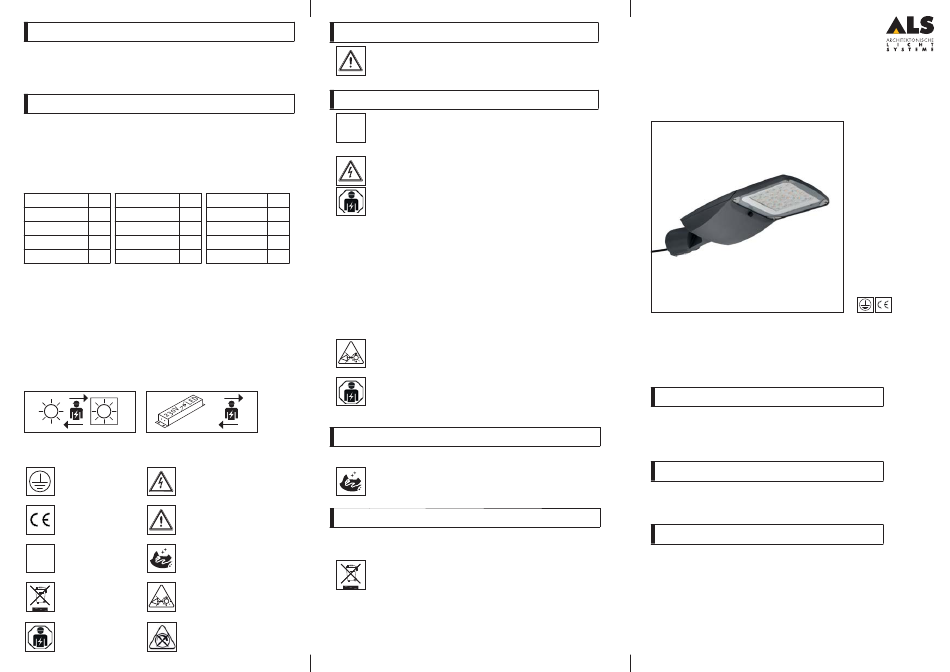

ALS TAK-18SWW6-NB2 Manual

DESCRIPTION OF PARTS
LED post-top luminaire incl. power supply unit, 1800K, pole mounting - suitab-
le for Ø 76mm poles, pivotable up to 15°, Die-cast aluminum housing, powder
coated, extra clear, tempered flat glass, CLO (constant light output), LEDIL
optics, night dimming, IP66
Color of housing: anthracite
TECHNICAL DATA
Weight: 5,3 kg
220-240V, 50/60 Hz
IK09
CCT 1800:
IP66 Cable length: 5 M
CRI : ≥ 70 Terminal: spring-loaded terminal
Protection class: I Surge protection 10kV
Dimmable: Night dimming
Wind force area - top: 0,132 m²
Dimensions: L624xW240xH108 mm
Wind force area - side: 0,020 m²
Ambient temperature: -40° bis +35°C
140° NB2 140° NB3
TAK-18SWW6-NB2 18W TAK-18SWW6-NB3 18W
TAK-36SWW6-NB2 36W TAK-54SWW6-NB3 54W
TAK-54SWW6-NB2 54W
TAK-80SWW6-NB2 80W
The product consists of two components. Luminaire with light source and
external LED Driver.
LED LED
The light source is only exchange- The LED driver is only exchangeable
able by a professional. by a professional.
Protection class I Notification of Risks
CE label Safety Instructions
The product can be Cleaning Instructions
IP66 used exteriors.
The product may not Don't look directly into
be disposed of in the the LED! The LED is that
household garbage. bright that it might
damage your eyes!
Installation only by Not dimmable
qualified and autho-
rised persons.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
SAFETY INFORMATION
• The light can be used in exteriors.
IP66
• Don't install under power.
• Follow the instruction manual for installation.
• Installation only by qualified and authorised persons.
• Do not use the product when it has been damaged (defective
covers) or there are operational faults such as flickering,
160° WB
smoking, steaming, crackling noises or the smell of smoke.
• A damaged or defective product must be changed
TAK-18SWW6-WB 18W
or repaired by the manufacturer, a service person or a
TAK-36SWW6-WB 36W
comparable qualified person.
• Installation only under observance of the valid guidelines
TAK-54SWW6-WB 54W
specific to application and country among others VDE 0.100.
TAK-80SWW6-WB 80W
• Never open one of the electrical operating agents or plug any
objects into them. Such procedures signify a danger to life
through electrical shock.
• The product may not be changed or modified.
• The warranty claim and guarantee is rendered invalid in the
event of damage to the product, which is caused by not
following the operating instructions. We are not liable for the
consequent damage. Because of specific characteristics of
LED's (life, deviation in colour etc.) we formulated special
terms for planing and installing our LED products. They
are part of these installation manual! Should they not be
available, request them please!
• Don't look directly into the LED! The LED is that bright that it
might damage your eyes!
• External terminal block not included. Installation must be
performed by a qualified person.
MAINTENANCE AND CLEANING
The light source is only exchangeable by a professional.
• Do not use solvents, such as benzene and similar agents. The
light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the product.
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household garbage when it
has reached the end of its lifecycle, but
rather take it to a disposal center. Your local officials
will provide you with information about collection
offices and their business hours.
The lamp is assembled without glue.
For disposal: remove the seal and the wires from the connectors;
unscrew the screws that secure the glass, LED modules
and driver(s); unscrew the cable entry gland.
TAK
LED street light
TAK-18SWW6-NB2 TAK-18SWW6-NB3 TAK-18SWW6-WB
TAK-36SWW6-NB2 TAK-54SWW6-NB3 TAK-36SWW6-WB
TAK-54SWW6-NB2 TAK-54SWW6-WB
TAK-80SWW6-NB2 TAK-80SWW6-WB
INTENDED USAGE
This product will only serve the purpose of illumination.
The LED luminaire can be used exteriors.
SCOPE OF DELIVERY
1 x LED Luminiare without external terminal block
1 x set of instructions for assembly, operation and safety
TECHNICAL CHANGES
Changes in the sense of technical progress can be made
without prior notice.
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: +49 (0) 75 42 93 44-0 | Fax.: +49 (0) 75 42 93 44-30
E-Mail: info@als.de | Web: www.als.de
EN
Version: 2024-03-18
