Solight PAP02 Manual

EN P A P0 2
Digital Pocket Compressor Mini
Thank you for purchasing our equipment. Please read this manual carefully and heed the safety warnings and instructions
before installing, using or repairing the equipment. This will ensure not only the protection of persons, but also the long life of
the equipment.
T EC H N IC A L P A R A M ET E R S
P o w er
B a tteries
B a ttery ch a rgin g tim e
P ressu re
A ir flo w
P A C K A G IN G C O N T E N T S
1x Electric Compressor, 1x Valve (Schrader), 1x USB-C Cable, 1x Valve Air Hose, 1x Storage Bag,
1x Needle, 1x Valve (Presta), 1x User Manual, 1x Lanyard

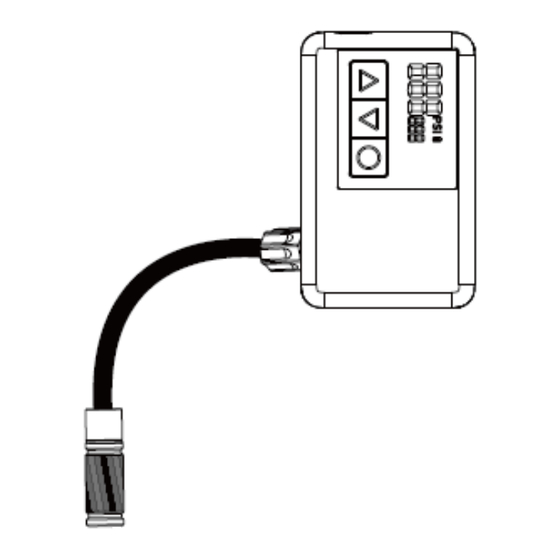

P R O D U C T D ESC R IP T IO N
(a) Display of units
(c) Current pressure
(d) Preset pressure
(e) Increase button +
(f) Reduce button -
(i) LED
(j) Air hose interface
SA FET Y N O T IC E
Do not walk away from the device during inflation.
-
Do not place the device near flammable or explosive objects.
-
Do not expose the device to moisture, water and protect it from falling.
-
Store the device at room temperature.
-
The device has a built-in lithium battery, dispose of the device at the end of its service life in a designated
-
place.
The device is not a toy, not suitable for use by children.
-
H IG H T EM P ER A T U R E W A R N IN G FO R T H E D EV IC E
Use extra caution when unscrewing the valve as the parts of the device shown in the figure below become hot
during use. Do not touch the air hose!
We recommend taking a 10-minute break before using the device again.
High temperature!
5V ⎓ 1.5A
500mAh Li-ion battery (7.4V / 3.7Wh)
about 1 hour
120 psi
14 l/min
(b) Battery indicator
(g) On/Off button
(Start/Stop)
(k) USB-C input
(h) Mounting hole
