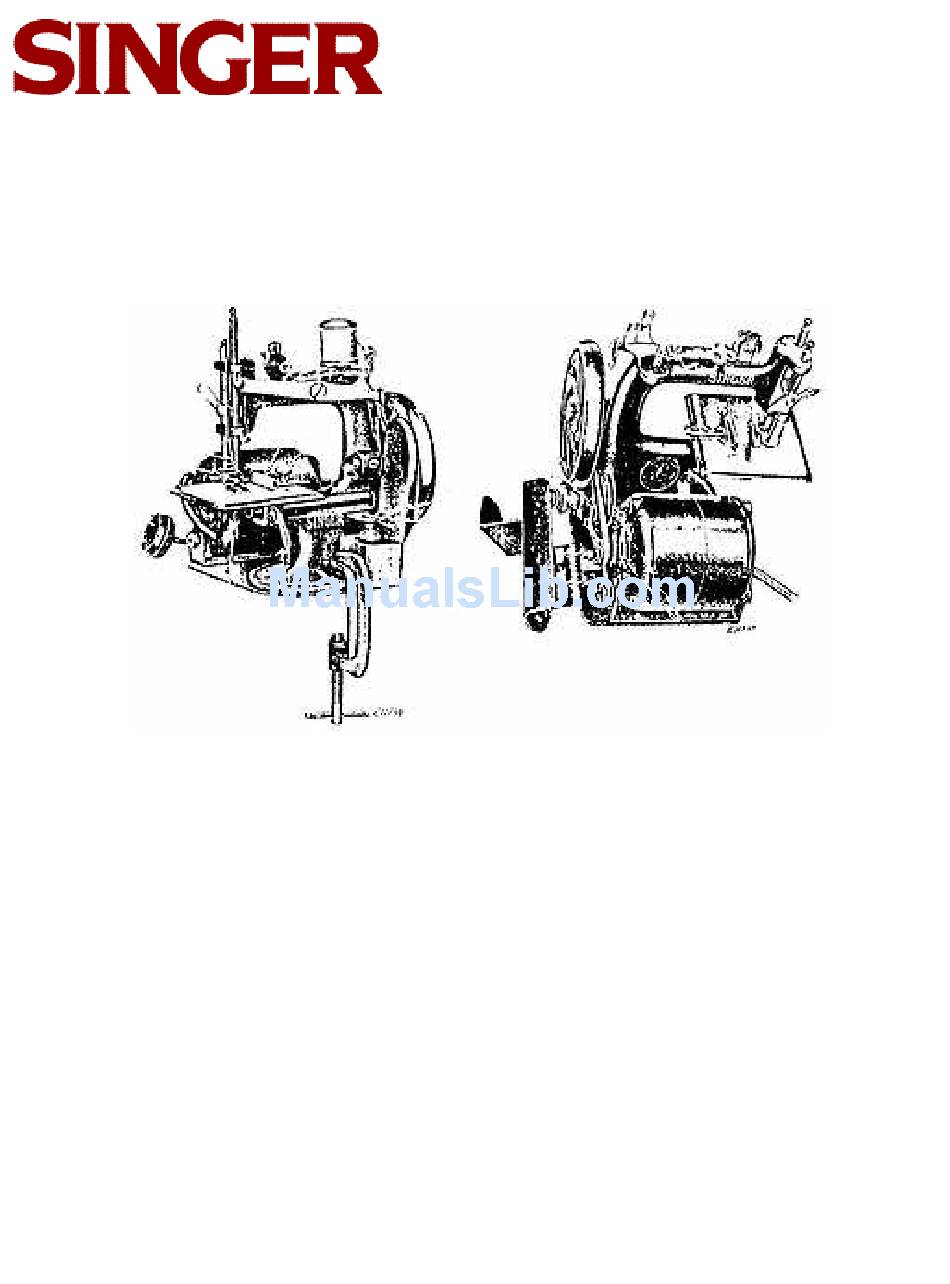

Page 1: Instruction Manual
18974 (736) Singer No. 20-2 SINGER No. 20-2 ELECTRIC SEWING MACHINE INSTRUCTION MANUAL Table of Contents | Next Page... - Page 2 To Fasten Off the Stitching in the Work To Change the Length of Stitch To Regulate the Tension on the Thread THE Singer Electric No. 20-2 machine is a To Use the Cloth Guide practical, convenient sewing machine made To Oil the Machine especially for children.
- Page 3 18974 (736) Singer No. 20-2 Main Parts A. STITCH REGULATOR B. LOOPER C. MOTOR PLUG D. CLOTH PLATE E. PRESSER FOOT F. NEEDLE G. NEEDLE SET SCREW H. CLOTH GUIDE J. CLOTH GUIDE SCREW K. PRESSER BAR LIFTER I. PRESSER BAR M.
- Page 4 18974 (736) Singer No. 20-2 To Start the Motor Place the plug on the rubber-covered cord into a wall outlet or light socket. (Be sure that your currently is 110 volt, 60 cycle). Press down on the switch (R, Fig. 2) and the lever (S) at the same time;...
- Page 5 Singer No. 20-2 Needles and Thread Needles for the Machine No. 20-2 are of Class and Variety 21x1 and four of these needles of size 14 are furnished with each machine. Finer or coarser needles, as shown below, can be purchased from any Singer shop or Singer salesman.
- Page 6 18974 (736) Singer No. 20-2 To Insert a Needle To Thread the Needle (SEE FIG. 4) Turn the hand wheel (Q, Fig. 2) over from Turn the hand wheel over away from you until you until the needle bar (M, Fig. 2) moves up the needle moves up to its highest point.
- Page 7 18974 (736) Singer No. 20-2 To Remove the Work Sew two stitches past the end of the seam and stop the machine with the needle bar at its highest point, then with the left hand draw a finger length of thread to the left through the hole near the upper end of the needle bar as shown in Fig.
- Page 8 18974 (736) Singer No. 20-2 To Fasten Off the Stitching in the Work To Regulate the Tension on the Thread When it is necessary to fasten off the last The tension on the thread is automatic and stitch in the work, stop the machine with the seldom requires changing.
- Page 9 If desired, the cloth guide can be for the use of this machine or any other removed from the machine. Singer Machine, will be cheerfully given at your local Singer Shop. To Oil the Machine The machine should be oiled occasionally...
