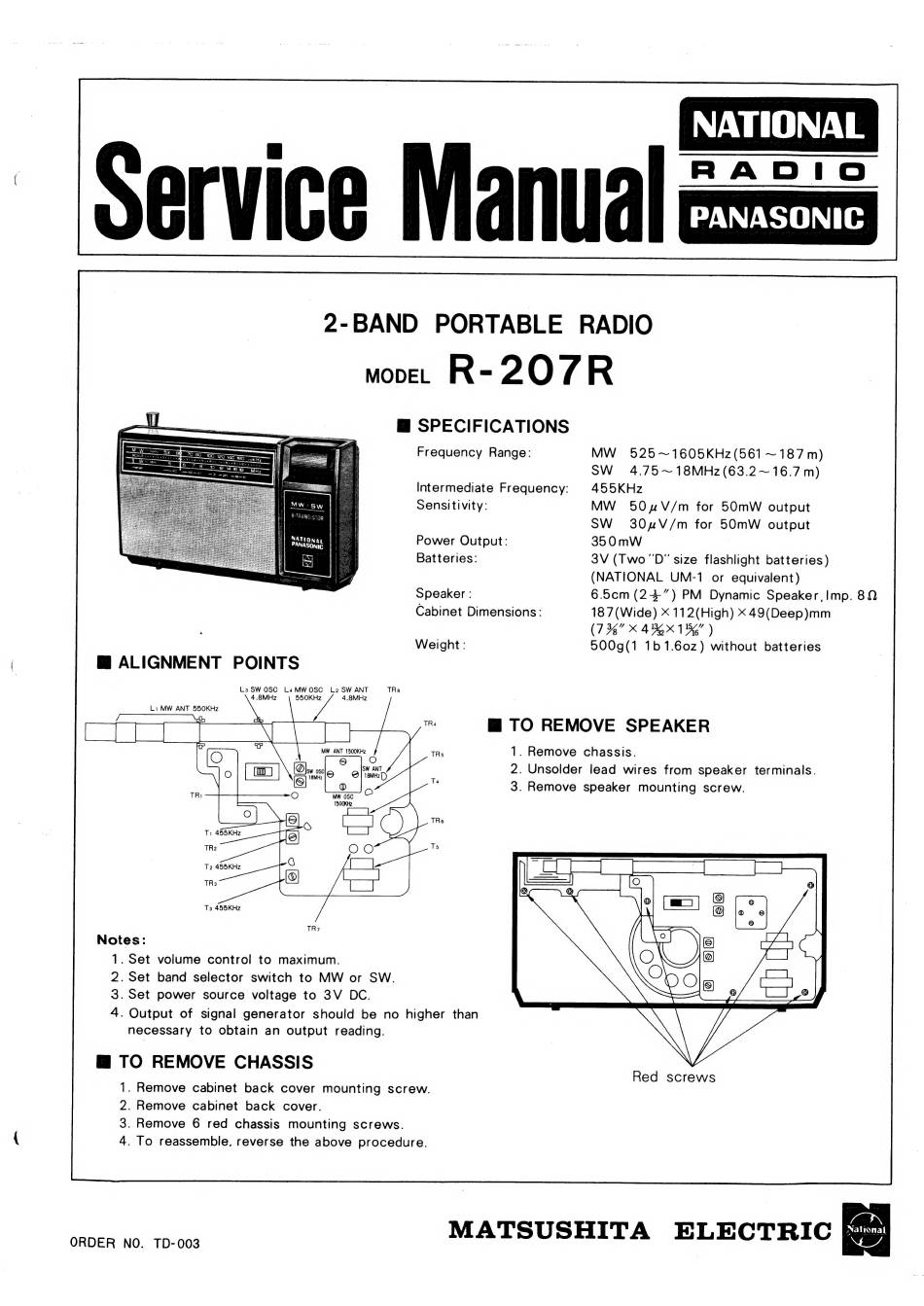

PANASONIC
2-BAND PORTABLE RADIO
moet R-207R
@ SPECIFICATIONS
Frequency
Range:
Intermediate Frequency:
Sensitivity:
Power Output:
Batteries:
Speaker :
Cabinet Dimensions:
Weight:
M@ ALIGNMENT
POINTS
L3 SW OSC
LaMWOSC
L2 SW ANT
TRs
wae
4.8MHz
Ts 455KHz
TR7
Notes:
1. Set volume control to maximum.
2. Set band selector switch to MW or SW.
3. Set power
source voltage to 3V DC.
4. Output of signal generator
should
be no higher than
necessary
to obtain an output
reading.
@ TO REMOVE CHASSIS
1. Remove
cabinet back cover
mounting screw.
2. Remove
cabinet
back
cover.
3. Remove
6 red chassis
mounting
screws.
4. To reassemble, reverse the above procedure.
ORDER
NO. TD-003
MATSUSHITA
ELECTRIC
MW
525~1605KHz(561
~187 m)
SW
4.75~18MHz(63.2~16.7 m)
455KHz
MW
50n4V/m
for 50mW
output
SW
304V/m
for 50mW
output
350 mW
3V (Two 'D" size flashlight batteries)
(NATIONAL
UM-1
or equivalent)
6.5cm (24") PM
Dynamic Speaker,!Imp. 8
187(Wide) X 112(High)
x 49(Deep)mm
(7 36" X 436K 156" )
500g(1
1b1.60z) without batteries
"
M@ TO REMOVE
SPEAKER
Red
screws
