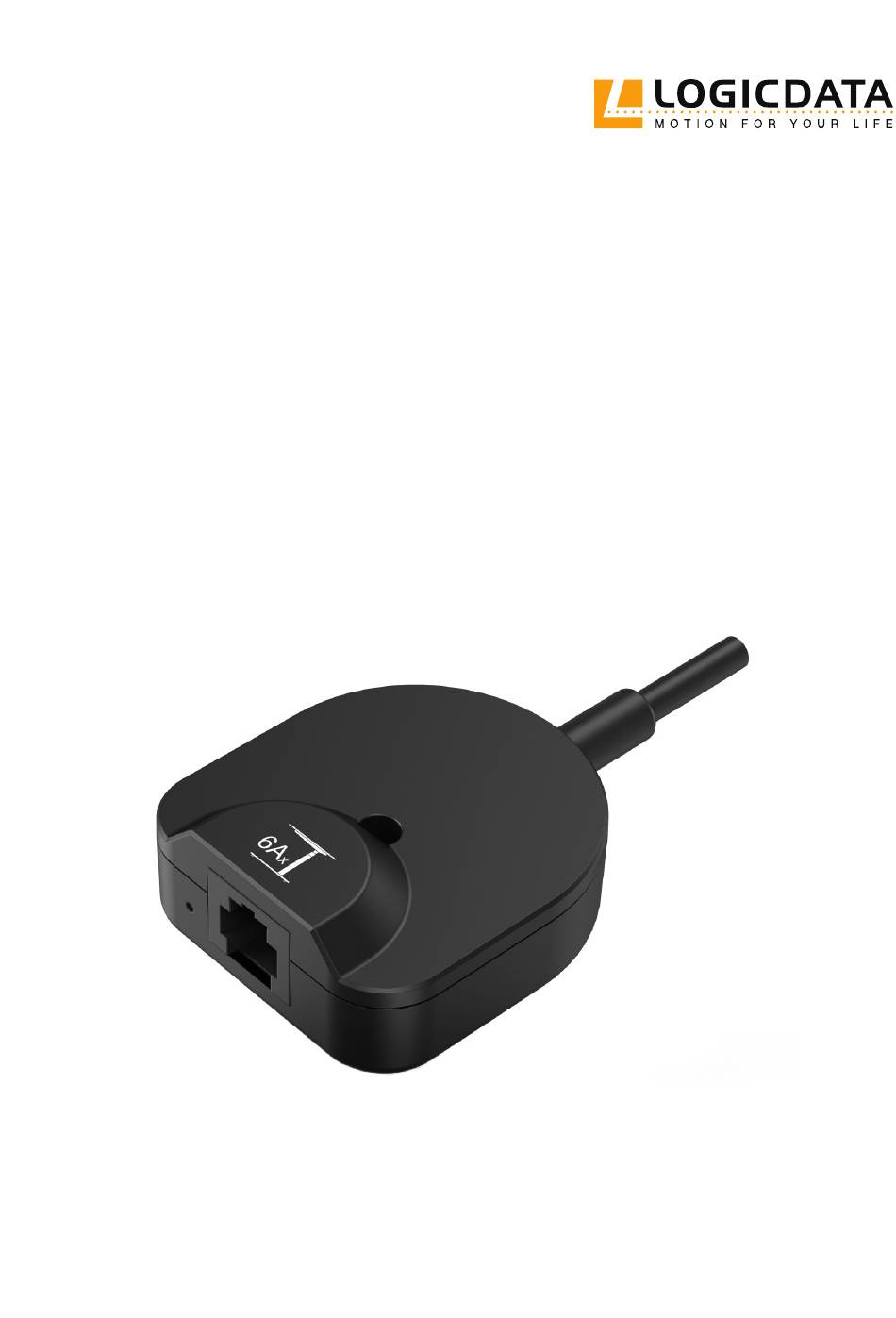

- Page 1 DOCUMENT VERSION 1.0 | AUGUST 2023 LOGICisp G Manual...
- Page 2 LOGICISP G OPERATING MANUAL // PAGE 2 LOGICisp G - Operating Manual Document Version 1.0 / August 2023 This document was originally published in English LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Telefon: +43 (0) 3462 51 98 0...
- Page 3 LOGICISP G OPERATING MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks...
- Page 4 LOGICISP G OPERATING MANUAL // PAGE 4 Additional Information Software-Dependent Functions Disassembly Maintenance 8.3.1 Cleaning 8.3.2 Replacing a Collision Sensor Troubleshooting Disposal...
- Page 5 Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally.
- Page 6 2.3 INTENDED USE LOGICisp G is a Gyro Collision Sensor for electrically Height-Adjustable Tables. It is installed by Resellers into Height-Adjustable Table systems. It is used to recognize collisions between the Table System and other objects.
- Page 7 2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use • Disregard of the documentation •...
- Page 8 Residual risks are the risks that remain after all relevant safety standards have been complied with. Residual risks associated with the installation of LOGICisp G are listed here and throughout this Operating Manual. See also Chapter 1.1 Other Applicable Documents on page 5. The symbols and signal words used in this Operating Manual are listed in Chapter 2.5 Explanation of Symbols and Signal Words on page 7.
- Page 9 LOGICISP G OPERATING MANUAL // PAGE 9 2.8 SKILLED PERSONS LOGICisp G Collision Sensors may only be installed by Skilled Persons. A Skilled Person is defined as someone who: • Has read and understood all documentation relevant to the Collision Sensor 2.9 NOTES FOR RESELLERS...
- Page 10 LOGICISP G OPERATING MANUAL // PAGE 10 3 SCOPE OF DELIVERY The standard scope of delivery for the LOGCIisp G consists of the Collision Sensor and its pre-attached cable. All other components necessary for installing the Collision Sensor must be supplied separately by the reseller.
- Page 11 LOGICISP G OPERATING MANUAL // PAGE 11 5 PRODUCT Fig.1 shows a standard model of the LOGICisp G Collision Sensor. The exact variant of the LOGICisp G is denoted by the product‘s order code. Consult the accompanying data sheet to ensure that you have received the correct variant.
- Page 12 LOGICISP G OPERATING MANUAL // PAGE 12 Collision Sensor LOGICisp G Master Cable Connector (for connecting to Control Box) LOGICisp G Slave Cable Connector (for connecting to Master Collision Sensor RJ10 socket) RJ10 Connector (functional only on LOGICisp G Master product) M ast er Sl ave Fig.
- Page 13 CAUTION Risk of death or serious injury through electric shocks LOGICisp G Collision Sensors are electrical devices. Basic safety precautions must be taken at all times. Failure to observe electrical safety precautions may lead to death or serious injury through electric shocks.
- Page 14 6.3 NOTES FOR ASSEMBLY The LOGICisp G is assembled directly on to the bottom of the table top. It shall be placed near the middle of the table. The cable shall be fixed with cable holder so that it isn‘t hanging in the air, this could cause miss...
- Page 15 LOGICISP G OPERATING MANUAL // PAGE 15 Fig. 3: Mounting the LOGICisp G to a 2-leg table system Fig. 4: Mounting the LOGICisp G to a 3-leg table system...
- Page 16 6.5.1 CONNECTING TO A CONTROL BOX NOTICE The LOGICisp G shall be placed in the middle of the table as shown in Fig. 3 and 4. DANGER The female 8-PIN microfit connector sockets on the Control Box may only be used to accommodate LOGICDATA approved sensor units.
- Page 17 A full list of Software-Dependent Functions can be found in the Manual of the installed Control Box. 8.2 DISASSEMBLY To disassemble the LOGICisp G, disconnect the Control Box from the power source. Then, follow the assembly instructions in reverse order.
- Page 18 LOGICISP G OPERATING MANUAL // PAGE 18 8.3.1 CLEANING 1. Wait 30 seconds for residual voltage to dissipate. 2. Wipe the Collision Sensor with a dry soft cloth. Never immerse the Collision Sensor in liquid. 3. Wait for the Collision Sensor to dry completely.
