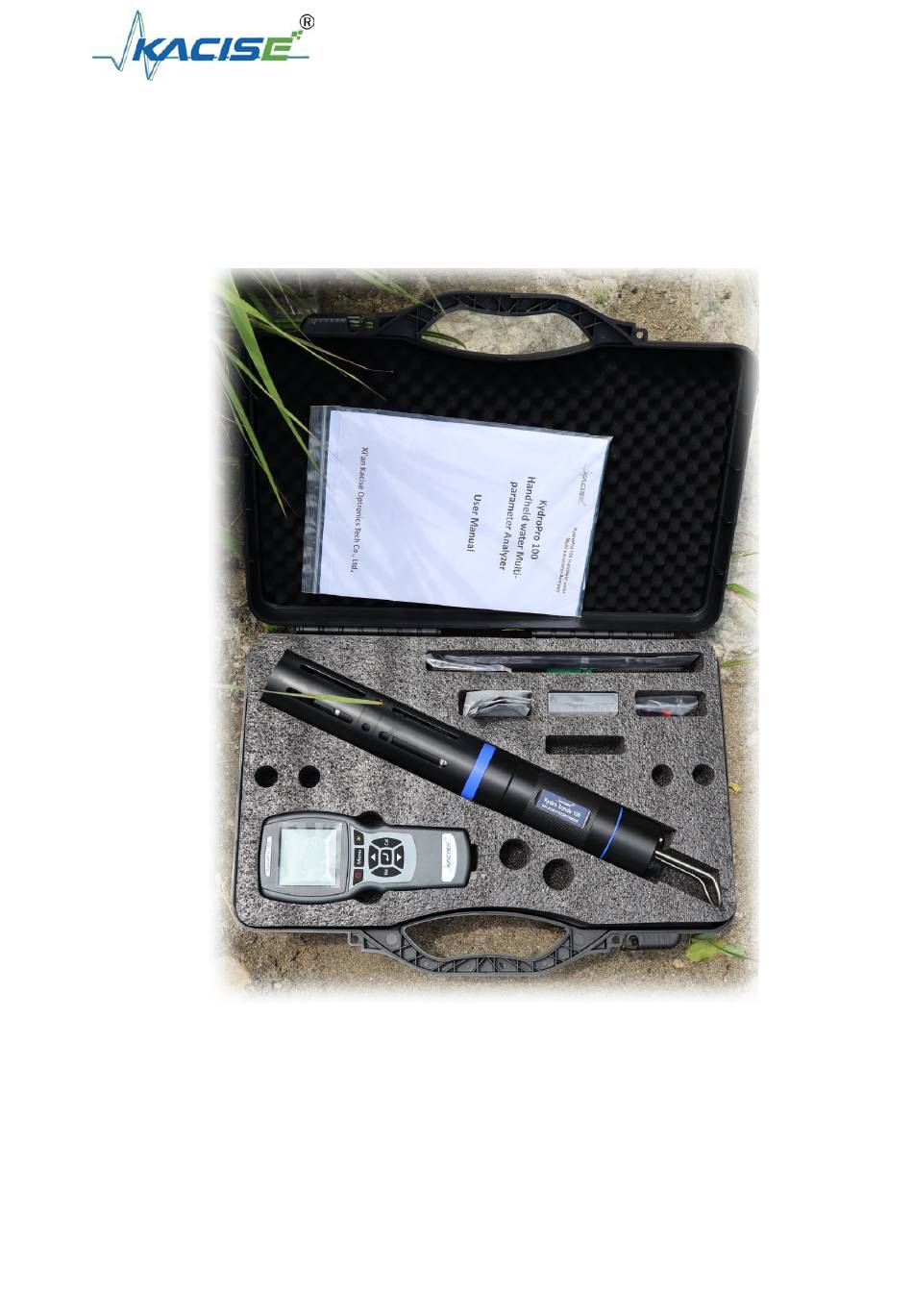

- Page 1 KydroPro 100 Handheld multi parameter water quality analyzer KydroPro 100 Handheld multi- parameter water quality analyzer user manual...
-
Page 2: Table Of Contents
3.3.1 DO Calibration ..................... 17 One-Point calibration .................... 17 Two-points calibration................... 18 Sensor Cap ......................19 3.3.2 Turbidity Calibration ..................19 Zero-point Calibration ................... 20 One-Point calibration .................... 20 Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... - Page 3 4.2 DO maintenance ....................25 4.3 Turbidity maintenance ..................26 4.4 Conductivity/Salinity maintenance ..............27 4.5 pH maintenance ....................27 5 Common Errors and Trouble Shooting ..............28 Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd...
-
Page 4: Summaries
1. Summaries Dear customer,Thank you for purchasing our Kydro sonde Handheld Multiparameter Sensor and KydroPro 100 Portable water quality meter. Reading the entire manual before use is highly recommended for operation and maintenance the instrument and out of unnecessary trouble. -
Page 5: Specifications
0- 200%：±1% Sensor Resolution 0.01mg/L Calibration method One or Two point Range 0.1-1000NTU Accuracy ±5% or ±0.3NTU Turbidity Sensor Resolution 0.1 NTU Calibration method Zero, One or Two point Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... - Page 6 Other specifications Communication RS-485, MODBUS protocol Power Requirements DC 5~12V，current<50mA KydroPro Instrument Specifications Size 220 x 96 x 44mm Weight 460g Power Two 18650 rechargeable batteries Storage temperature -40~85℃ Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd...
- Page 7 Display 54.38 x 54.38LCD back illuminated Data storage Support Pressure compensation Built-in，auto compensation in 50~115kPa IP rating IP67 Regular Shutoff Support Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd...
-
Page 8: Setting-Up
Unscrew the screws on the battery compartment and open it. Note: The screw can't be taken off. That means the battery compartment cannot be opened until the screw Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 9: Kydropro Sensor Part
The sensor is designed to operate with two D-type batteries. Please follow the below steps. 1．Remove the tail cover by unscrewing (counter-clockwise) with hand. Then pull out the tail plug. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 10: Installing
Then insert gently and turn clockwise until the “click” sound is heard. When remove the sensor, push the sensor cable connector in and turn out anticlockwise. Installation： Removal： Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 11: Kydropro Sensor Installation
1 Sensor 2 Port plug 3 Bulkhead 4 Sensor retaining nut 5 Sensor removal tool 6 Retaining ring 7 Fixing screw Removal： Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 12: Sensor Guard Installation And Connect The Cable To Kydropro
3. The sensor cable must insert gently and align with the connector at the top of the sensor. Then finger-tighten the connector clockwise. Sensor Guard Bulkhead threads Bulkhead Connector Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 13: Operation
4. Operation Press key to turn the KydroPro 100 on. When there is no sensor connected, the measurement interface will display “No Signal!”. If Kydro Sonde 100 is connected, the display will show up to 5 parameters as shown in the figure below. -
Page 14: Measurement Interface
“ ▲ ▼ ” key to System highlight the selection and press Calibration the “↙” button. To exit a menu or Data Log menu item, press the ESC key. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 15: Date/Time
Meter Info. To switch to a menu item, use the “ ▲ ▼ ” keys to Salinity select an option, and the “↙”key Probe Info to accept. Meter Info Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 16: Auto Power
“↙” key to accept desired salinity. The default value is 0 ppt. Generally, the fresh water is 0-0.5ppt, and the sea water is 35ppt. If Salinity sensor exits, the setup will be failed. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 17: Probe Info
Solution”. Put the DO sensor into the standard solution you choose. The measured value in % unit will display on the bottom of screen. Wait for few minutes to stabilize the data, as shown in the figure. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 18: Two-Points Calibration
The prompt "success" or "fail" indicates calibration result. We strongly recommend to use 100%SAT DO as first standard value and 0%SAT DO as second standard value. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 19: Sensor Cap
Select Save and press the “↙” key to accept all new coefficients. 4.4.2. Turbidity Calibration The instrument supports zero-point, single-point and two-points user calibration for Turbidity sensor. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 20: Zero-Point Calibration
Follow the instructions: “STD Value”->“In STD Solution”->“Confirm” to perform first calibration. Then press “↙” key under “Click Enter” to start second calibration. The same as DO, see 3.3.1. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 21: Conductivity Calibration
In pH 6.86 Waiting… start second calibration. The same as DO, see Measured 3.3.1. 10 21 mV value 4.4.4. pH Calibration Standard three point calibration pH4.01, pH6.86, and pH9.18 is Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 22: Three-Points Calibration
Store 4.5.1. Data The KydroPro 100 analyzer has 4096 measurements that can be logged to memory and can be programmed to store measurements in two logging formats. When set to Data Log/Data Store/Store 1 Times, the user samples start to be logged a time. -
Page 23: Data View
USB cable to the KydroPro and to a computer USB port. Then the COM PORT can identify the port. Select the download data path and click Load. The file format is. CSV. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... - Page 24 Note The software cannot recognize the port only when the instrument in shut off state. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd...
-
Page 25: Maintenance
Carefully remove the sensor cap Use clean water to wash the sensor cap internal surface iii. You can use gentle home dish cleaner if necessary Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 26: Turbidity Maintenance
Regular 1 or 2 point calibration Maintenance Schedule: Clean the sensor case：The same as DO. Outer surface: wash with tap water, for some stubborn dirt, can use the traditional Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 27: Conductivity/Salinity Maintenance
Important: Probe contains sensitive optical components and electronic components. Ensure that the probe stays away from potential mechanical impact. Any damage caused by misuse is not coved by warranty. Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd... -
Page 28: Common Errors And Trouble Shooting
A “ovf” flash in the First reset user calibration. If measurement interface not work, please contact your Other sensor, bad data supplier or the authorized distributor or your supplier Tel: +86 18066719759 website:www.kacise.com Email: support@kacise.com Xi'an Kacise Optronics Tech Co., Ltd...
