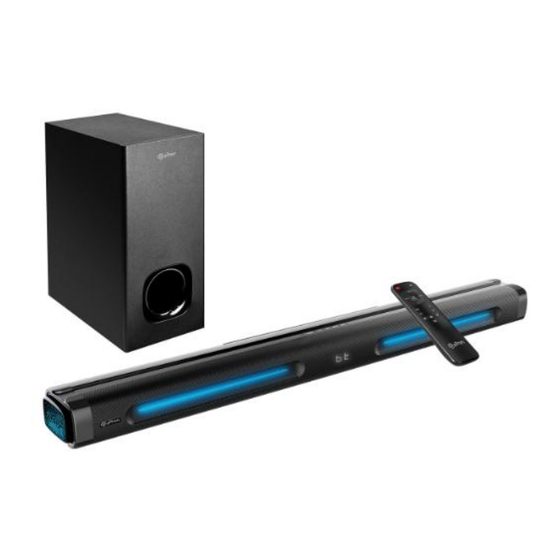

pTron Jazz Pro x1 User Manual

2.1 channel soundbar
Hide thumbs

Advertisement

Table of Contents

Jazz Pro x1 2.1 Channel Soundbar
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazz Pro x1 and is the answer not in the manual?

Questions and answers

Related Manuals for pTron Jazz Pro x1

Summary of Contents for pTron Jazz Pro x1

  • Page 1 Jazz Pro x1 2.1 Channel Soundbar User Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions ！ WARNING: To reduce the risk of electric shock, do not dismantle the product and do not expose the product to rain or moisture.No user-serviceable parts inside. Refer servicing to qualified personnel only. Read the user manual before use. Keep all instructions for future reference Always operate the product from a power source of the same voltage, frequency and rating as indicated on the rating label.

  • Page 3: Remote Control Description

    Remote Control Description Using the remote control: 1.POWER Press this button to power on or power off. VOL+ Press VOL+ to up the volume of the soundbar BASS+ Press this button to increase the bass effect RESET Short press this button to pause/play audio, long press for reset function TV ARC...

  • Page 4: Front/Back Panels

    Front/Back panels FRONT 1.POWER/MODE Long press this button to power on or power off Short press this button to change mode when playing music, press this button to pause playing, and repress to play continue Press to up the volume of the soundbar Press to down the volume of the soundbar..

  • Page 5: Connection Schematic

    Connection schematic Connecting the soundbar to the TV Connect the subwoofer to the SW-OUT port of the soundbar. 2. Connect the soundbar to your TV using the HDMI ARC (Audio Return Channel), optical audio cable, or Bluetooth, depending on the model and your TV's capabilities. Note: Alternatively,you can use the AUX cable (included) to connect the 'AUX-IN' port on the soundbar to the Auxiliary out or the Headphone jack on the TV.

  • Page 6: Soundbar Rear Panel

    2. Other audio sources:Connect with Bluetooth/AUX-IN. OPTICAL VIDEO Optical cable(not included) SOUNDBAR REAR PANEL SW-OUT HD/ARC OPTICAL ~ ACIN Bluetooth Jazz Pro x1 Bluetooth FRONT PANEL...
  • Page 7 1.Press the 'MODE’ button repeatedly until Blue-Connect Mode is selected. Display shows 'BL' 2.On your Bluetooth-enabled device chose ‘pTron BT Speaker’ the name of the soundbar. The display blinks indicating that it is waiting for pairing, once paring is successful, the indicator remains on, display shows 'BL’ and stop flashing.

  • Page 8: Recommended Placement

    Please read through the complete warranty details at https://ptron.in/pages/repair-  service-warranty Customer Care Details: Mail: support@ptron.in Tel: 040 - 67138888 Service Centers List: https://ptron.in/pages/ptron-service-centers Disclaimer: The color and specifications shown in or mentioned in the user manual may differ from the actual product. Images shown are for representation purposes only.
