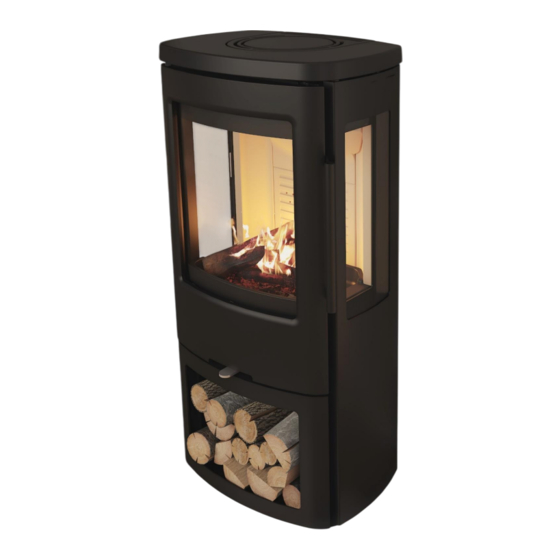

- Page 1 TT44 Series Installation- and user manual 1. For at få let adgang til isoleringspladerne fjernes kævlefanget Nr. 1 TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 2 Congratulations on your new wood-burning stove We thank you for choosing a TermaTech wood-burning stove and wish you many cozy and warm moments ahead. Your new wood-burning stove from TermaTech is a standard convection stove that can be covered with storage stones. Before installing and using the stove, you should read this assembly, installation, and user manual.
- Page 3 External combustion air is established by pulling combustion air from outside through a duct directly to the stove's external combustion air inlet. External combustion air kits are available for Termatech's wood-burning stoves. Consult your dealer for advice. Alternatively, additional air can be introduced into the room through an air vent in the external wall or windows.
- Page 4 Danish Technological Institute, Aarhus (TI). The fuel used for testing is birch wood. To protect the environment and ensure you get the best performance from your new Termatech stove, it's important to follow these instructions. Push the air control handle all the way to the right. On some models, the air control handle might need a slight downward push to move it all the way to the right.
- Page 5 Figure.5.4. Figure.5.3. When the fire has burned down to embers, approximately after 47 minutes (See Figure 6.1), you can reload and start a new TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 6 Ash can be disposed of with regular household waste. To ensure the ash doesn't ignite anything in the trash bin, it should be allowed to cool for 2 days before disposal. The stove is difficult to control and burns aggressively: TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP...
- Page 7 Turn off the kitchen hood extractor fan, even if it's active in another room. If turning off the extractor fan is not possible, ensure that the stove gets fresh air from outside (consider opening a window). White Glass (if the glass appears slightly cloudy and white): TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP...
- Page 8 If you replace the glass in your wood stove, do not dispose of it with regular glass waste, as it is ceramic glass. Spare Parts For the sake of fit and other considerations, we recommend using only original spare parts in your TermaTech wood stove. Settings, Adjustments, etc.: Refer to section 8.
- Page 9 In other cases, the product will be collected from the customer's address for repair at a workshop selected by TermaTech A/S. The repair period may take up to 8 weeks from collection to delivery of the repaired product.
- Page 10 Furniture Clearance: 1000mm Figure 1 & 2: The distance from the top of the stove to the ceiling, minimum: 750mm Figure 1 Figure 2 TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 11 Furniture Clearance: 1000mm Figure 1 & 2: The distance from the top of the stove to the ceiling, minimum: 750mm Figure 1 Figure 2 TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 12 No. 5 and No. 6. Installation of Vermiculite: This is done in the reverse order. Start with Nr.6, then Nr.5, and etc… TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 13 De activate the Bauart /Auto closing function: Demount the spring No.1 from bracket No. 2. After that demount the pass- screw No. 3 The Bauart /Auto closing function is not and requirements in Denmark, Sweden and Norway. TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP...
- Page 14 Note: We recommend a draft of 4 to 6 kg. The door may not hit the magnet. Distance between door and magnet should be a minimum of 1mm. TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP...
- Page 15 Smoke control area – Damper Control unit installation Install a pinion screw here. See the white arrow. This means that air can´t be closed off completely. TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 16 Flue gas mass flow: 4,2 g/s Efficiency 81% Annual Efficiency: 71% Power: 4,8KW CO: 0,098% or 1225 mg/nm3 v/13% O2 Chimney draft 12Pa TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 17 Better regulation Act (Northern Ireland) 2016. In Wales appliances are exempted by regulations made by Welsh Ministers. The TermaTech TT44 series have been recommended as suitable for use in smoke control areas when burning wood logs and when fitted with a smoke control kit (damper control unit) to prevent closure of the primary and secondary air controls beyond the 30% open position.
- Page 18 This is a precaution to ensure that any “softer” deposits left from the open fire usage have not been loosened by the higher flue temperatures generated by the closed stove. In situations where it is not possible to sweep TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no.
- Page 19 HETAS approval may be limited to specific fuel types as detailed in the main instruction manuals. Approval does not cover the use of other fuels either alone or mixed with the recommended fuel, nor does it cover instructions for the use of other fuels. TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no.
- Page 20 All measurements are WITHOUT adjustable feet / Toutes les dimensions sont données SANS pieds réglables /Alle Maße sind OHNE Stellfüße. Type TT44, TT44G, TT44S: Weight / Poids / Gewicht: 112,5kg. 112,5 kg. 139 kg. TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
- Page 21 UK Declaration of Conformity (DoC) TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 17-10-2024 LP Item no. 99-291 / 101-212...
