Summary of Contents for AXITEC AXIhycon 29.9 50 H

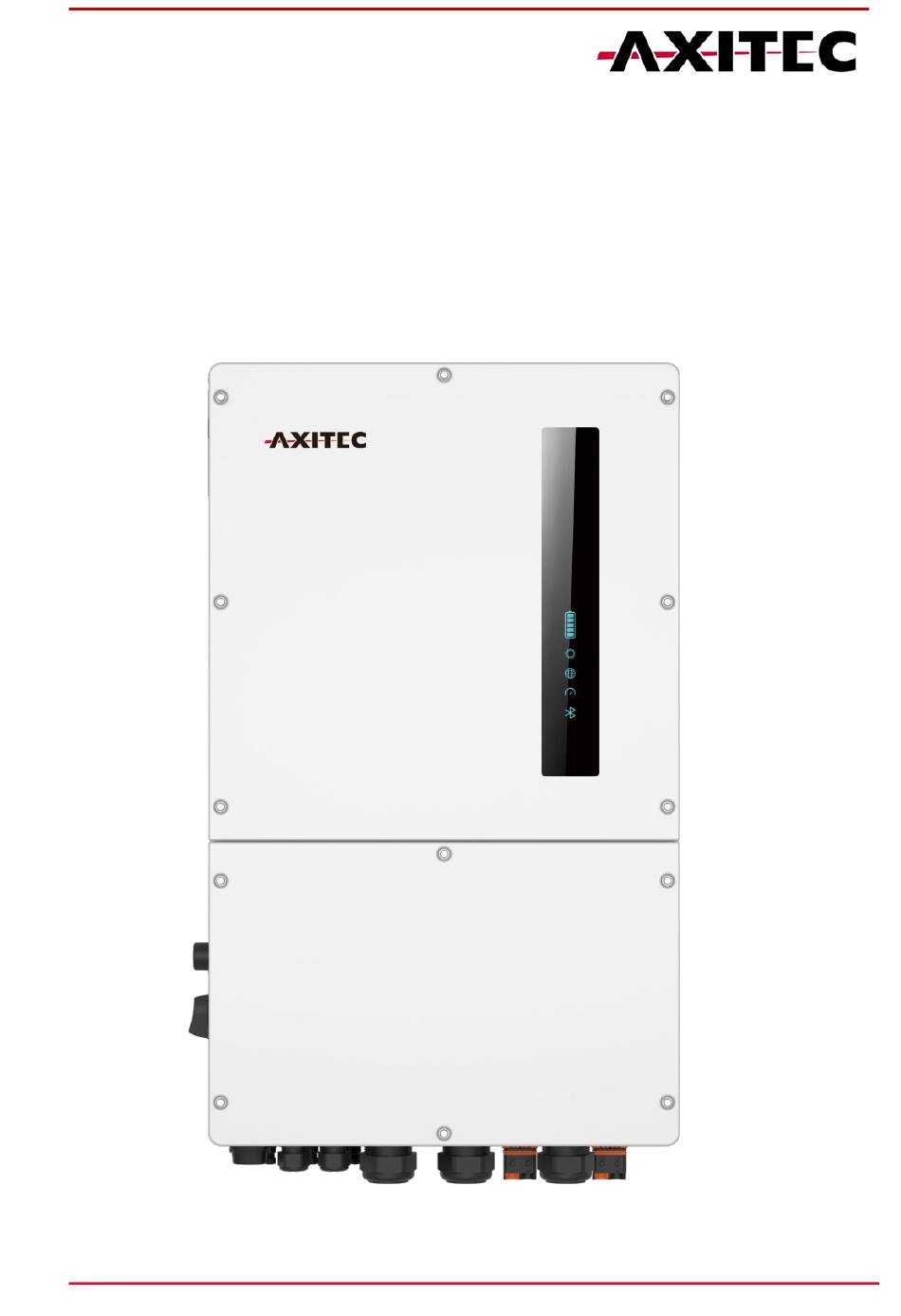

- Page 1 Quick Start Guide AXIhycon 29.9 – 50 H AXIhycon-EN241203 AXITEC Energy GmbH & Co. KG, Otto-Lilienthal-Str. 5, 71034 Böblingen, Germany, www.axitecsolar.com...
- Page 2 WARNING: Please be aware that this is a quick guide. It is absolutely essential to carefully read and follow the complete instructions to ensure proper setup. PREPARATION FOR STARTUP Ensure accessibility to all devices. Check the installation and ventilation of the inverter. Ensure the top of the inverter is free of obstacles.
- Page 3 Name Description This is the DC disconnect switch for the PV. DC-Switch Axitec data logger gets connected here-only USB version of the loggers will work RS485 and CAN communication cables and parallel cables should go through these COM1 COM2 RS485 and CAN communication cables and parallel cables should go through these...
- Page 4 CONNECTING THE SMART METER CHECK WIRING Make sure phase 1 is connected to phase 1 input terminal L1 (4). CT1 must also be connected to phase 1 and connected to the S2 S1 (19 and 20) of the meter. When power is imported into the house (turn off the inverter), the smart meter shows negative power for all phases.
- Page 5 CONNECTION OF CT CLAMPS WITHOUT SMART-METER [OPTIONAL] Instead of the supplied Smart Meter, the CT clamps can also be connected directly to the inverter in order to detect the direction of the grid current and transmit the operating status of the system to the hybrid inverter. The maximum distance between CT clamps and Smart Meter / inverter is 10m.
- Page 6 ATTACH CT-CLAMPS CORRECTLY Please follow the steps below to attach the CT clamps to the correct phase. - Check in the app - Attach all three CT clamps to one of the three phases. - Read the active power in the “Mains” area of the CT clamps in the app. - The phase with the highest negative active power is correctly wired.
- Page 7 Use the supplied CAN cable to connect one end to the CAN port of the battery and the other end to the BMS port of the inverter. NOTE: The pin configuration of the BMS and CAN ports ad- heres to the EIA/TIA 568B standard. CAN-H is on pin 4 (blue) CAN-L CAN-L is on pin 5 (blue/white).
- Page 8 AXIhycon-EN241203...
- Page 9 INTERNET CONNECTION INVERTER + BATTERY (RECOMMENDED) LAN-CONNECTION INVERTER Step 1: Turn on the external AC switch. Step 2: Connect the data logger via the COM port. Step 3: Connect the data logger to the router using an LAN cable. All LEDs on the data logger should be lit steadily. CAUTION: No other device should be connected to the inverter via USB except for the data logger, as this may cause damage to the inverter.
- Page 10 CREATING PLANT AND ADDING DATA LOGGER Log in to the AXIcloud app. Fill in all necessary fields. Enter the owner's email address to allow them to monitor their plant. Add the logger. The inverter will appear automatically after a short period. AXIhycon-EN241203...
- Page 11 If you encounter any issues with the inverter, please identify the inverter's serial number (S/N) and contact us. We will strive to respond to your inquiry as quickly as possible. AXITEC Energy GmbH & Co. KG Otto-Lilienthal-Straße 5 D-73014 Böblingen Mail: service@axitecsolar.com...
