Summary of Contents for Toshiba RC-10BHH

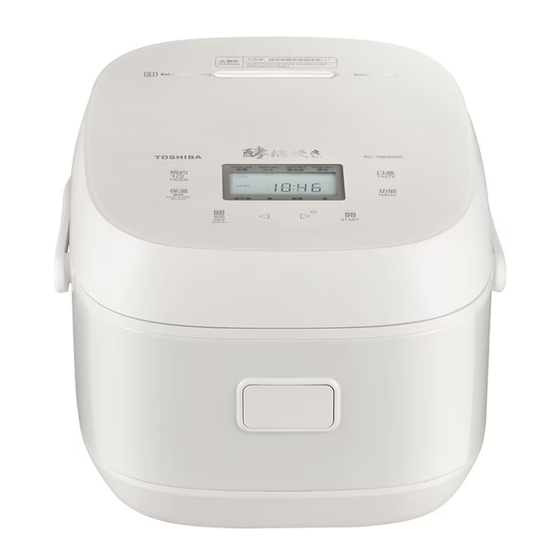

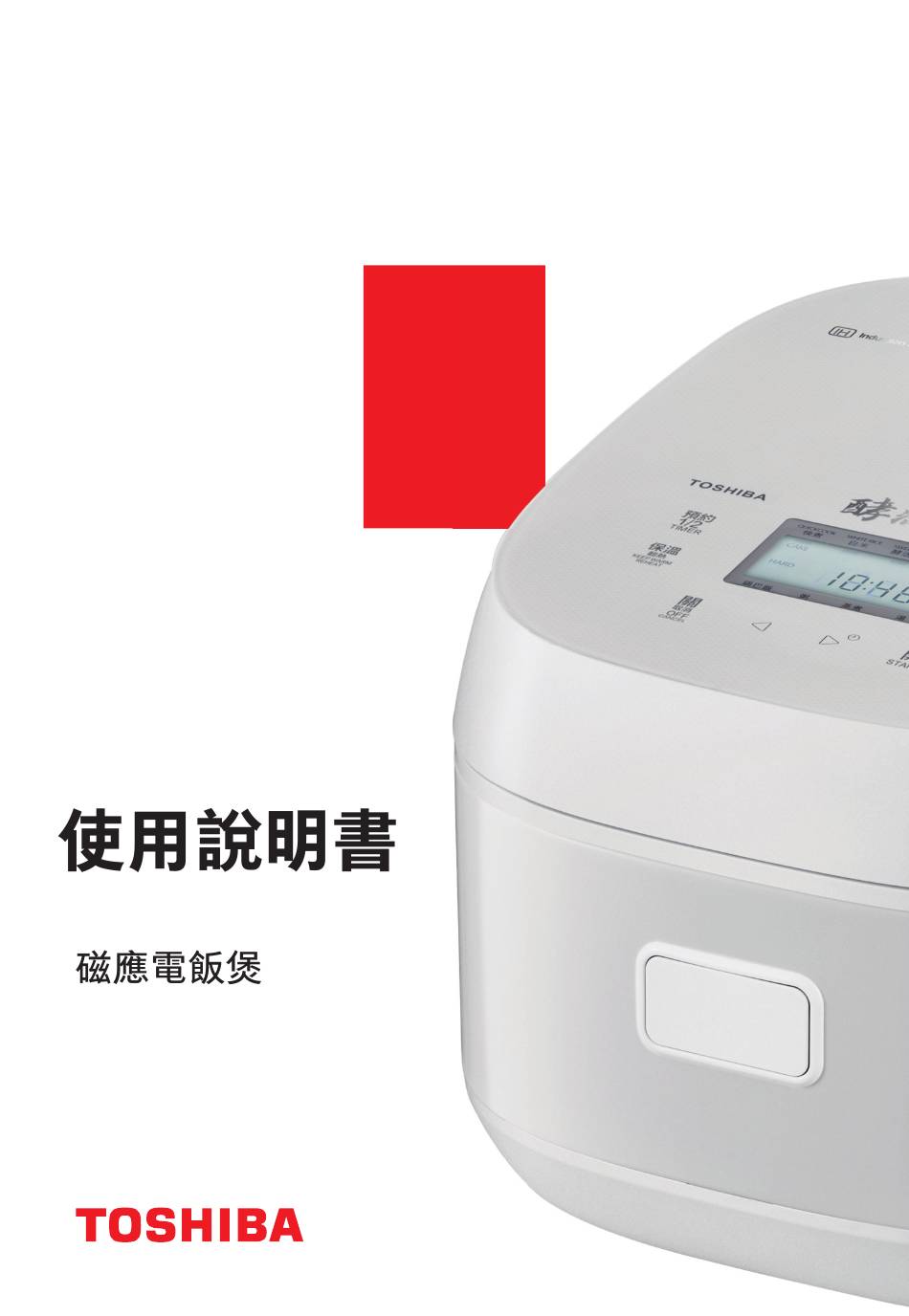

- Page 1 RC-10BHH (W) RC-15BHH (W)
- Page 3 • • • • • • • • • • •...
- Page 4 • • •...
- Page 5 220-240V~ 1000 1.0L RC-10BHH(W) 1.0L 242x315x220 mm 5.27kg 50/60Hz 220-240V~ RC-15BHH(W) 1300 5.93kg 1.5L 1.5L 299x362x226 mm 50/60Hz...
- Page 21 USER MANUAL IH Rice Cooker RC-10BHH (W) RC-15BHH (W)
- Page 22 Contents Safety Warning Safety Warning Specifications Parameters Introduction Part Name Accessories List Control Panel Function Cleaning and Maintenance Operation Guide How to Open/Close Upper Cover How to Cook Rice Working Hours Cooking Steps Cooking Delay Routine Inspection and Maintenance How to deal with cooking failure Service Guide Error Code Troubleshooting...
- Page 23 Safety Warning • This appliance is for household use only. Do not use outdoors. (IEC/EN/AN) • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 24 Safety Warning • If the supply cord(cord set) is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. • Please turn of and unplug the appliance before cleaning, maintenance or relocation and whenever it is not in use. •...
- Page 25 Parameters Rated Rated Maximum Product Product Rated voltage/ power cooking Size Weight Model capacity (L) frequency capacity (W x D x H mm) (kg) 220-240V~ 1000 1.0L 242x315x220mm 5.27kg RC-10BHH(W) 1.0L 50/60Hz 220-240V~ RC-15BHH(W) 1300 1.5L 1.5L 299x362x226mm 5.93kg 50/60Hz...
- Page 26 Introduction Part Name Please comprehend the following before using the product so that you can quickly master the use of the product. Since our products are constantly being upgraded, please refer to the actual product if there is any Tips discrepancy between the actual product and the picture.
- Page 27 Introduction Control Panel Display Timer key Taste key Keep warm Function key Reheat key Off/cancel key -/+ key Start key Function Operation guide In standby mode, press the [START] key to start the current working state, and START the product starts to work. Press the [Keep Warm/Reheat] key to enter the keep warm state, press it again to enter the “Reheat”...
- Page 28 Introduction Function Operation guide QUICK COOK WHITE RICE Press the [MENU] key to select the relevant function. The screen SWEET RICE displays the preset cooking time. Press the [START] key to enter the STICKY RICE cooking state. OKOGE To switch or cancel the current function, press the [Off/Cancel] key to CONGEE reselect.
- Page 29 Removing Movable Cover (for RC-10BHH(W)) Grasp the edge of the cover with your left hand, and push the inner cover slider in the direction of the arrow with your right hand; pull forward with your left hand to take out the movable cover.
- Page 30 Cleaning and Maintenance Disassembly/Assembly of Steam Valve Cover (for RC-15BHH(W)) Grasp the movable cover and Insert the buckle of the steam valve seat into the small hole of the open the lock steam valve cover and fasten the lock. Lock Steam valve cover Steam valve seat Note: When the steam port sealing ring on the inside of the steam valve cover comes out, press it in.
- Page 31 Operation Guide How to Cook Rice Use the measuring cup provided with the product to measure the rice. Correct Higher or lower than the rim 1 cup of rice can cook about 2 bowls of rice (the Rice should be level will make it unable to diameter of the bowl rim is about 11.5cm) with the rim of the cup...
- Page 32 Operation Guide Working Hours Cooking capacity Select “cooking mode” and “water level” according to the type of rice to be cooked. and cooking time estimation Cooking Function Taste Water level Cooking time capacity 50-60(50) DELICIOUS HARD WHITE RICE 35-50(40) STICKY White Rice 0.5-5.5 50-60(60)
- Page 33 Operation Guide Working Hours Cooking Function Taste Water level Cooking time capacity 50-60(50) DELICIOUS HARD 35-50(40) WHITE RICE STICKY White Rice 50-60(60) 0.5-8 QUICK COOK 30-40(25) SWEET RICE 60-70(60) OKOGE 50-60(60) Sticky Rice STICKY RICE 60-70(50) Mixed Rice GABA 240(240) Mixed Rice MIXED 70-80(70)
- Page 34 Operation Guide Cooking Steps Press [MENU] to select the corresponding function The display will change in the following sequence <QUICK COOK><WHITE RICE> <SWEET RICE><STICKY RICE><CAKE><GABA> <MIXED><BROWN><OKOGE><CONGEE> <STEAM><SOUP>. Press [Taste] to select the rice tate. The display will flash and change in the following sequence <DELICIOUS><HARD>...
- Page 35 Operation Guide Cooking Delay If it does not match the current time, Confirm whether it matches the current Beijing time cooking cannot be completed at the scheduled time. If the inner pot is not put in, the delay Wash the rice, add or reduce water, put the inner pot into the cannot be made.
- Page 36 Operation Guide Note for Delay Cooking If the cooked rice is soft, please reduce the amount of water according to your preference. During delay cooking, the starch in the rice will settle, so the rice at the bottom may have a light brown color. This phenomenon can be reduced by washing the rice thoroughly.
- Page 37 Routine inspection and Maintenance How to deal with cooking failure Please check before applying for repair. If the reason cannot be found out after investigation, please consult with the store where you buy the electric cooker. This time Investigate the reasons (reference page) Please reduce water volume for cooking.
- Page 38 Routine inspection and Maintenance This time Investigate the reasons (reference page) Whether the detachable inner lid has been installed well? If the detachable inner lid not installed, the upper housing cannot be closed to prevent forgetting the installation of the detachable inner lid. Diffcult to close Whether the plug-in part under the detachable inner lid is plugged in? Impossible to close...
- Page 39 Service Guide Error Code Please unplug the power plug (power side) from the socket and handle it as follows. Indicator status Display Possible reason Approach Bottom sensor open circuit Bottom sensor short circuit IGBT sensor open circuit Always on If the fault persists after unplugging the power IGBT sensor short circuit plug and turning it on again, please send it to Upper lid sensor open circuit...
