Summary of Contents for Bosch WAN28201EP

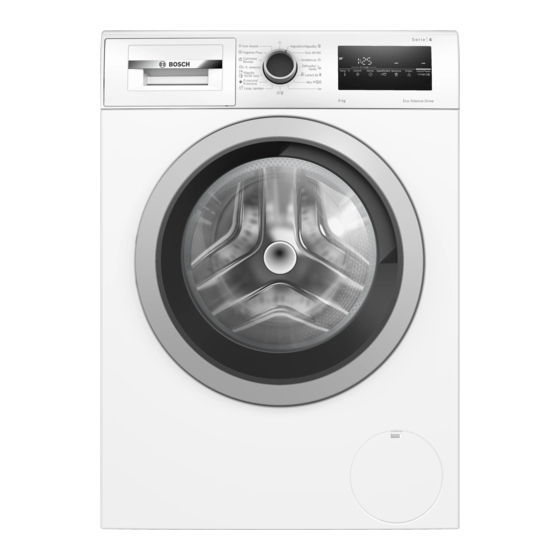

- Page 1 Washing machine WAN28201EP [en] User manual and installation instructions...
- Page 2 Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 22 1.1 General information.... 4 9 Programmes ...... 23 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 27 1.4 Safe installation ...... 5 11 Laundry........ 27 1.5 Safe use ........
- Page 3 14 Childproof lock...... 31 14.1 Activating the childproof lock ........ 31 14.2 Deactivating the childproof lock ........ 31 15 Basic settings...... 32 15.1 Overview of the basic set- tings........ 32 15.2 Changing the basic set- tings........ 33 16 Programme counter .... 33 16.1 Calling up the programme counter ........
- Page 4 en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡...
- Page 5 Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶...
- Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
- Page 7 Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
- Page 9 Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Never make any technical modifications to the appliance or its features. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶...
- Page 10 en Preventing material damage If the water pressure is too high or Preventing material damage 2 Preventing material too low, the appliance may not be able to operate properly. damage Ensure that the water pressure in ▶ the water supply system is at least Preventing material damage ATTENTION! 100 kPa (1 bar) and max.
- Page 11 Environmental protection and saving energy en Set the maximum spin speed if you Environmental protection and saving energy 3 Environmental protec- want to dry the laundry in the tumble tion and saving energy dryer afterwards. a The drier the laundry, the shorter Environmental protection and saving energy the programme duration when dry- 3.1 Disposing of packaging...
- Page 12 en Installation and connection Replace the accessories in ques- ▶ Installation and connection 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 27 Installation and connection Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order.
- Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. power cord or Do not install or operate this appli- ▶ the hoses ance anywhere that is liable to ex- between the wall...
- Page 14 en Installation and connection Unscrew and remove all of Put on the 4 cover caps. the screws for the 4 transit bolts using a WAF 13 wrench. Push the 4 cover caps downwards. Remove the power cable from the holder. Note: To install the transit bolts to transport the appliance, perform these steps again in the reverse or- Remove the 4 sleeves.
- Page 15 Installation and connection en Connect the water inlet hose to a Plastic pipe with Fix and secure tap (26.4 mm = 3/4"). rubber sleeve or the water outlet gully hose with an el- bow. → "Accessories", Page 27 Connecting the appliance to the electricity supply Note: Your electrical domestic install- ation for this appliance must comply Open the water tap carefully and with the local legal provisions and...
- Page 16 en Installation and connection Use a WAF 17 wrench to tighten 4.6 Aligning the appliance the lock nuts against the housing In order to reduce noise and vibra- until they are hand-tight. tion and to prevent the appliance from moving, align the appliance cor- rectly.
- Page 17 Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured.
- Page 18 en Familiarising yourself with your appliance Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 28 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
- Page 19 Before using for the first time en Add washing powder that contains Before using for the first time 6 Before using for the a bleaching agent to compart- ment II. first time Prepare the appliance for use. Before using for the first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor-...
- Page 20 en Display Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 22 Recommendation for the maximum load capacity for the selected program in kg.
- Page 21 Display en Display Description ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ance has been operated. → "Deactivating the childproof lock", Page 31 Prewash is activated. → "Buttons", Page 22 Silent Wash is activated. → "Buttons", Page 22 ...
- Page 22 en Buttons Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection More information Inicio / Pausa + ¡ Start Start, cancel or pause the pro- Carga gramme. ¡ Cancel ¡ Pause SpeedPerfect ...
- Page 23 Programmes en Programmes 9 Programmes Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Algodón / Al- Wash hard-wearing items made of cotton, linen or godão blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate SpeedPerfect ...
- Page 24 en Programmes Programme Description Max. load (kg) Programme setting: ¡ Max. 60 °C ¡ Max. 1400 rpm Delicado / Seda Wash delicate, washable items made from silk, vis- cose and synthetic fabrics. Use a detergent that is suitable for delicates or silk. Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag.
- Page 25 Programmes en Programme Description Max. load (kg) Camisas/ Wash non-iron shirts and blouses made from cot- Blusas ton, linen, or synthetic or blended fabrics. Note: Use the Delicado / Seda programme to wash shirts and blouses made from silk or delicate fabrics.
- Page 26 en Programmes Programme Description Max. load (kg) Programme setting: ¡ Max. 40 °C ¡ Max. 1200 rpm Limp. tambor Clean and care for the drum. – Use this programme in the following cases: ¡ Before using the appliance for the first time ¡...
- Page 27 Accessories en Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 48. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx.
- Page 28 en Detergents and care products If required, adjust the programme Detergents and care products 12 Detergents and care settings. → "Adjusting the programme set- products tings", Page 28 The manufacturer's instructions for Detergents and care products use and dosage can be found on the 13.3 Adjusting the pro- packaging.
- Page 29 Basic operation en Press down on the insert and re- Slide the measuring aid forwards. move the detergent drawer. Fold the measuring aid down and Insert the measuring aid. click it into place. Insert the detergent drawer. Push in the detergent drawer. 13.6 Use the measuring aid 13.7 Adding detergent and for liquid detergent...
- Page 30 en Basic operation Requirements 13.8 Starting the programme ¡ The laundry is placed in the appli- Requirement: A programme is set. ance. → "Setting a programme", Page 28 → "Loading laundry", Page 28 ¡ A programme has started. Press Inicio / Pausa + Carga . ▶ → "Starting the programme", a The drum rotates and load detec- Page 30...
- Page 31 Childproof lock en Remove the laundry. Leave the appliance door and de- → "Unloading the laundry", tergent drawer open so that resid- ual water can evaporate. Page 31 13.13 Resuming the pro- Childproof lock 14 Childproof lock gramme when the pro- gramme status is Rinse Secure your appliance against being Childproof lock Hold...
- Page 32 en Basic settings Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme.
- Page 33 Programme counter en 15.2 Changing the basic set- Cleaning and servicing 17 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. Cleaning and servicing ciently for a long time, it is important to clean and maintain it carefully. 17.1 Cleaning the drum CAUTION Risk of injury!
- Page 34 en Cleaning and servicing Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer.
- Page 35 Cleaning and servicing en Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 36 en Cleaning and servicing Insert the pump cap. Cleaning the drain pump Ensure that the parts of the Requirement: The drain pump is ‒ pump cap are correctly as- empty. → Page 34 sembled. Since water may remain in the drain pump, unscrew the pump cap carefully.
- Page 37 Cleaning and servicing en Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash, run a suitable programme for draining after you have emptied the drain pump. Open the water tap. Insert the mains plug. Switch on the appliance.
- Page 38 en Troubleshooting Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
- Page 39 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into compartment II (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 40 en Troubleshooting Fault Cause and troubleshooting flashes. Voltage under-usage may cause extension of a pro- gramme. No remedial action possible. lights up. Voltage under-usage may cause extension of a pro- gramme. No remedial action possible. lights up. The temperature is too high. Wait until the temperature has dropped.
- Page 41 Troubleshooting en Fault Cause and troubleshooting The appliance is not The circuit breaker in the fuse box has tripped. working. Check the circuit breaker in the fuse box. ▶ There has been a power cut. Check whether the lighting in your room or other ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting The water is not drain- – – – is activated. ing. Continue the programme by selecting or and ▶ pressing Inicio / Pausa + Carga . → "Resuming the programme when the programme status is Rinse Hold", Page 31 The water outlet hose is connected too high.
- Page 43 Troubleshooting en Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 44 en Troubleshooting Fault Cause and troubleshooting Heavy foam build-up Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into compartment II (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 34 ▶ pump. Slurping, rhythmical The drain pump is active, the detergent solution is suction noise. pumped out.
- Page 46 en Troubleshooting Fault Cause and troubleshooting The spin result is not Note: Where possible, mix large and small items in satisfactory. The laun- the drum. Different sized items of laundry distribute dry is too wet/too themselves better during the spin cycle. damp. Start the ...
- Page 47 Transportation, storage and disposal en 18.1 Emergency release 19.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 34 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage.
- Page 48 en Customer Service 19.4 Disposing of old appli- Customer Service 20 Customer Service ance Function-relevant genuine spare parts Customer Service Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health!
- Page 49 Consumption values en Consumption values 21 Consumption values The following information is provided in accordance with the EU Ecodesign Consumption values Regulation. The values given for programs other than the Eco 40-60 are indic- ative only and were determined in accordance with the applicable standard EN60456.
- Page 50 en Technical data identifier is made up of the charac- Technical data 22 Technical data ters before the slash in the product number (E-Nr.) on the rating plate. Al- Technical data ternatively, you can also find the Appliance height 84.5 cm model identifier in the first line of the Appliance width 59.8 cm EU energy label.
- Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
