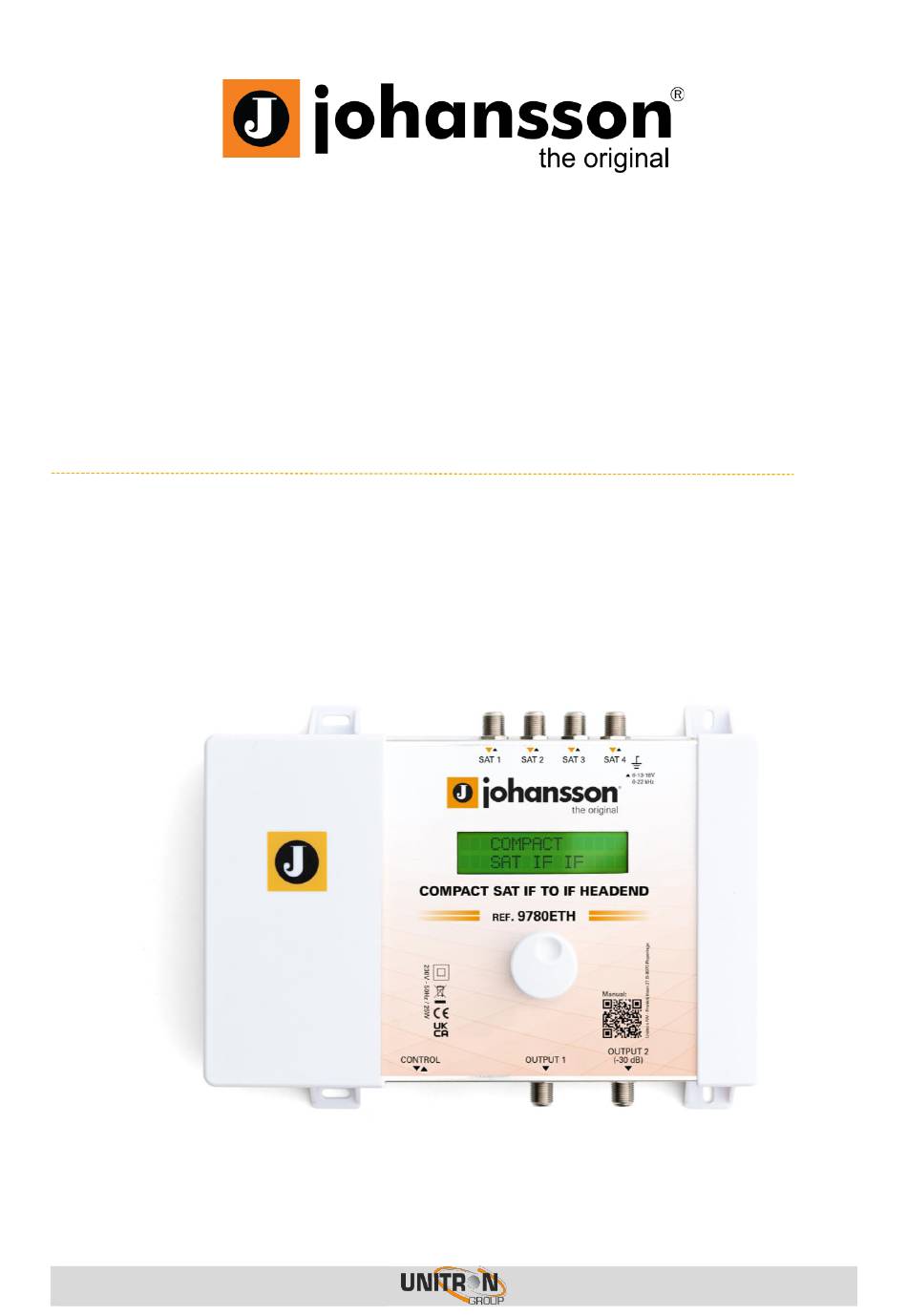

- Page 1 User Manual COMPACT SAT IF TO IF HEADEND With Ethernet Access Ref. 9780ETH SW Version 1.3.0.
- Page 2 No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any language without permission. Unitron reserves the right to change the specifications of the hardware and software described in these manuals at any time. Unitron cannot be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice.
- Page 3 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 1. I NTRODUCTION 1.1. Product description The 9780ETH is the new generation convertor for satellite signals to be used in MDU’s. The compact plug-and-play module has a straightforward and easy configuration. • programmable satellite IF convertor •...
- Page 4 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 1.4. Hardware installation 1: T IGURE OP VIEW OF PRODUCT 1.5. Status LED and reset status led red: remote control is starting status led blinking green/red: remote control started trying to connect to the ucloud status led green: unit started and connected to ucloud small reset button pressed shortly: -status led turns red...
- Page 5 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 1.6. Mounting the COMPACT SAT IF TO IF HEADEND • Important: Mount the module vertically to a wall in a well-ventilated room and leave a minimum space of 15 cm around the product to guarantee a maximum ventilation of the product •...
- Page 6 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 4. Add new “+ NEW” 5. Fill in your product details and click “create”. The Remote Key can be found on the back of the module. 6. Device is now added in the list...
- Page 7 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 7. When the device is connected, status will change to “online” click “connect” to enter device configuration b. Configuring the device Information Input • Configure all inputs: label, DC, Band...
- Page 8 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) Filters: • Set the parameters for all Filters (input, input frequency, bandwidth, output frequency) • Scan input: choose your input and mode and click start scan (this enables to scan the incoming signals per input, a useful function when configuring the device (remotely)) •...
- Page 9 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 1.8. Configuring the COMPACT SAT IF TO IF HEADEND using the Rotary button AVIGATING THROUGH THE MENU Use the Johansson rotary/push button to navigate through the menu. This is very straightforward and simple. The table below shows how the rotary/push should be used: Push the button 2s to enter the basic configuration.
- Page 10 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) NPUT SETTINGS AUTOSCAN STARTING WITH COPY INPUT 1 DISPLAY READOUT EXPLANATION Copy input: scan and detect the available transponders (up to 32) and put them on the output. Note: this function is only applicable for Input 1. MODE: choose your input signal and output signal and tap to confirm (see table below) The following COPY INPUT 1 modes are possible:...
- Page 11 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) NPUT SETTINGS MANUAL STARTING WITH INPUT SAT 1 DISPLAY READOUT EXPLANATION Tap INPUT SAT 1 to enter the menu to configure input 1 manually.Rotate the button to go down in the menu. DC: Decide whether the input should provide power to an LNB or external amplifier.
- Page 12 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) To delete a transponder, position the arrow on the transponder and press the rotary button 3 seconds. DISPLAY READOUT EXPLANATION To delete a transponder, position the arrow on the transponder and press the rotary button 3 seconds. When you have added all the transponders to INPUT SAT 1, and you want to add transponders to the other inputs, scroll up to the top of the menu (to INPUT SAT...
- Page 13 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) ADVANCED SETTINGS DISPLAY READOUT EXPLANATION language of the COMPACT SAT IF TO IF HEADEND can be set to English, Italian, Spanish or French. Tap FW VERSION to check the firmware version of the device.
- Page 14 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 2. T ECHNICAL PECIFICATIONS COMPACT SAT IF TO IF HEADEND – 9780ETH Inputs 4 SAT (wideband/quattro/quad) Outputs 1 main (SAT) + 1 test port (-30dB) SAT Input Frequency range 290 - 2340 SAT Output Frequency range 290 - 2340 SAT Input level...
- Page 15 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) 3. S AFETY NSTRUCTIONS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: • Do not expose the unit to rain or moisture. • Install the unit in a dry location without infiltration or condensation of water. •...
- Page 16 If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. Return the product to your local dealer for reparation.
- Page 17 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) TEMPLATE FOR PRESET 1 TRANSPONDER SAT INPUT INPUT FREQUENCY OUTPUT FREQUENCY BANDWIDTH -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4-...
- Page 18 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) TEMPLATE FOR PRESET 2 TRANSPONDER SAT INPUT INPUT FREQUENCY OUTPUT FREQUENCY BANDWIDTH -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4- -1-2-3-4-...
- Page 19 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH)
- Page 20 COMPACT SAT IF TO IF HEADEND (REF. 9780ETH) UNITRON NV Frankrijklaan 27 B-8970 Poperinge Belgium T +32 57 33 33 63 F +32 57 33 45 24 sales@unitrongroup.com www.unitrongroup.com...
