Summary of Contents for Acetech AC2000

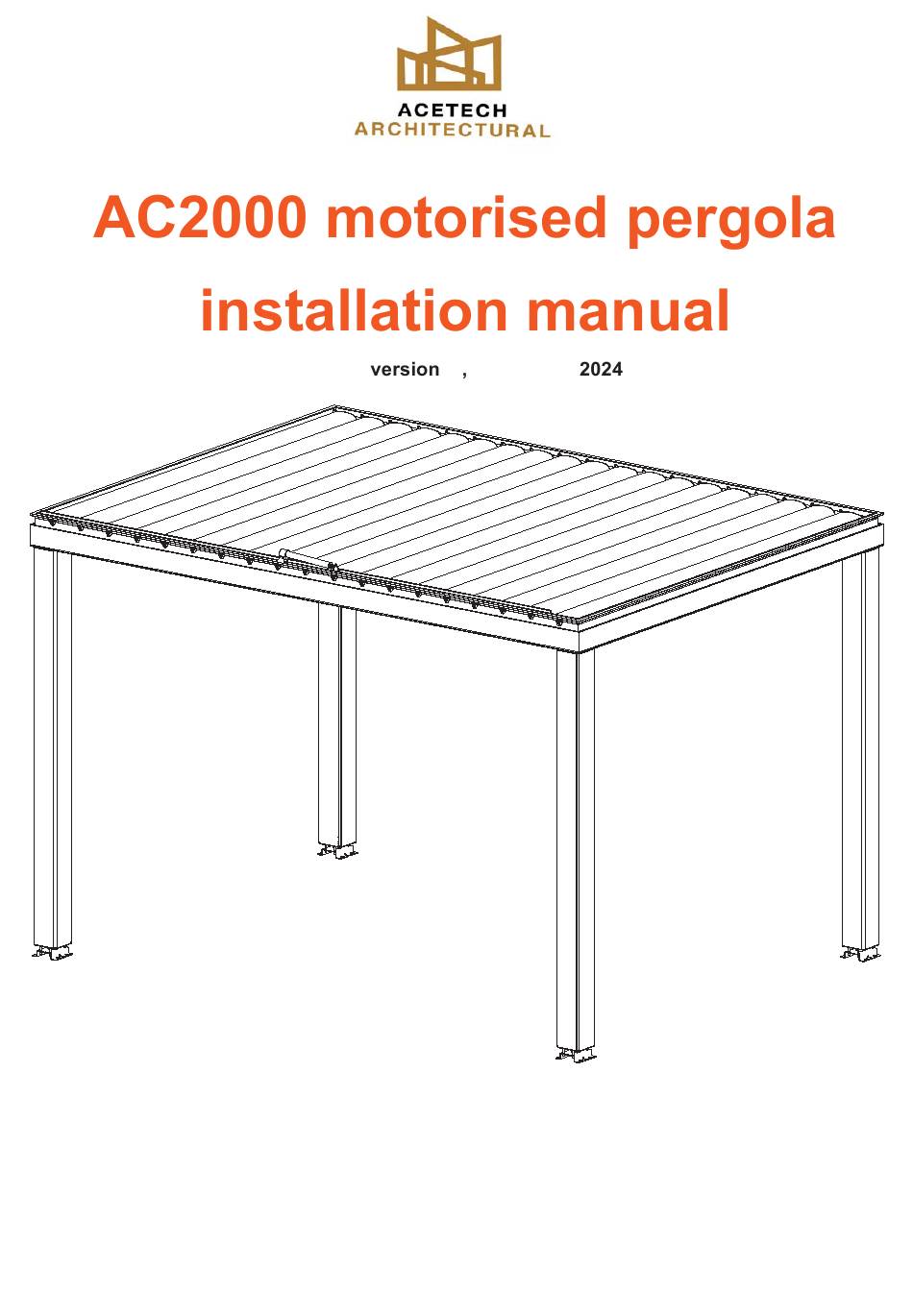

- Page 1 2 September Please read the installation manual carefully to avoid any problems All the Best! One-Stop Manufacturer Supplier For All Kinds Of Aluminum Products...
- Page 2 Steps & Parts Posts Motor Beam Connection Beam Gutter blade Posts Blades Base Motor Finish...
- Page 3 Parts&Accessories A M10*100 Post Bolts Post Base M10*55 Screws M6*40 Post screws Post Top M10*16 Screws Beam Base M8*16 Screws Beam Side M5*19 Screws Sink Iron M4*16 Angle Screw M6*10 Gutter Screws...
- Page 4 Parts&Accessories B D10*M8*45 Blade Screws Blade cover M4*12 Screws PC Base M4*16 Screws Drag Bar D6*M5*5 Screws Connecting M5*12 Rod Screws Motor Base M8*12 Screws D8*M16*30 Motor Screws L18 D8.2 Motor sleeve...
- Page 5 Parts&Accessories C Column DDBY220-PJ-01 170*170*39 Base A Column DDBY220-PJ-02 170*170*4.0 Base B Column DDBY220-PJ-03 170*170*4.0 Connecting Plate A Column DDBY220-PJ-04 170*170*4.0 Connecting Plate B Beam L Part DDBY220-PT-05 135*135*7.0 Blade Seal DDBY220-PJ-06 222*71*2.0 DDBY220-FJ-07 44*44*28 Spin Base...
- Page 6 Parts&Accessories D Drive Rod DDBY-FJ-01 60*53*4.0 Wwivel Seat Side Beam DDBY-PJ-05 50*50*3.0 Corner Code DDBY-PJ-06 50*37*38 Motor Base Sink Iron DDBY-PJ-07 12.2*12.2*1.8 Angle Piece AM36-D800N 36*36*450 Motor DC24V Downpipe SMR-P18 Connector Blade SMR-P19 10.5*5.5 Adhesive Strip...
- Page 7 1.Post assemble screw C Column Connecting Plate A Finished Bottom Column base B Screw B This step is done at the factory Base finished Screw C Column base A...
- Page 8 2.Beam assemble 1 Sink Iron Angle Piece beam L part Connect beams...
- Page 9 2.Beam assemble 2 Column Connecting Plate A Screw E...
- Page 10 2.Beam assemble 3 Screw F Screw G Side Beam Corner Code Fixing hinges and connections...
- Page 11 2.Beam assemble 4 Screw D Screw A Ps: once finished above, follow the position and anchor one bolt to ground When the frame is complete, you must level 4 corners, then anchor the rest.
- Page 12 3.Gutter assemble 1 Gutter to beams...
- Page 13 3.Gutter assemble 2 Screw H Triangle plate Screw G Gutter when finished assembling...
- Page 14 4.Blade assemble 1 Blade seal Screw J Blades are finished before leaving factory...
- Page 15 4.Blade assemble 2 Finished Screw K D10 spin base...
- Page 16 4.Blade assemble 3 Ps:Must follow the numbers and match them with themsame one on beams !!! Screw I Finished...
- Page 17 5.Motor assemble 1 Motor Drive Rod Wwivel Seat Screw M Screw L...
- Page 18 5.Motor assemble 2 Motor Base Screw N...
- Page 19 5.Motor assemble 3 Ps:All screws musht be fixed Screw L One-Stop Manufacturer Supplier For All Kinds Of Aluminum Products 18...
- Page 20 6.Line Connection 1 Wiring principle DC MOTOR CONTROL M+/- M-/+ STOP DOWN UP LED Strip Receiver Control Panel DC MOTOR CONTROL M+/- M-/+ STOP DOWN UP Alternating Voltage Front Reverse Side...
- Page 21 6.Line Connection 2 Wiring principle Overall Detail A Detail B...
- Page 22 6.Line Connection 3 Wire arrangement Detail A Detail B *After installing the control panel, please seal it with glass glue to avoid wire breakage Detail C...
- Page 23 7.Beam Installation 1 11. Line Connection B Inset the fixture into the beam and screw it this step is complete at the factory Clamp the beam and fixture to the opening position of the sink.
- Page 24 7.Beam Installation 2 Fix the fixture and the beam with screws. Cover the beam cover. Installation completed...
- Page 25 Completed...
- Page 26 Contact Us Web: Acetecharch.com.au Email: sales@acetecharch.com.au Tel: 02 9724 5566 Address: 40 Lisbon Street Fairfield East NSW 2165...
