Summary of Contents for SONGXU SX-MH1915

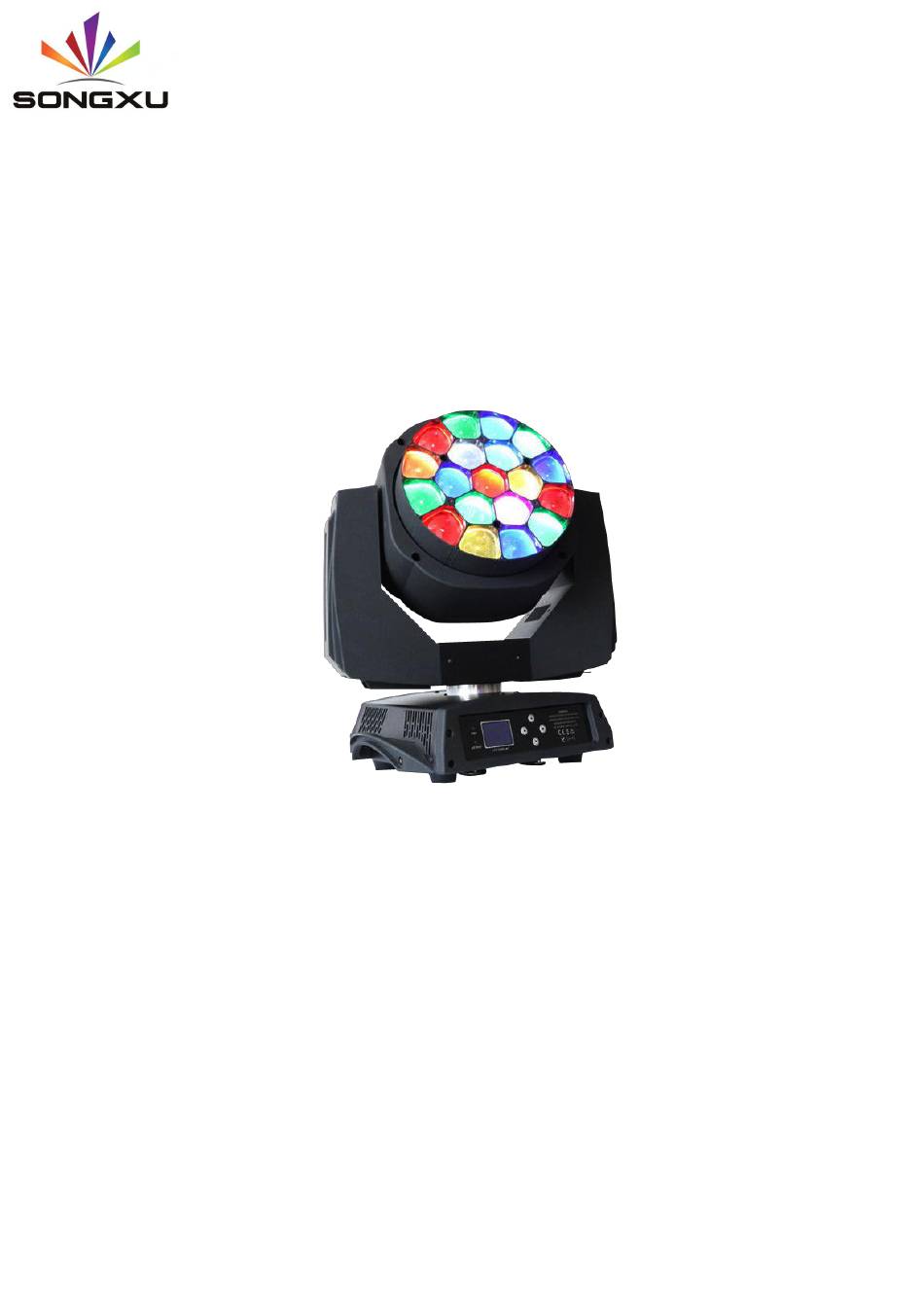

- Page 1 SX-MH1915 User Manual...
- Page 2 Big bees eyes moving head light 1.Unpacking Thank you for choosing our lighting. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions.
- Page 3 Big bees eyes moving head light 2. Product Introduction Big bees eyes moving head...
- Page 4 Big bees eyes moving head light 3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.
- Page 5 Big bees eyes moving head light 4. Operation Instructions -The moving head is for wash effect for on-site decoration purpose. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
- Page 6 Big bees eyes moving head light Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself.
- Page 7 Big bees eyes moving head light 6. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking.
- Page 8 Big bees eyes moving head light 7. DMX Channels 21 CH Function DMX Value Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White...
- Page 9 Big bees eyes moving head light 23 channels mode Function Details 0-255 Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom...
- Page 10 Big bees eyes moving head light 35 channels mode Function Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer...
- Page 11 Big bees eyes moving head light 78 channels mode Function Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer...
- Page 12 Big bees eyes moving head light 92 Channels mode Function Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer...
- Page 13 Big bees eyes moving head light 97 CH Channel Function DMX Value Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer...
- Page 14 Big bees eyes moving head light 99 CH Function DMX Value Details 0-255 Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom...
- Page 15 Big bees eyes moving head light 8. Display instruction Big bees eyes moving head...
- Page 16 Big bees eyes moving head light 9.Board connection: LED driver board Big bees eyes moving head...
- Page 17 Big bees eyes moving head light Main board: Screen board: Big bees eyes moving head...
- Page 18 Big bees eyes moving head light 10. Key Features Voltage: AC100V～240V 50-60HZ Power: 450W LED Source: 19x15W high power RGBW 4 in 1 LEDs Zoom: 4-60° Strobe: 0-20Hz Control Mode: DMX512,Sound-actived,Master/slave DMX Channels: 21 CH/23 CH/35 CH/78 CH/92 CH/97 CH/99 CH Dimmer: 0-100% linear dimmer Pan: 540°+16bit fine Tilt: 270°+16bit fine...
- Page 19 Big bees eyes moving head light 6. Fan cooling (fan will be change the speed with the temperature variation). Temperature detecting system (If the temperature detected error, the light will stop working to protect the fixture) 9. Photometric Data: LUX Data of 4 degree beam angle: 83700LUX@2.5m 2550LUX@5m 1150LUX@7.5m...
- Page 20 Big bees eyes moving head light 10. Maintenance and Cleaning The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
