Summary of Contents for IDENTEC SOLUTIONS iQ355 XW

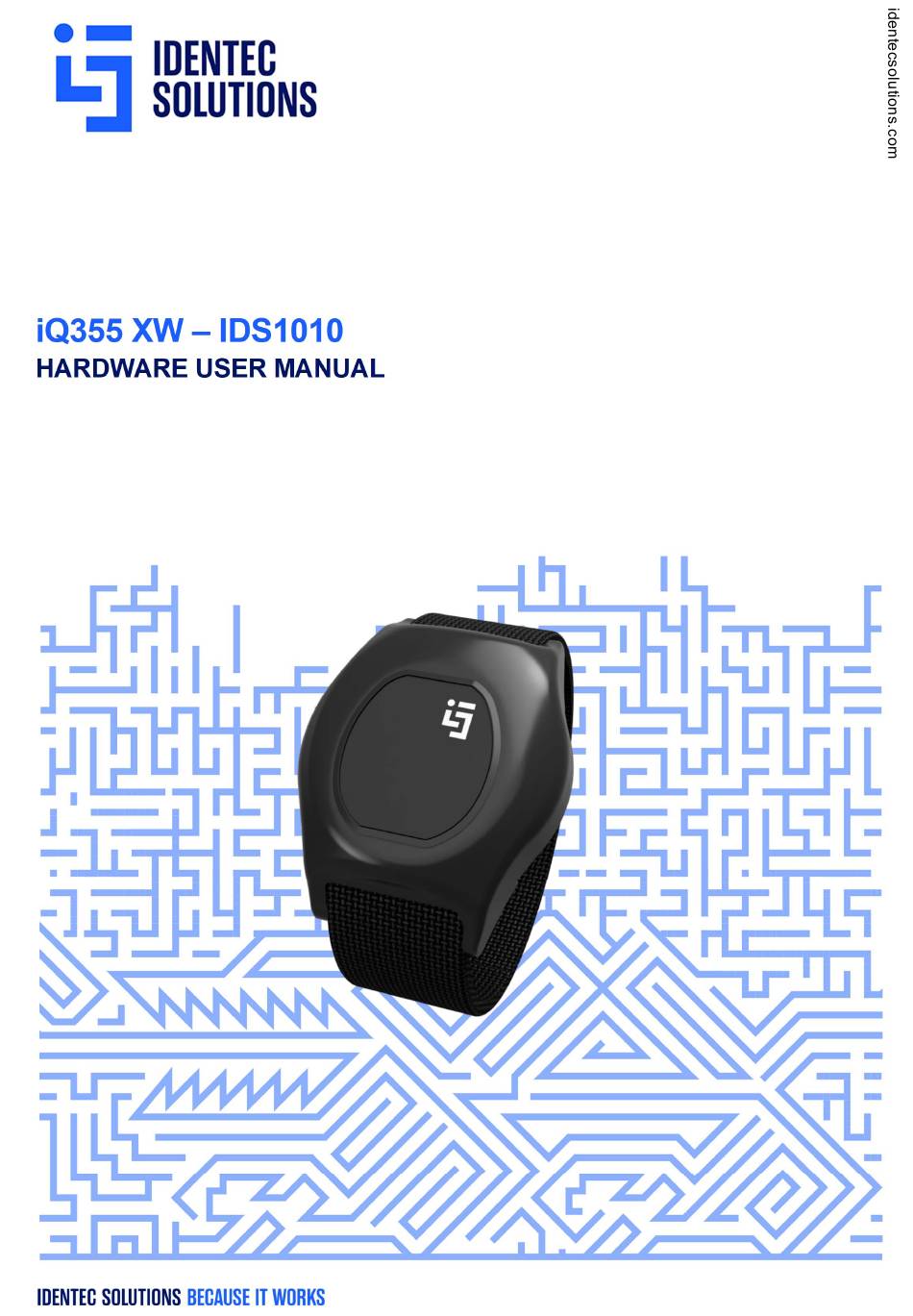

- Page 1 XW – IDS1010 Variants: iQ355 W HARDWARE USER MANUAL iQ355 XW iQ355 W NFC iQ355 XW NFC...
- Page 2 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 CONTENTS 1.0 PREFACE ..........................8 2.0 INTRODUCTION ........................9 2.1. iQ355 XW Tag and System Description ................9 2.2. UHF Interface ........................ 10 2.3. LF Interface ........................10 2.4. NFC Interface (Optional) ....................11 3.0 SYSTEM COMPONENTS AND MARKERS .................
- Page 3 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023...
- Page 4 Deutschland GmbH; b) IDENTEC SOLUTIONS Norway AS; c) IDENTEC SOLUTIONS Inc; d) IDENTEC SOLUTIONS Australia and New Zealand PTY LTD. IDENTEC SOLUTIONS AG reserves the right to establish additional subsidiaries at its sole discretion at any time without prior notice.
- Page 5 XW. European Declaration of Conformity according to RED Directive IDENTEC SOLUTIONS AG hereby declares that the device iQ355 XW is in conformity with the essential requirements of Directive 2014/53/EU. The declaration of conformity can be found at: www.identecsolutions.com...
- Page 6 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 Radio Frequency (RF) Exposure Compliance of Radiocommunication portable apparatus This device complies with FCC and ISED Canada RF radiation exposure limits set forth for general population (uncontrolled exposure). This device must not be collocated or operating in conjunction with any other antenna or transmitter.
- Page 7 These notes are not sufficient to guarantee complete protection from electrostatic discharges! We recommend the use of suitable protective equipment. IDENTEC SOLUTIONS does not accept the return of products where the regulations concerning the ESD precautions and protective packaging materials were not followed.
- Page 8 This installation manual must be read carefully prior to starting the installation. The described installation works assuming that installation materials like cables, antennas and any mechanical parts are available. This document is the hardware description of the iQ355 XW. This document is intended only for mechanical and electrical installation of these units.

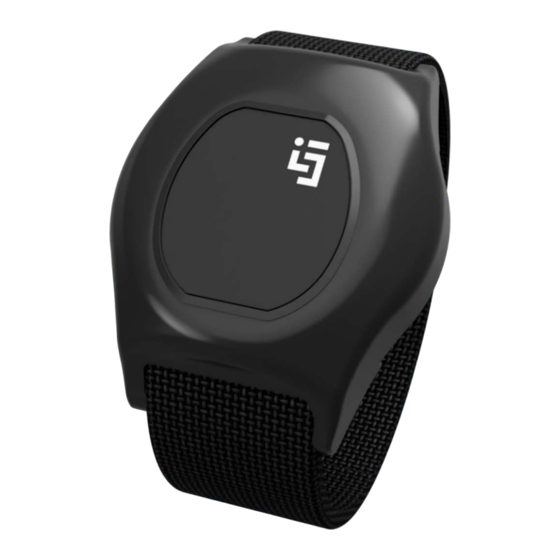

- Page 9 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 INTRODUCTION 2.1. IQ355 XW TAG AND SYSTEM DESCRIPTION The iQ355XW tag is an ATEX-Certified Personnel tag, designed for use with all personnel safety, real-time location and access control applications. The robust tag is especially suited to harsh environments, in industries such as Oil &...
- Page 10 The UHF interface is a wireless communication interface using the UHF ISM frequency band and IDENTEC’s protocols. The iQ355 XW has an internal UHF antenna and can communicate up to a range of 500 meters with a reader or iPOINT device.
- Page 11 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 2.4. NFC INTERFACE (OPTIONAL) The NFC Interface is a Near Field Communication interface. The iPOINT can be used as an entry terminal. Alternatively the tag can communicate with access control system over standard NFC interfaces. The range from...
- Page 12 SYSTEM COMPONENTS AND MARKERS Identec offers a range of readers and markers that can be used together with the iQ355 XW tag in the system. The tags provide long range communication with the readers/Markers of up to 500 m (1640 ft), using advanced UHF radio frequency technology.
- Page 13 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 MECHANICAL INFORMATION AND INSTALLATION 4.1. MOUNTING OPTIONS The tag is fitted with a snag-safe wristband for comfortable use on the wrist. For ATEX and IECEx, certified wristbands must be used!
- Page 14 Is there a sudden malfunction at a specific unit? 5.1. MAINTENANCE When installed correctly the iQ355 XW tag will operate virtually maintenance free for many years. However, in the event maintenance is required, only trained and authorized personnel are permitted to perform the updates, changes and necessary maintenance.
- Page 15 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 5.3. RETURNS Parts or main components returned for repair or exchange must be handled with great care. All returns should include an error description and a short application overview and be sent to the local distributor or to:...
- Page 16 IQ355 XW | HARDWARE USER MANUAL | 14/12/2023 TECHNICAL SPECIFICATIONS Communication Broadcast & Response 355 Operation Mode Transmits ID and monitoring data at a pre-defined interval Read Range Up to 150m (500 ft) (integrated Antenna) Compatibility i-PORT, iPOINT Operating Frequency...
