Summary of Contents for ATI Technologies JCPRT Series

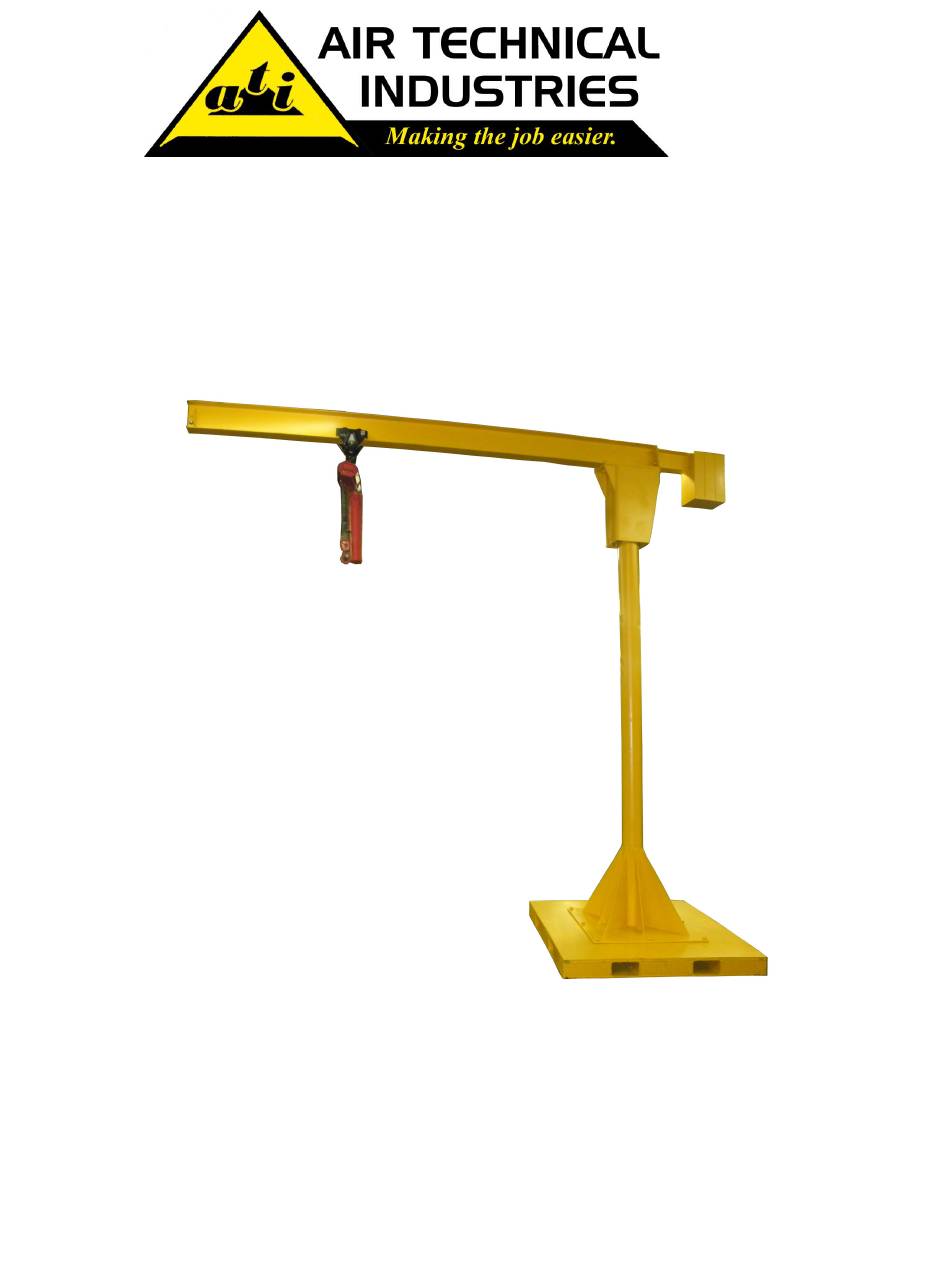

- Page 1 PORTABLE JIB CRANE PARTS AND SERVICE MANUAL Air Technical Industries PORTABLE JIB CRANE 7501 Clover Avenue MODELS: JCPRT FAMILY Mentor, Ohio 44060 Toll Free: 800-321-9680 Phone: 440-951-5191 Fax: 440-953-9237 www.airtechnical.com...
- Page 2 TABLE OF CONTENTS PAGE 2 TABLE OF CONTENTS PAGE 3 GENERAL INFORMATION/ SAFE OPERATING INSTRUCTIONS PAGE 4-5 LAYOUT DRAWING PAGE 6-7 PARTS LIST PAGE 8 HEAD ASSEMBLY PAGE 9 ELECTRICAL SCHEMATIC PAGE 10-11 ASSEMBLY INSTRUCTIONS PAGE 12-13 INSPECTION AND MAINTENANCE RECORD PAGE 14 WARRANTY/ RETURN GOODS...
- Page 3 GENERAL INFORMATION You are now the proud owner/user of Air Technical Industries’ Portable Jib Crane. The Jib Crane, with its many configurations and options, is a highly versatile machine that is designed to perform a wide range of lifting, feeding, accumulating, aligning, transporting, upending, rotating, tilting and moving operations.
- Page 6 JCPRT PARTS LIST POWERPACK PARTS VOLTS PART NUMBER ITEM 1 GEAR REDUCER 440V ¼ CONSULT FACTORY BRAKE MOTOR 440V ¼ CONSULT FACTORY ITEM 2 MAG STARTER STANDARD PEMS44033 ITEM 3 TRANSFORMER MICRON B050BTZ13JK ITEM 4 SLIP RING CONNECTOR R-SERIES PECRKW010 ITEM 5 PENDANT CONTROLLER 2-BUTTON...
- Page 7 POWERPACK PARTS VOLTS PART NUMBER ITEM 12 BEARING TIMKEN TAPERED BEARING 4” BORE PTBHM8134 BEARING RACE TIMKEN TAPERED RACE 7 1/2” OD PTBHM8130 ITEM 13 FESTOONING KIT 120# CAPACITY 18' TRAVEL, 20' OVERALL LG. 3358T51...
- Page 12 Maintenance Instructions The JCPRT is designed to give many years of trouble-free service and requires only the following routine maintenance procedures Daily 1. Inspect load chain/cable for wear, elongation, fraying or twisting of chain links 2. Inspect control cable & housing for nicks, cuts or broken connection on electrical wiring 3.
