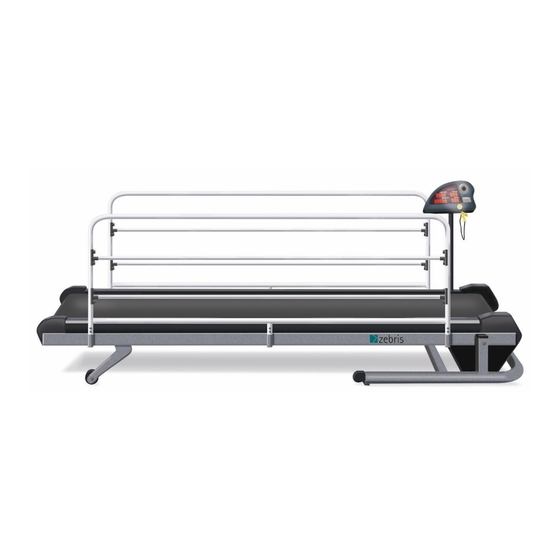

Specifications

and

Operating Instructions

zebris Medical GmbH

www.zebris.de

Text-Release: 26/10/2023

Need help?

Do you have a question about the CanidGait FDM2 and is the answer not in the manual?

Questions and answers

Summary of Contents for zebris CanidGait FDM2

Page 1 Specifications Operating Instructions zebris Medical GmbH www.zebris.de Text-Release: 26/10/2023...
Page 2 ANID EASURING YSTEM VIDEO-MODULE........................... 24 ® .................. 24 ONNECTION TO THE ANID YSTEM 4.1.1 SYNCC ..................24 ONNECTION TO THE ZEBRIS 4.1.2 SYNCC / SYNCC HS ............... 25 ONNECTION SCHEME 4.1.3 SYNCL ..................26 ONNECTION SCHEME IGHT SYNCC ..........................27 SYNCC HS ...........................
Page 3 ......................42 ONTROL ROCEDURES ........................43 ROUBLESHOOTING ....................... 44 LEANING AND DISINFECTION 6.5.1 ....................... 44 LEANING ROCEDURE ........................... 44 ISPOSAL 6.6.1 ..........................44 ACKAGING 6.6.2 WEEE-D ........................44 IRECTIVE ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 3/44...
Page 4 1 Introduction © 2023 zebris Medical GmbH All rights reserved. Reproduction in whole or in part only with the express permission of zebris Medical GmbH. Illustrations of this manual may differ. 1.1 Manufacturer Information Manufacturer zebris Medical GmbH Phone +49 (0)7562 9726 - 0 Am Galgenbühl 14...
Page 5 The exact adherence to the instructions in all sections of the operat- ing instructions for the measuring system is a precondition for its in- WARNING tended use. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 5/44...
Page 6 Symbol indicates a potential hazard that can cause damage to the eyesight. This warning explains the nature of the hazard and how it can be avoided. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 6/44...
Page 7 The ventilation slots of the treadmills must be always free, so that air can circulate freely. 2.2 Storage and Transport Storage and transport of the measuring system are only to be affected in the original pack- aging provided by zebris. Temperature -20°C to +70°C Relative humidity max.
Page 8 ✓ the valid industrial safety regulations. ✓ the valid accident prevention measures. • For the safety, reliability and performance of the components delivered by zebris, respon- sibility is assumed, if: ✓ assembly, extensions, re-settings, changes, or repairs were carried out through zebris or third parties authorised by zebris, trained technicians or employees of au- thorised dealers.
Page 9 Removing the covers may expose you to life- threatening voltages or other risks. • It is not permitted to change or modify the measuring system, its components or zebris software in any way without written approval from zebris. In case of modifications without approval, the operator is obliged to perform appropriate examinations and tests to ensure safe use.
Page 10 • We also point out that if any changes are made to this certified device or its accessories without the prior written consent of zebris, your legal right to operate the device will be void. If changes are made to the device without obtaining approval, the operator is obli- gated to carry out suitable investigations and tests in order to guarantee safe use.
Page 11 • Sensor equipment for measuring the pressure distribution • External power supply unit for the pressure measuring platform • USB cable • zebris application software Animal Analysis Suite • Windows-compatible computer or notebook • Cable guard with screws • User manual for CanidGait ®...
Page 12 2030 x 560 mm (L x W) Number of sensors 64 x 240 / 15360 1/3“ resp. 1,38 Sensors / cm² Resolution Measuring frequency 100 Hz / optional 200 Hz ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 12/44...
Page 13 REF-Nr. 01543191 Platform REF-No. 01244231 Sensor Area / cm 163 x 41 Number of Sensors 48 x 192 / 9216 Resolution 1,38 Sensoren /cm Sampling Frequency 100 Hz ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 13/44...
Page 14 01543191 Platform REF-No. 01244231 Sensor Area / cm 163 x 41 Number of Sensors 48 x 192 / 9216 Resolution 1,38 Sensors / cm Sampling Frequency 200 Hz ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 14/44...
Page 15 Schiebe- register register Burstgenerator, Ansteuerlogik Programm- daten Gleichrichter, Verstärker, CPU-internes 8-Bit ADC Flash Datenbus Optokoppler & Galvanische Trennung mit Kalibrierdaten Gleichrichter Kalibrier- Flash externes AC-Netzteil entspricht IEC 601 ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 15/44...
Page 16 A measurement is in process. orange / green flashing A measurement is in process and infrared synchronization sig- nals (from other zebris devices) are received. The orange flash- ing signalizes that valid synchronization signals are received. ® zebris Medical GmbH...
Page 17 MEASURE lights up during the measurement. lights up when the USB socket is connected to the PC and the hardware driver of the platform is installed properly. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 17/44...
Page 18 3.6 zebris SYNC ® The zebris SYNC is the standard solution for synchronization of the CanidGait system with third party measuring devices. The SYNC-IN and SYNC-OUT sockets provide input and output for support of „sample by sample“ In- and Out synchronization. Both sockets provide galvanic protection between third ®...
Page 19 Socket Coding: 30° Socket, Front Side Suitable Plug for SYNC-IN: LEMO-Part-No.: FGA.00 303.CLADxxxx Plug Coding: 30° View Plug, Solder Side Pin Assignment Pin 1 Clk_IN Pin 2 Activ_IN Pin 3 ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 19/44...
Page 20 Socket, Front Side Suitable Plug for SYNC-OUT LEMO-Part-No.: FGG.00 304.CLADxxxx View Plug Coding: 0° Plug, Solder Side Pin-Assignment Pin 1 +5 V Pin 2 Pin 3 Activ_OUT Pin 4 Clk_OUT ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 20/44...
Page 21 Be sure to position both platforms as shown below when connecting them for doubling the walking range. NOTE When using the zebris SYNCCam with two combinded plattforms it must be connected to the “Sync Audio” input of the master platform. NOTE ®...
Page 22 Data connection of measuring platform and Length 5 m 21030073 USB2.0 Extension cable A male /A female Length 5m 07200011 zebris Animal Analysis Suite for operating system Windows 11 Pro 3.8 Spare Parts CanidGait ® Treadmill System REF-No. Description Illustrations...
Page 23 3.5 mm 21030312 Video Sync-Control Extension Cable Length 5 m, phone jack & socket 3.5 mm 33102232 Power Supply Mascot 3721 SYNCLightCam Meets requirements of EN 60601-1 & UL ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 23/44...
Page 24 The CanidGait system can capture data simultaneously with up to 2 video cameras. For this purpose, the zebris SYNCCam is available as an accessory. Alternatively, high-quality DV-camcorders with an external microphone socket can be used for video capture. To capture video data synchronized with pressure data the camera has to be connected to the galvanically isolated SYNC Audio resp.
Page 25 4.1.2 Connection scheme SYNCCam/ SYNCCam HS ® FDM2 CanidGait platform ® CanidGait Treadmill ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 25/44...
Page 26 4.1.3 Connection scheme SYNCLightCam ® FDM2 CanidGait platform ® CanidGait Treadmill ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 26/44...
Page 27 PC by a USB cable of type A-B included within the shipment. The camera is equipped with ¼ inch tripod threads and can be adapted to zebris tripods as wells as commercially available camera tripods.
Page 28 The camera is connected to the PC by a USB cable of type A-C included within the shipment. The camera is equipped with one ¼ inch tripod thread and can be adapted to zebris tripods as wells as commercially available camera tripods.
Page 29 VIDEO SYNC Wired synchronization with special synchronization cable included in the scope of delivery Infrared Synchronization via infrared signal without synchronization cable (not com- patible with every zebris pressure platform). Cannot be used with the IR interface for zebris EMG. Interpretation of the STATUS-LED Green USB connected and infrared connection available.
Page 30 PC by a USB cable of type A-B included within the shipment. The SYNCLightCam is equipped with ¼ inch tripod threads and can be adapted to zebris tripods as wells as commercially available camera tripods.
Page 31 Adjustment Switch To maintain undisturbed transmission of the video signal it is manda- tory to use high quality USB cables. Please, only use cables supplied or recommended by zebris for con- NOTE necting SYNCCam and PC. ® zebris Medical GmbH...
Page 32 Mains Lead Plug Adapter SYNC-Modus Modes Characteristics Pin Assignment VIDEO ESD - protected, voltage reversal proof input SYNC IN Input resistance: 38 k (AC) Signal-Level: Trigger Level: 15 mV ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 32/44...
Page 33 For the connection of the FDM platform with the mains, connect the power supply with the mains socket and the power socket in the cable socket at the bottom. Exclusively use the power supply unit approved by zebris for the op- eration of the FDM platform, which is suitable for the power supply of your platform.
Page 34 USB cable. Your measuring system is now ready for use. The control of a measurement exclusively is carried out via the zebris Animal Analysis software. Therefore, please carefully read the zebris AAS software user manual.
Page 35 CanidGait measuring system. ® All cable connections of the CanidGait sensor are integrated in the interface box, which is positioned on the underside of the treadmill frame. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 35/44...
Page 36 ® For operating the CanidGait sensor, exclusively use the power adapter approved by zebris, which is suitable for the power supply of ® all CanidGait systems. WARNING 5.3 Power supply of the sensor...
Page 37 For this purpose, run the cables using cable protections or if necessary, fasten the cables with adhesive WARNING tape to the floor. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual Page 37/44...
Page 38 The requirements for the PC are specified in the user manual of the Animal Analysis Suite software.
Page 39 Please find information on the installation in the user manual of the Animal Analysis Suite software. Please make sure that you have installed the zebris software before ® connecting the CanidGait sensor to the computer using the USB cable.
Page 40 Medical GmbH or a person who has been explicitly authorized by zebris to do • Be sure to switch off the measuring system and disconnect it from mains supply before starting any maintenance work.
Page 41 ® sensor as low as pos- sible, the system must be lubricated at regular intervals with silicone oil. zebris recom- mends lubricating at least every 6 months. For detailed information concerning the lubri- cation procedure please refer to the user manual of the treadmill manufacturer.
Page 42 NOTE Whenever faults occur or in case of doubt, the manufacturer or sales partner authorized by zebris must always be contacted. ® zebris Medical GmbH CanidGait Technical Specifications and User Manual...
Page 43 ✓ Are all the other components of the measuring system (infrared synchronization with zebris DAB Bluetooth, video camera) connected correctly? For additional information on error messages and their troubleshoot- ing, please refer to the user manual for the Animal Analysis Suite software.
Page 44 WARNING 6.6 Disposal 6.6.1 Packaging All the transport packaging supplied by zebris can be recycled within Germany via the local recycling depots. In order to guarantee the re-use of the recyclables contained in the packaging, zebris Medical GmbH par- ticipates in the Dual System ZENTEK which takes over the proper dis- posal of the packaging.
